SERVICE MANUAL
WM-FX855
SUPPLEMENT-1
File this supplement with the service manual.
E Model
Tourist Model
Subject:
1.No interchangeability of motors due to change of mechanism deck
2.Caution when installing a new motor
1.No interchangeability of motors due to change of mechanism deck

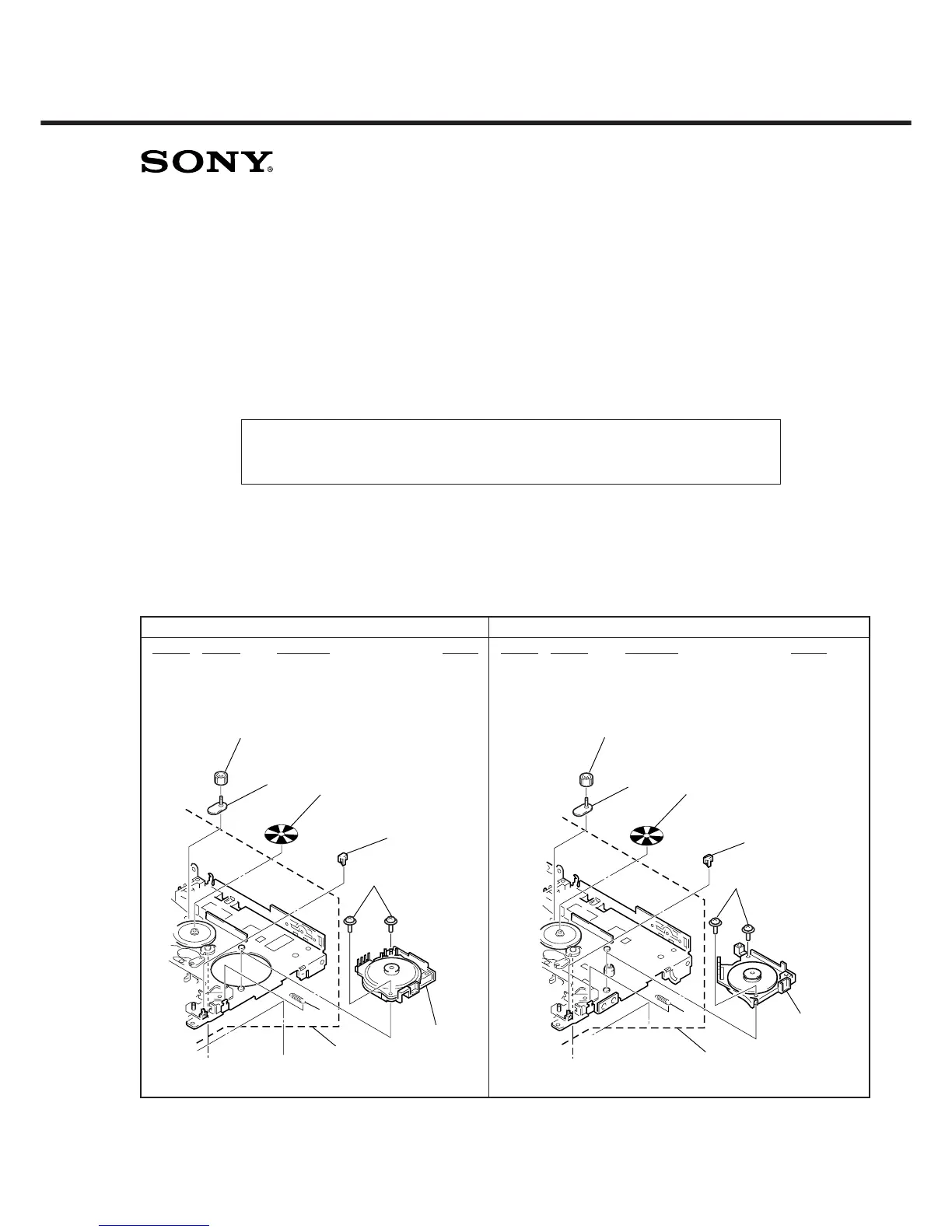

(3)MECHANISM DECK SECTION (Service Manual Page 36)
(MT-WMEX655-125)
! : Modificated portion.
(ECN-WM800635)
Former New
Ref. No. Part No. Description Remark
122 X-3374-094-1CHASSIS (S) ASSY (Y)
M9011-698-885-11MOTOR (REEL/CAPSTAN)
Ref. No. Part No. Description Remark
122 X-3374-420-1CHASSIS (S) ASSY (M)
M901X-3376-217-1MOTOR ASSY (REEL/CAPSTAN)
117
118
119
120
121
M901
122
123
118
119
120
121
M901
122
123
117
$
$
^
^
Caution: Old and new motors are not interchangeable, and therefore install proper motor according to the mechanism deck used when
replacing the motor.
