– 4 –

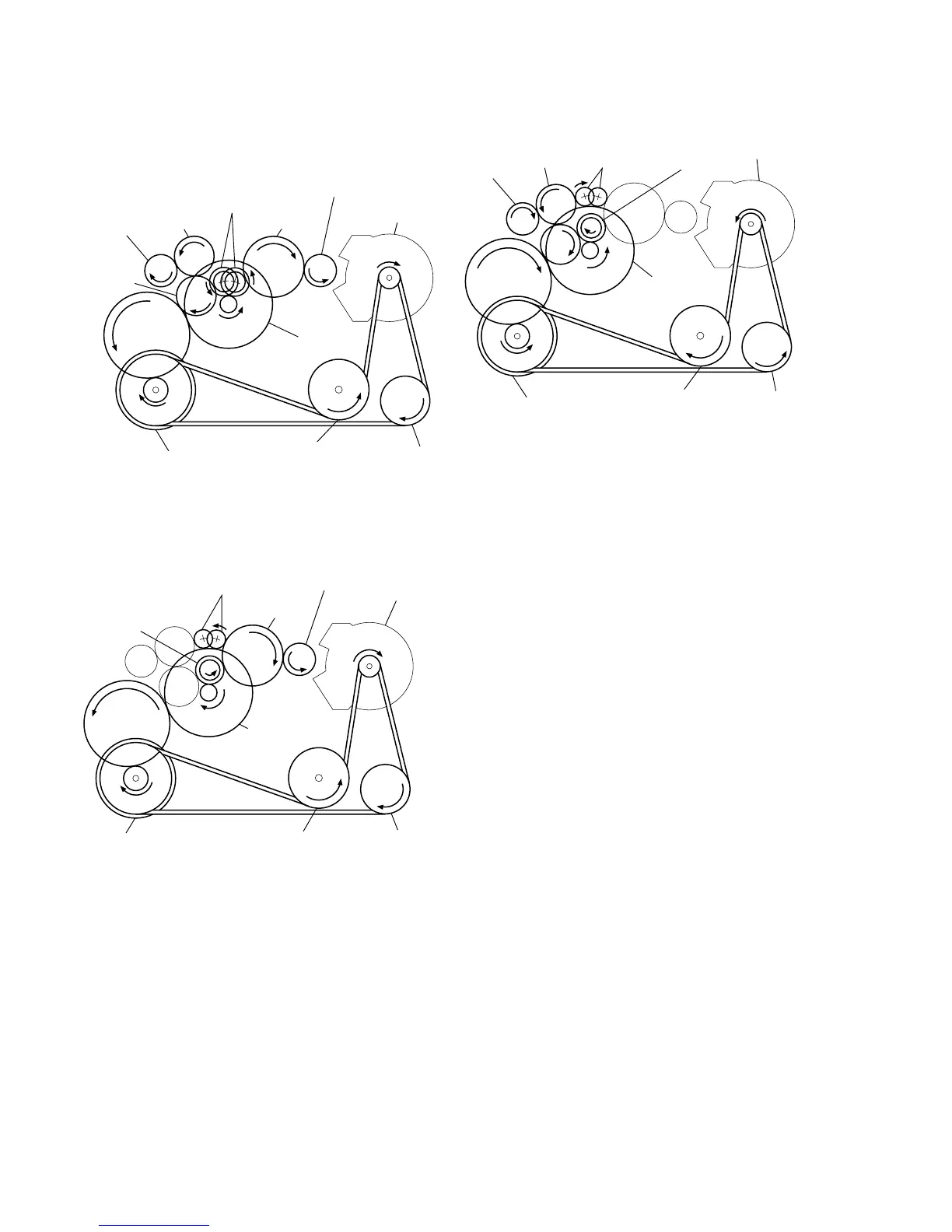

Rotation system
Rotation system during PLAY.
gear (REEL)
(T side)
gear (TB)
gear (S)
clutch ass’y (M)
gear (Y)
gear (TA)
pulley (reverse)
flywheel (R) ass’y
flywheel (N) ass’y
gear (REEL)
(S side)
motor pulley
gear (NR)
(REW: right side/
FWD: left side)
Rotation system during FF.
gear (TB)
gear (FR)
(FF: left side)
gear (NR)
clutch ass’y (M)
motor pulley
pulley (reverse)
flywheel (R) ass’y
flywheel (N) ass’y
gear (Y)
gear (REEL)
(T side)
Rotation system during REW.
gear (NR)
gear (FR)
(REW: right side)
gear (REEL)
(S side)
gear (S)
motor pulley
clutch ass’y (M)
pulley (reverse
)
flywheel (R) ass’y
flywheel (N) ass’y
gear (Y)
