– 41 –
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
G : German
SE : South European
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

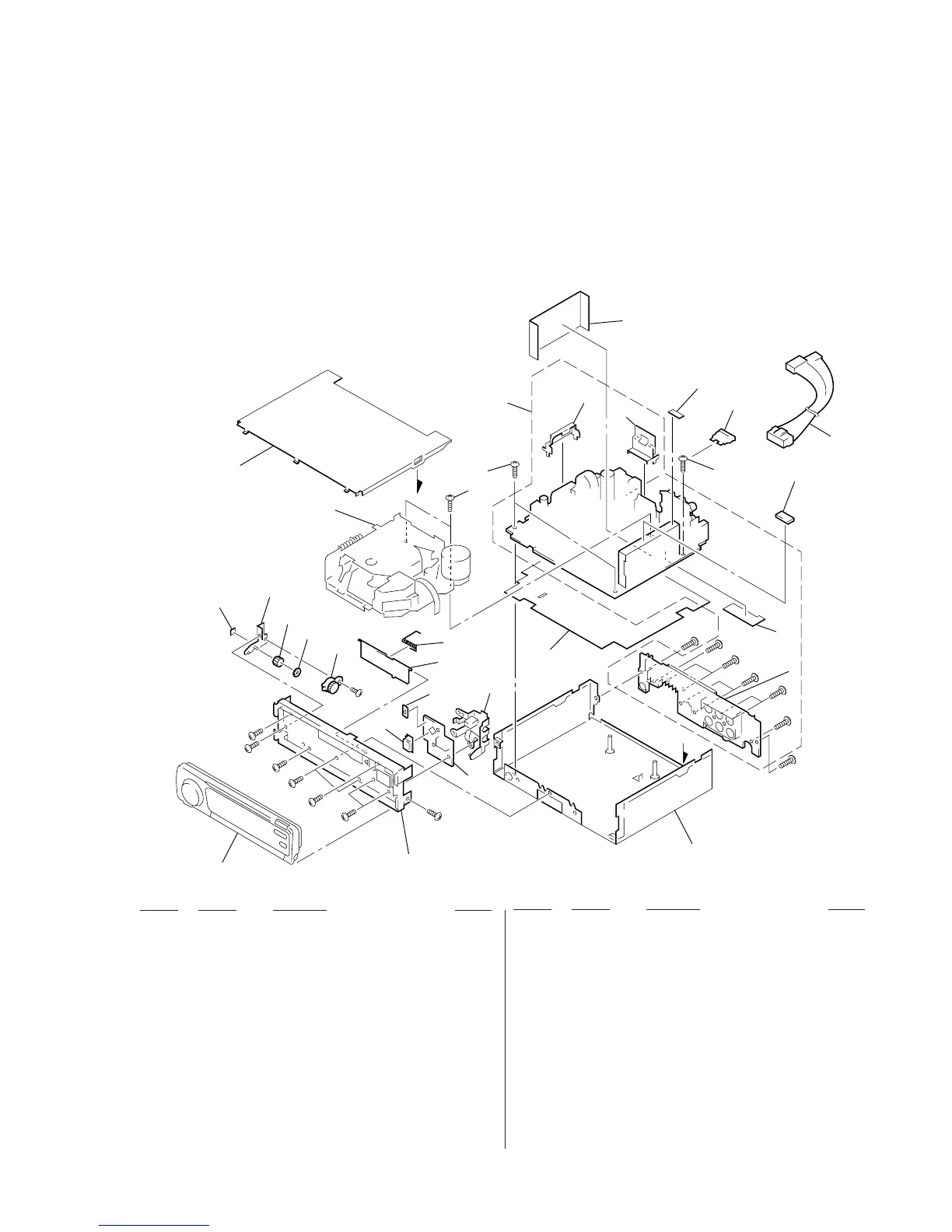

(1) CHASSIS SECTION
MG-25D-136
#3
#3
#3
#3
#1
#1
#1
#2
#3
#3
#3
#3
#3
#3
#3
F901
A
A
5
24
23
22
21
20
19
26
1
3
4
18
1716
15
14
13
12
11
10
9
8
7
6
15
2
Front panel ass’y
25
* 1 X-3374-008-1 COVER ASSY
2 1-776-527-41 CORD (WITH CONNECTOR) (ISO) (POWER)
3 3-919-171-01 SCREW (2.6X6) (C TIGHT)
4 X-3373-376-1 BRACKET (GEAR) ASSY
5 3-011-170-01 GEAR (HOLDER)
6 3-341-752-11 WASHER, POLYETHYLENE
7 3-953-235-31 DAMPER, OIL
8 3-913-076-01 SPRING (C DOOR), TORSION
9 3-010-993-11 PLATE (C DOOR), LIGHT GUIDE
10 3-010-996-01 BUTTON (EJECT) (6)
* 11 1-665-379-11 SUB BOARD
12 X-3373-831-1 LOCK ASSY
13 X-3375-258-1 PANEL SUB ASSY, SUB
* 14 3-355-209-01 PLATE (B), GROUND
15 3-915-923-01 SCREW, GROUND POINT
* 16 A-3313-600-A MAIN BOARD, COMPLETE (AEP, UK, SE)
* 16 A-3313-610-A MAIN BOARD, COMPLETE (G)
* 17 3-011-078-01 BRACKET (POWER IC)
* 18 3-011-090-01 BRACKET (AMP)
* 19 3-011-077-11 HEAT SINK
* 20 3-012-196-01 INSULATOR
* 21 X-3373-877-3 CHASSIS ASSY
22 3-918-583-51 DOOR, CASSETTE
23 3-338-263-01 CUSHION (U)
24 3-015-291-01 SPACER (GEAR)
* 25 3-024-272-01 PLATE (TUNER), SHIELD
* 26 3-024-273-01 PLATE (MAIN), SHIELD
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
To Next Page
