– 42 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-010-985-11 BUTTON (+) (+ + ))
52 3-010-986-11 BUTTON (MODE) (*)
53 3-010-987-11 BUTTON (–) (= 0 –)
54 X-3373-830-2 BUTTON (SOURCE) ASSY
55 3-010-989-12 KNOB (VOL)
56 3-010-983-41 BUTTON (OPEN)
57 3-010-997-01 SPRING (OPEN)
58 3-010-982-01 BUTTON (SOUND)
59 3-010-981-01 BUTTON (OFF)
60 3-010-980-01 BUTTON (10 KEY)
(SHIFT. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10)
61 3-011-459-01 BUTTON (PTY) (DSPL/PTY)
* 62 3-023-221-01 ILLUMINATOR (LCD)
* 63 3-023-162-01 PLATE (LCD), LIGHT GUIDE
* 64 3-023-163-01 HOLDER (LCD)
65 3-010-998-01 SPRING (BEARING)
66 3-010-999-11 BEARING (L)
67 3-011-000-11 BEARING (R)
68 3-010-977-31 PANEL, FRONT BACK
69 X-3375-417-1 PANEL SUB ASSY, FRONT
70 3-015-290-01 SHEET (LCD), ELECTROSTATIC
71 3-011-004-01 BUTTON (AF/TA)
LCD701 1-801-679-21 DISPLAY PANEL, LIQUID CRYSTAL

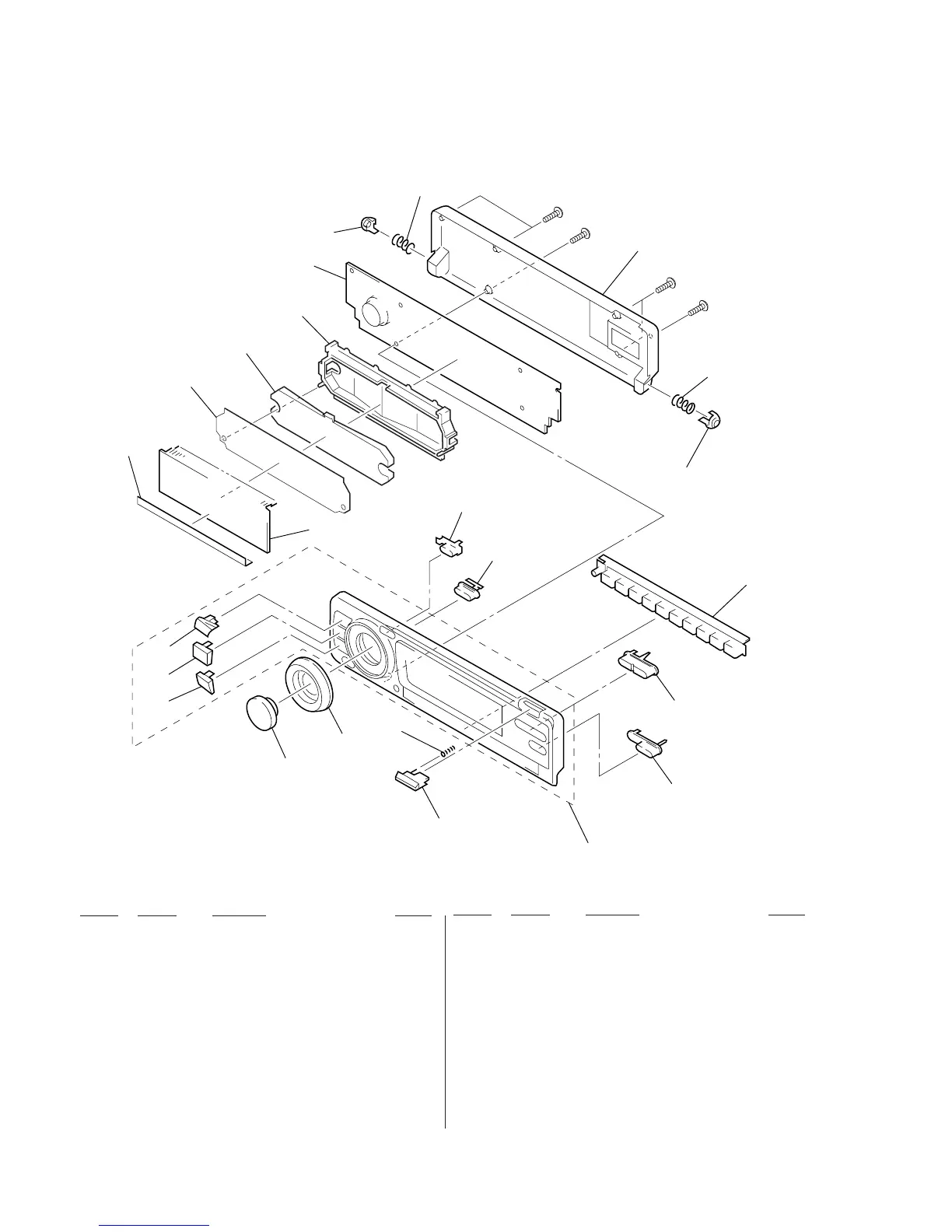

(2) FRONT PANEL SECTION
51
58
59
57
56
55
54
53
52
61
70
69
68
67
66
65
64
63
62
60
65
not supplied
(KEY board)
LCD701
#5
#5
#5
#5
71
