– 13 –

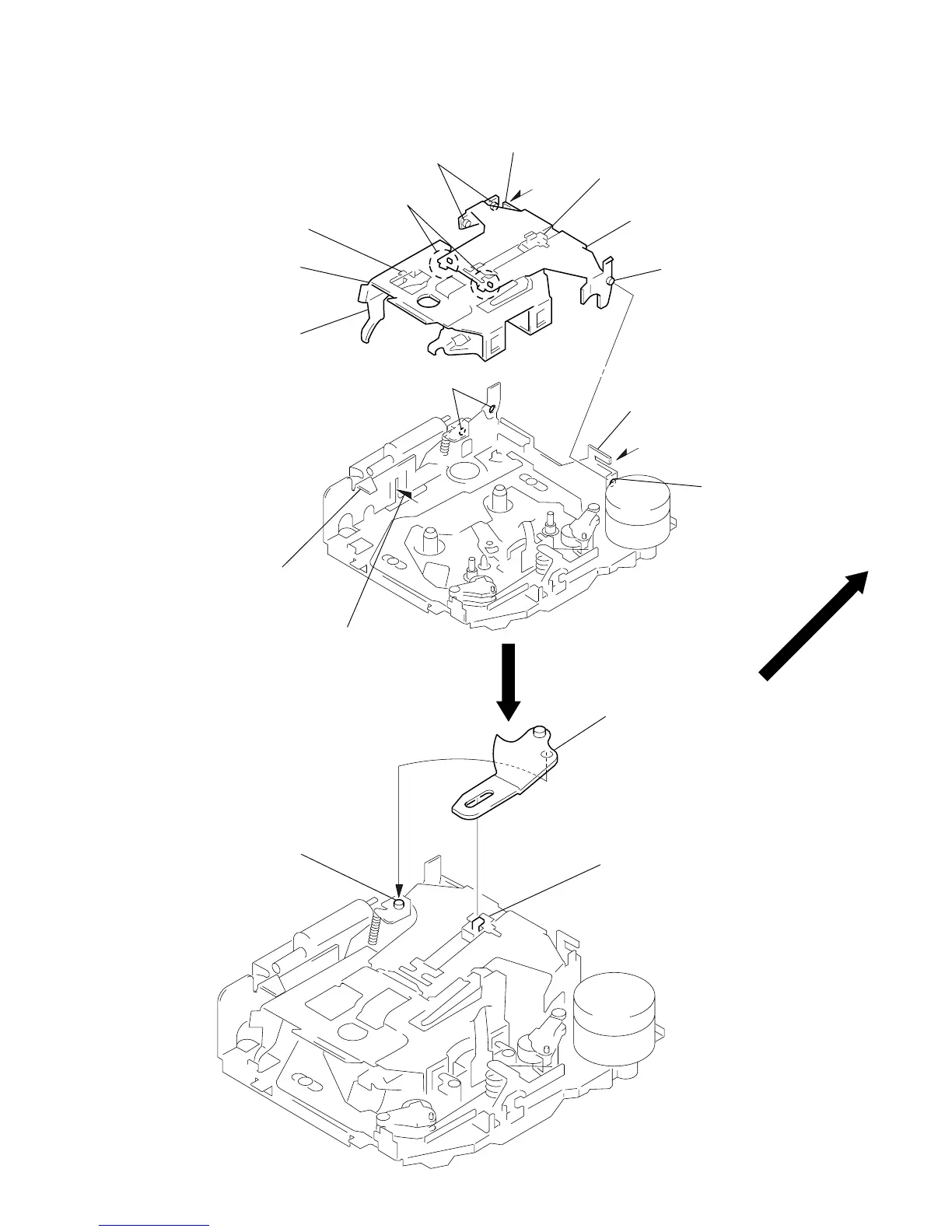

SECTION 3
ASSEMBLY OF MECHANISM DECK
HOUSING
ARM (SUCTION)
Note: Follow the assembly procedure in the numerical order given.
A
part
C
part
B
part
D
part
8
Hold the hanger by
bending the claw.
6
Fit projection on
D
part.
4
Fit claw on
B
part.
3
Put the housing
under
A
part.
5
Fit projection on
C
part.
1
Install the catch to the hanger.
2
Install the hanger onto
two claws of the housing.
7
Holder the hanger by bending the claw.
hanger
housing
2
Move the arm (suction) in the arrow
direction and fit on projection.
1
Fit the arm (suction) on the shaft.
projection
