Sophos SG 430 - Compliance and Hardware Overview; Operating Elements and Connections

2SG 430/450 Rev. 2
Operating Instructions
CE Labeling, FCC and Approvals
The SG 430/450 appliances comply with FCC Class A, CE, C-Tick, VCCI and UL.
Important Note: For computer systems to remain CE and FCC compliant, only CE
and FCC compliant parts may be used. Maintaining CE and FCC compliance also
requires proper cable and cabling techniques.

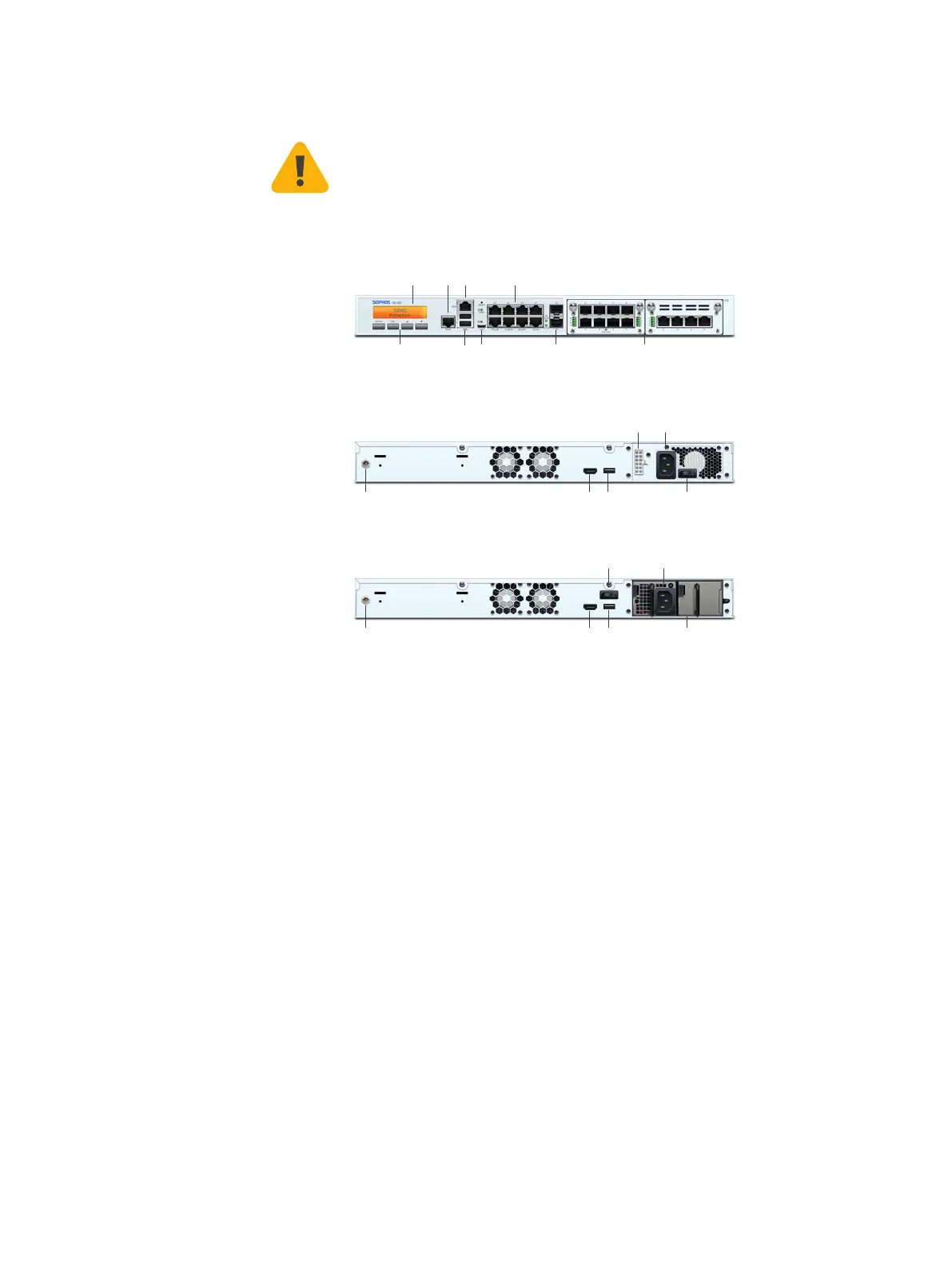

Operating Elements and Connections
SG 430/450 Rev. 2
*
1 x COM
(RJ45)
2 x
USB 3.0
8 x GbE copper – fixed.
Incl. 2 bypass pairs
(ports E0/1 and E2/3)
2 x expansion bay
(shown here with optional
FleXi Port module)
Micro USBNavigation
for LCD
Multi-function
LCD display
2 x GbE SFP+
– fixed
IPMI
MGMT
port
XG 430 Rev. 2
1 x
USB 3.0
Power supply
Power switch1 x
HDMI
Connector for
optional PoE Power
Connector for optional 2nd
external power supply
XG 450 Rev. 2
1 x
USB 3.0
Power supply
Space for optional 2nd hot
swappable power supply
1 x HDMIConnector for
optional PoE Power
Power switch
* The displayed front image is of SG 450 device. The SG 430 device may vary slightly.
