The charts below provide typical standard Set Points. As the specific gravity used on a level switch
changes, the Set Points will also change. These values are based on the specific gravity listed
and units with “B” trim and an A1 switch. For other materials or switches, please consult factory.
If a specific Set Point is needed, please use the “SC” option found in the accessories section of
this catalog.

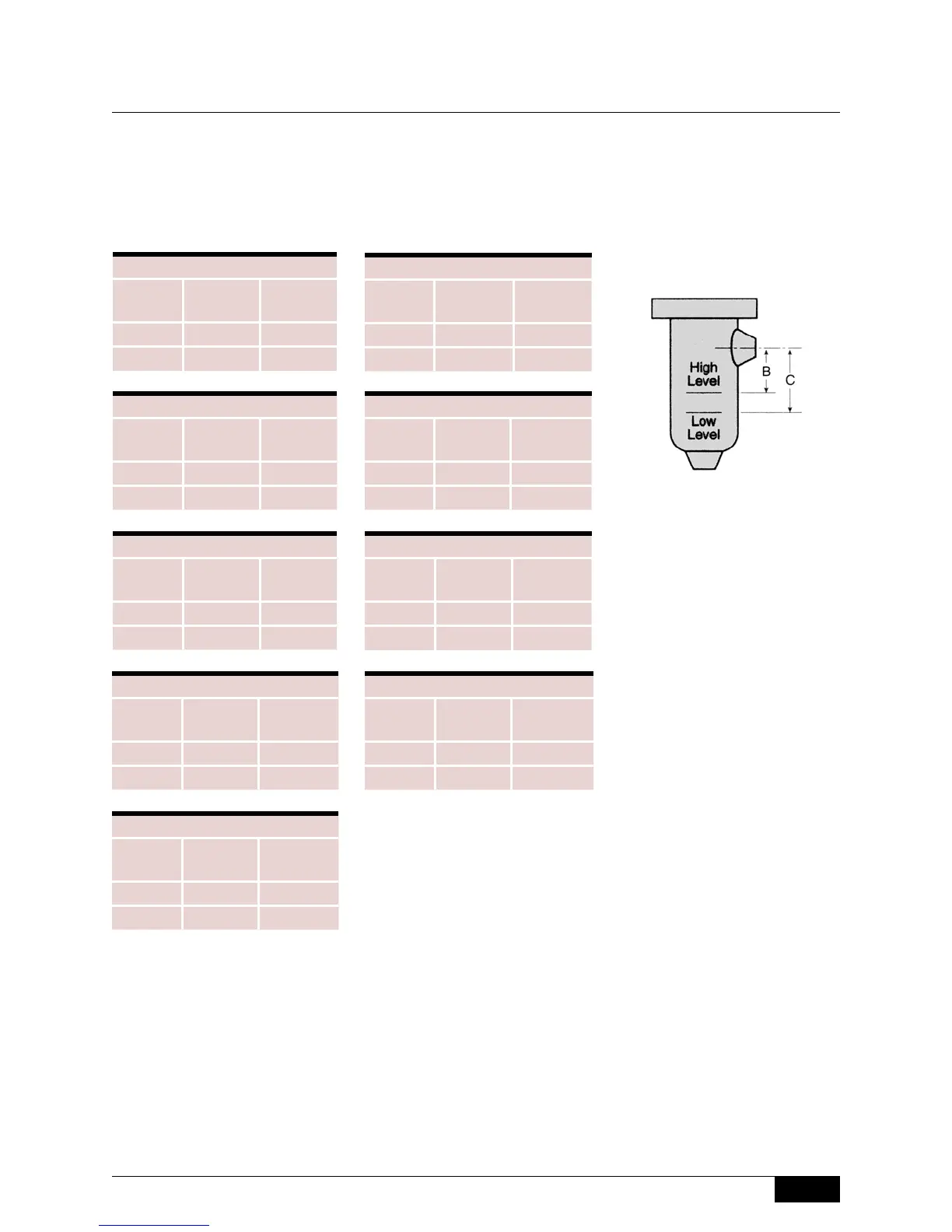

Calibration Dimensions
100 Series
Model 101
Specific
Gravity
“B” “C”
.52 3-1/4” 4-7/16”
1.0 5-1/4” 5-15/16”
Model 102
Specific
Gravity
“B” “C”
.62 2-3/4” 3-13/16”
1.0 4-7/16” 5-1/8”
Model 103
Specific
Gravity
“B” “C”
.51 3-1/4” 3-7/8”
1.0 4-13/16” 5-3/16”
Model 104
Specific
Gravity
“B” “C”
.62 3-3/8” 3-15/16”
1.0 4-5/8” 5”
Model 109
Specific
Gravity
“B” “C”
.38 4-3/4” 5-15/16”
1.0 7-1/4” 7-9/16”
Model 121
Specific
Gravity
“B” “C”
.66 2-11/16” 4-1/8”
1.0 3-13/16” 4-13/16”
Model 123
Specific
Gravity
“B” “C”
.93 2-7/8” 3-13/16”
1.0 3-3/16” 4-1/16”
Model 122
Specific
Gravity
“B” “C”
.66 2-1/2” 3-15/16”
1.0 3-5/8” 4-5/8”
Model 124
Specific
Gravity
“B” “C”
.94 2-7/8” 3-13/16”
1.0 3-1/8” 4”
