Registered Quality System to ISO 9001:2008
10/60
Form 912
sorinc.com
913-888-2630
Select chamber material from the following chart. Maximum working pressure in the chart on page 9
is based on the material selected here. Consult the factory for alternative materials.
101 A-A1C-B-A1-N4-CRTT
Select a process connection size, style and designator from the chart below. Consult the factory for
variations. Flanged process connections may reduce the maximum working pressure of the unit.
101 A-A1C-B-A1-N4-CRTT
101 A-A1C-B-A1-N4-CRTT
*Not available on Models 121 and 122.
Select the internal trim material from the chart below.
Consult the factory for pressure ratings on Monel trim.

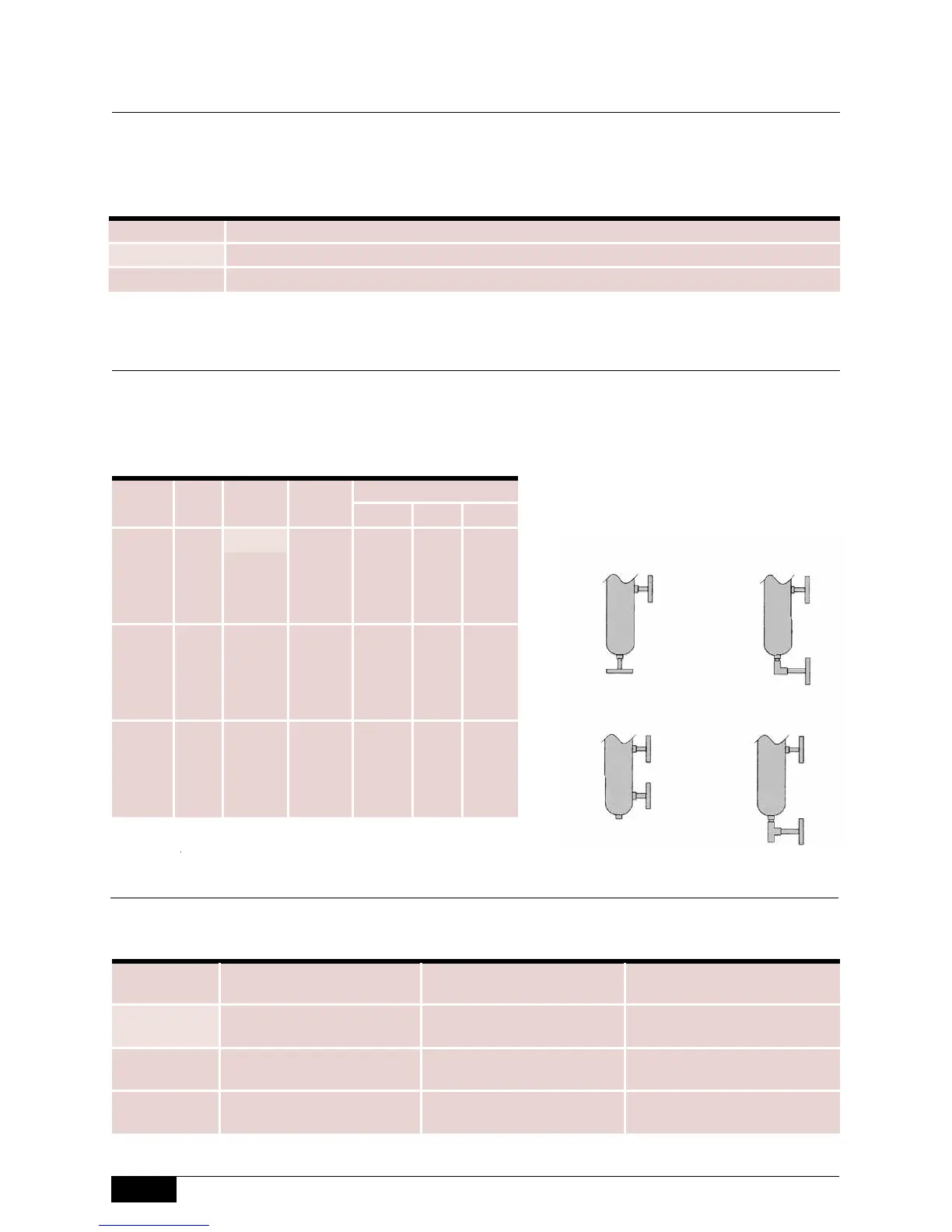

Step 2: Chamber Material
Step 3: Process Connection
Step 4: Trim Material
VH
(Vertical/Horizontal)
VV
(Vertical/Vertical)
VVD
(Vertical/Vertical/
Drain)
VVT
(Vertical/Vertical/
Tee Drain)
100 Series
Size Style
NPT
Thread
Socket
Weld
Flange
150# 300# 600#
1”
VH A1A A1B A1C A1D A1E
VV - - B1C B1D B1E
VVD C1A C1B C1C C1D C1E
VVT - - D1C D1D D1E
1-1/2”
VH A5A A5B A5C A5D A5E
VV - - B5C B5D B5E
VVD C5A C5B C5C C5D C5E
VVT - - D5C D5D D5E
2”
VH A2A* A2B* A2C A2D A2E
VV - - B2C B2D B2E
VVD C2A* C2B* C2C C2D C2E
VVT - - D2C D2D D2E
Designator Material
A A106 Grade B Carbon Steel with A105 and A234-WPB fittings
C A312-TP316/316L Stainless Steel with A182-316/316L and A403-316/316L fittings
Designator Float Material Attraction Sleeve
Available with
Chamber Material:
B 316/316L Stainless Steel 400 Stainless Steel A106 Carbon Steel (A) only
C 316/316L Stainless Steel 316/316L Stainless Steel
A106 Carbon Steel (A) or
316/316L Stainless Steel (C)
M Monel 400 Monel 400
A106 Carbon Steel (A) or
316/316L Stainless Steel (C)
