Registered Quality System to ISO 9001:2008
21/60
Form 912
sorinc.com
913-888-2630
Select the internal trim material from the chart below. Consult the factory for pressure ratings on
Monel trim.
301 A-F1A-B-A1-N4-CRTT
Step 4: Trim Material
301 A-F1A-B-A1-N4-CRTT
Select a process connection, size and designator from the chart below. Consult the factory for
variations. Flanged process connections may reduce the maximum working pressure of the unit.
Note: It is important to consider the installation configuration when selecting the process
connection. Be sure that the float will fit through the process connection, or that the vessel has
access to attach the float from inside the vessel after instrument installation. See page 26 for float
dimensions.

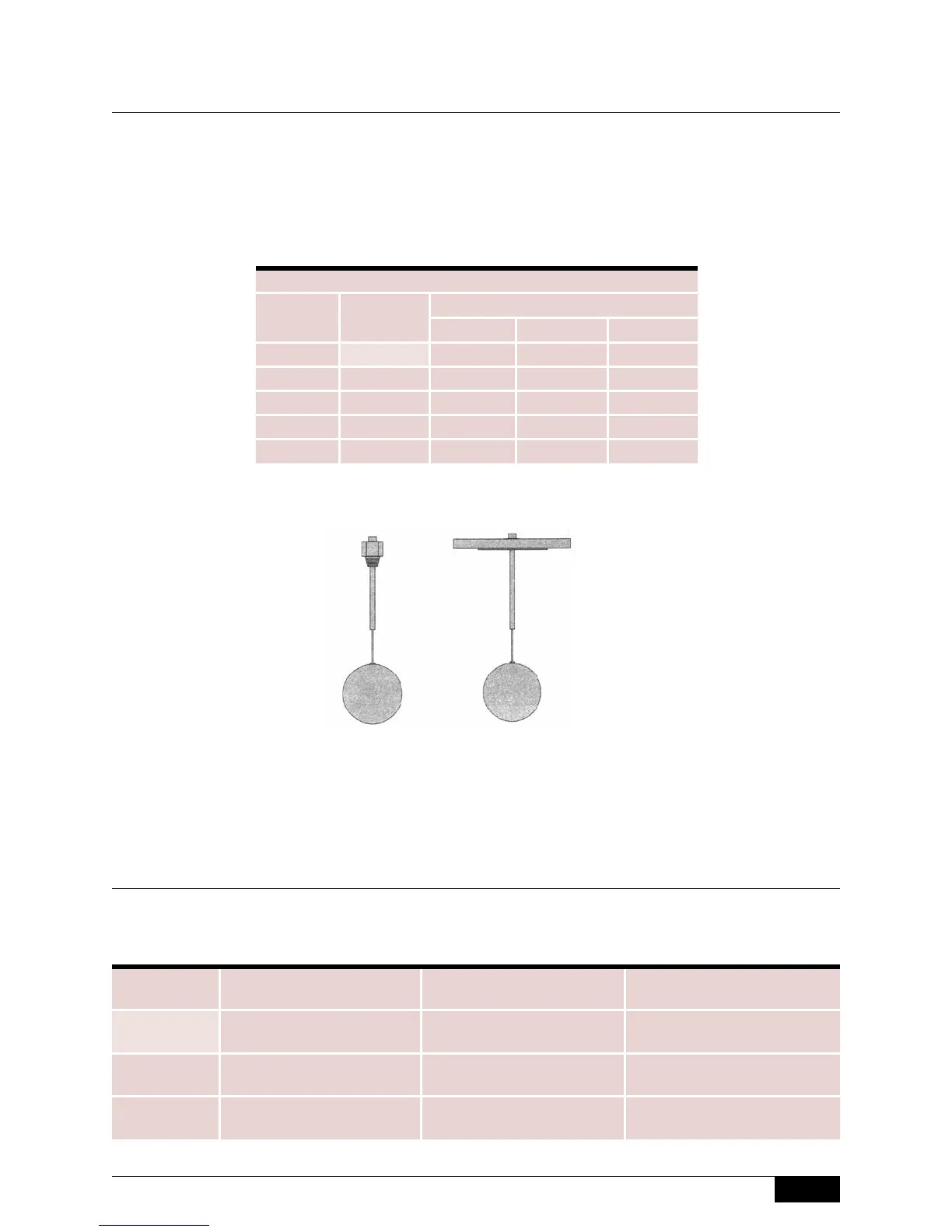

NPT Mounting Flange Mounting
Step 3: Process Connection
300 Series
Designator Float Material Attraction Sleeve
Available with
Chamber Material:
B 316/316L Stainless Steel 400 Stainless Steel A106 Carbon Steel (A) only
C 316/316L Stainless Steel 316/316L Stainless Steel
A106 Carbon Steel (A) or
316/316L Stainless Steel (C)
M Monel 400 Monel 400
A106 Carbon Steel (A) or
316/316L Stainless Steel (C)
Select Designator
Size
NPT
Thread
Flange
150# 300# 600#
1” F1A - - -
2” F2A - - -
3” F3A F3C F3D F3E
4” - F4C F4D F4E
6” - F6C F6D F6E
