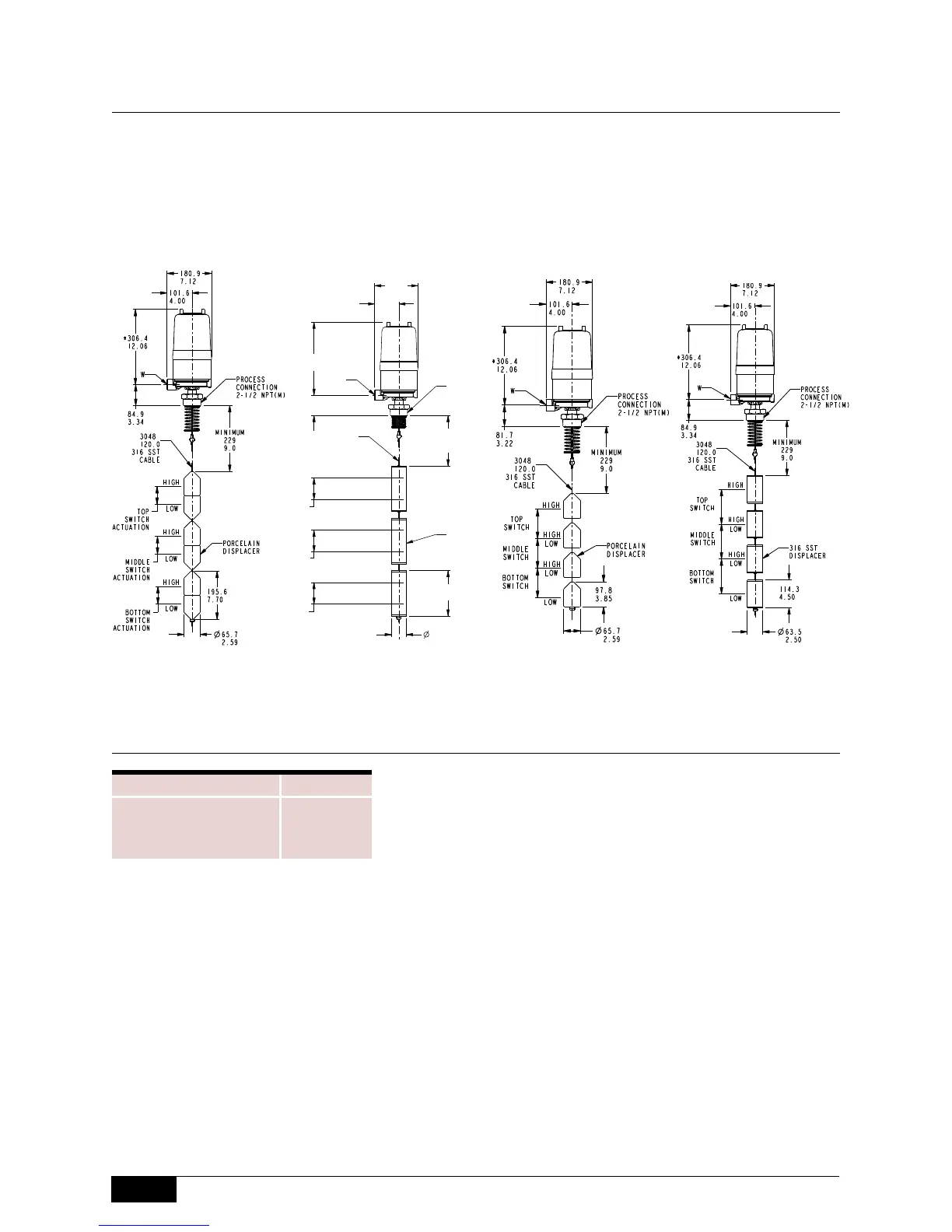

Dimensions
Model 750/752
2-1/2” NPT/Flanged
Model 755/757
2-1/2” NPT/Flanged
Model 754/756
2-1/2” NPT/Flanged
Model 751/753
2-1/2” NPT/Flanged
* Minimum 8-3/4’’ (222 mm) overhead clearance required to remove housing cover.
Dimensions in this catalog are for reference only. They may be changed without notice. Contact the
factory for certified drawings for a particular model number. Dimensions are expressed as millimeters
over inches. (Linear = mm/in.)
750 Series
Drawing 0390681 Drawing 0390682 Drawing 0390683 Drawing 0390684
** See Switch Housing
section (Page 48).
Housing** W
Explosion Proof
General Purpose
Explosion Proof
B5
N1
N8
1” NPT
ISO-9001
14685 W 105TH ST LENEXA, KS 66215 USA
913-888-2630
SORINC.COM
63.5
2.50
190.5
7.50
*306.4
12.06
101.6
4.00
180.9
7.12
MINIMUM
229
9.0
TOP
SWITCH
ACTUATION
MIDDLE
SWITCH
ACTUATION
BOTTOM
SWITCH
ACTUATION
D
63.5
2.50
190.5
7.50
180.9
7.12
101.6
4.00
*306.4
12.06
C
MINIMUM
229
9.0
TOP
SWITCH
ACTUATION
MIDDLE
SWITCH
ACTUATION
BOTTOM
SWITCH
ACTUATION
NPT A
FLANGE B
DIMENSION C SEE CHART
DIMENSION D SEE CHART
ELECTRICAL CONNECTION W
DIMENSION C
SIZE
FLANGE
150 # 300 # 600 #
3"
62.7
2.47
67.6
2.66
70.6
2.78
4"
62.7
2.47
70.6
2.78
77.0
3.03
6"
64.3
2.53
75.4
2.97
86.6
3.41
DIMENSION D
2-1/2 NPTM
84.9
3.34
3 NPTM
87.9
3.46
222.3
* MINIMUM OVERHEAD CLEARANCE
8.75
REQUIRED TO REMOVE HOUSING COVER
Model Name: 0390682.ASSEM/2/0
PRODUCT CERTIFICATION DRAWING
ALL DIMENSIONS ARE ±1/16 IN
UNLESS OTHERWISE SPECIFIED
MM
LINEAR =
IN
DRAWN BY
K MITCHELL
CHECKED BY
J REHM
ENGINEER APPROVAL
R SAVERINO
DATE
27 JUL 2011
THIS DRAWING IS THE EXCLUSIVE PROPERTY OF SOR.
NO USE WHATSOEVER OF THE INFORMATION CONTAINED
HEREON, NOR REPRODUCTION IN WHOLE OR PART MAY BE
MADE WITHOUT THE EXPRESS WRITTEN PERMISSION OF SOR.
TITLE
DIMENSION DRAWING 751, 753
NARROW DIFFERENTIAL
EO NUMBER: 5123
SCALE: 0.15
DO NOT SCALE PRINT
DRAWING NUMBER REV
0390682 3
SHEET 1 OF 1
DWG SIZE
B
MODEL # SALES ORDER # LINE ITEM # PURCHASE ORDER #
SALES PAGE
W
PROCESS
CONNECTION
NPT A
MODEL 751
SCALE 0.15
3048
120.0
316 SST
CABLE
HIGH
LOW
HIGH
LOW
HIGH
LOW
316 SST
DISPLACER
W
PROCESS
CONNECTION
FLANGE B
MODEL 753
SCALE 0.15
3048
120.0
316 SST
CABLE
HIGH
LOW
HIGH
LOW
HIGH
LOW
316 SST
DISPLACER
1
