Sorel STDC V3 - Terminal Connection Diagrams; Solar with Storage Tank Wiring; Solar with Swimming Pool Wiring

14

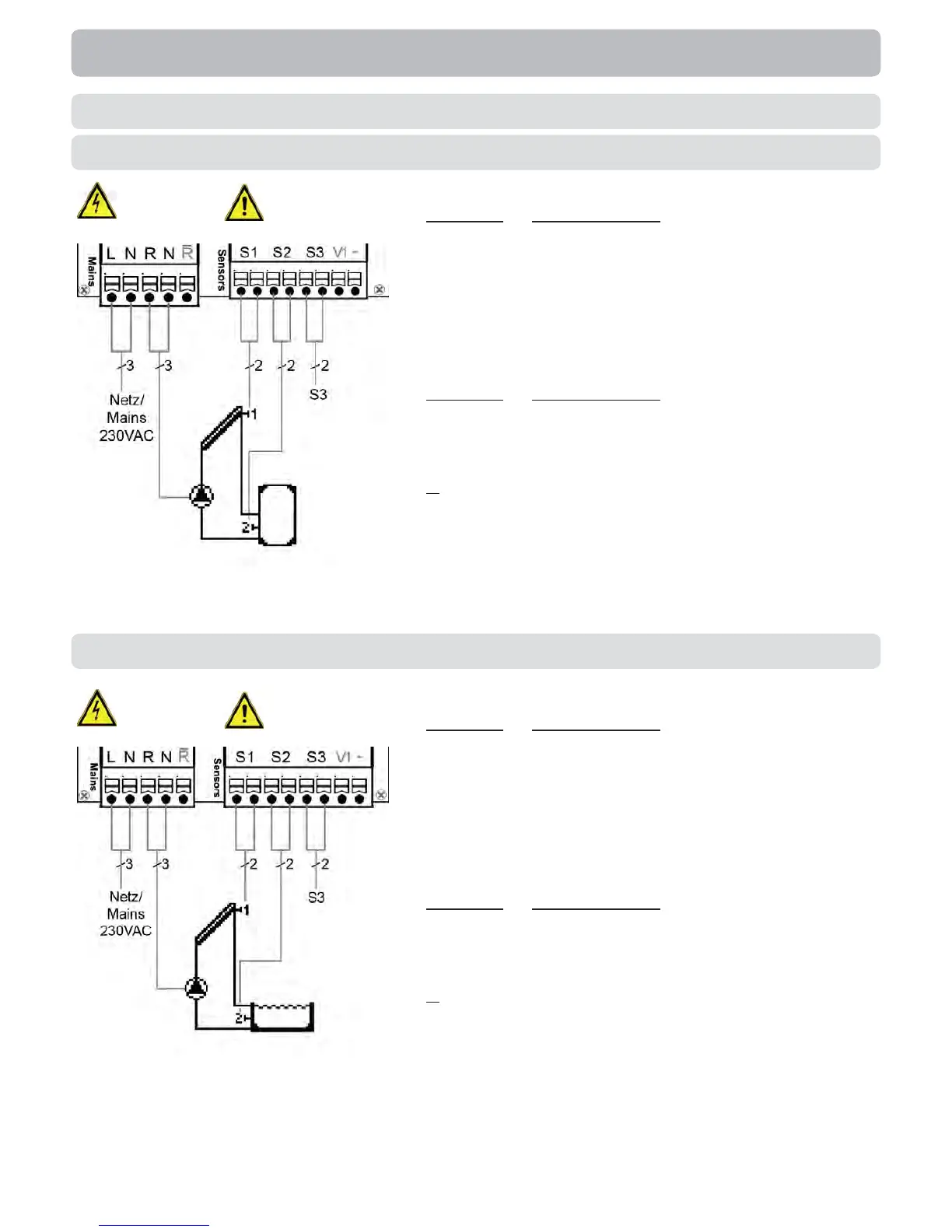

D Terminal connection diagrams
D.1 Solar with storage tank
D.2 Solar with swimming pool
Low voltage max. 12VAC/DC connection
Terminal: Connection for:
S1 (2x) Sensor 1 collector
S2 (2x) Sensor 2 Storage
S3 (2x) Sensor 3 (optional)
The polarity of the sensors S1-S3 is freely selectable.
V1 / - 0-10V or PWM +/- (STDC Version 3+4)
Mains voltages 230 VAC 50-60Hz
Terminal: Connection for:
L Mains phase conductor L
N Mains neutral conductor N
R Pump phase conductor L
N Pump neutral conductor N
R
Break contact (STDC Version 1+3)
The PE protective conductor must be connected to
the PE metal terminal block!
Low voltage max. 12VAC/DC connection
Terminal: Connection for:
S1 (2x) Sensor 1 collector
S2 (2x) Sensor 2 pool
S3 (2x) Sensor 3 (optional)
The polarity of the sensors S1-S3 is freely selectable.
V1 / - 0-10V or PWM +/- (STDC Version 3+4)
Mains voltages 230 VAC 50-60Hz
Terminal: Connection for:
L Mains phase conductor L
N Mains neutral conductor N
R Pump phase conductor L
N Pump neutral conductor N
R
Break contact (STDC Version 1+3)
The PE protective conductor must be connected to
the PE metal terminal block!
Installation
Sensor side
max. 12V
Caution
Mains side
230 AC
Danger
Sensor side
max. 12V
Caution
Mains side
230 AC
Danger
