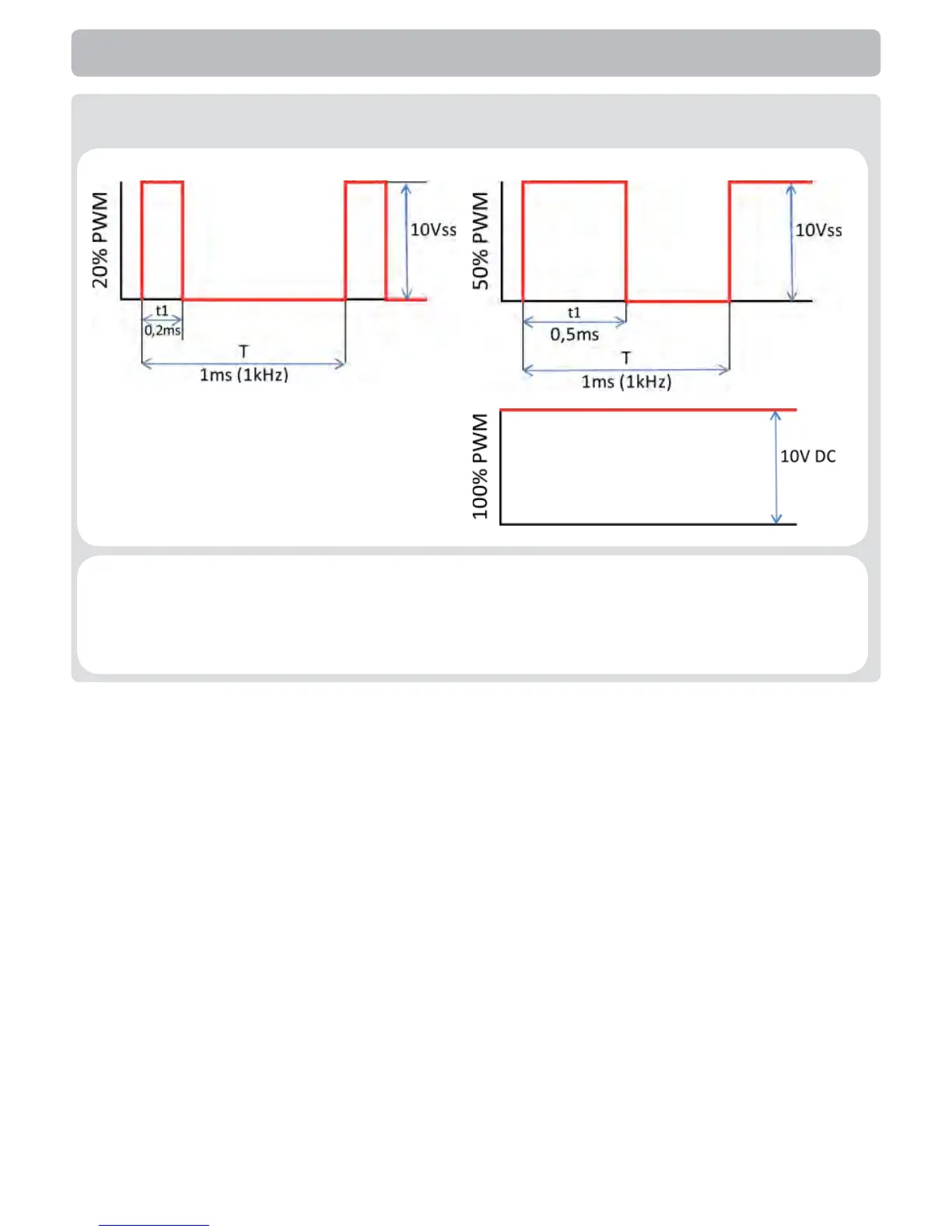

7.2.8.b Technical data PWM and 0-10V
PWM: 20% to 100%, 1kHz
Designed for a load of
10K Ohm
Technical data PWM:
Technical data 0-10V:
0-10V: 2V to 10V (20% to 100%)
Designed for a load of 10K Ohm.
10V = 100% Speed
5V = 50% Speed
2V = 20% Speed
0V = Off
