Sorel TDC 3 - Terminal Connection Diagrams

11
Installation
Low voltage max. 12VAC/DC connection
in the left-hand terminal compartment!
Terminal: Connection for:
S1 (2x) Sensor 1 collector
S2 (2x) Sensor 2 storage tank low
S3 (2x) Sensor 3 storage tank top
The polarity of the sensors is freely se-
lectable.
Mains voltages 230VAC 50-60Hz Con-
nection in the right-hand terminal com-
partment!
Terminal: Connection for:
L Mains phase conductor L
N Mains neutral conductor N
R1 Pump L (speed)
N Pump N
R2 Thermostat function L
N Thermostat function N
The PE protective conductor must be con-
nected to the PE metal terminal block!
Low voltage max. 12VAC/DC connection
in the left-hand terminal compartment!
Terminal: Connection for:
S1 (2x) Sensor 1 collector
S2 (2x) Sensor 2 storage tank
S3 (2x) Sensor 3 (optional)
The polarity of the sensors is freely se-
lectable.
Mains voltages 230VAC 50-60Hz Con-
nection in the right-hand terminal com-
partment!
Terminal: Connection for:
L Mains phase conductor L
N Mains neutral conductor N
R1 Pump L (speed)
N Pump N
R2 Pump L (no speed)
N Pump N
The PE protective conductor must be con-
nected to the PE metal terminal block!

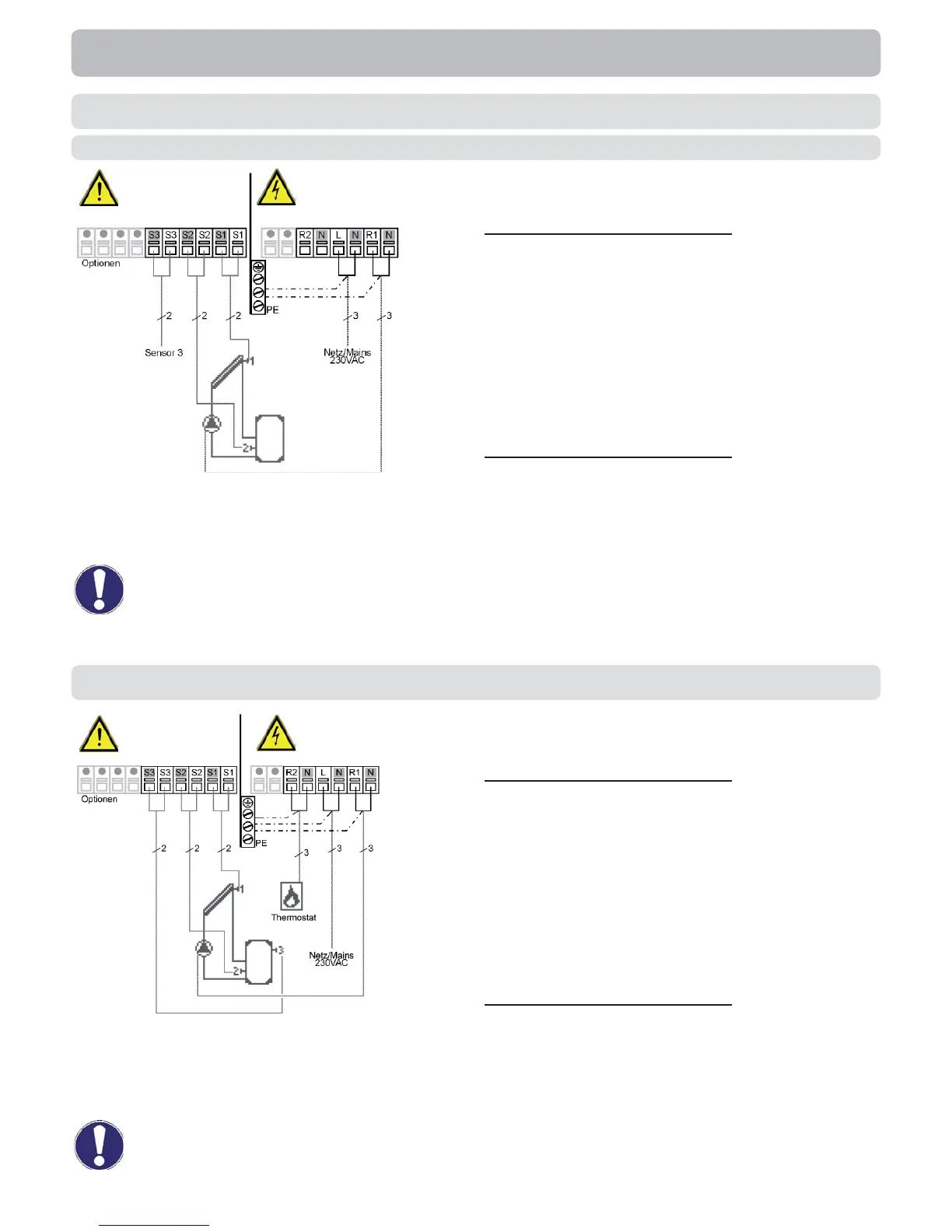

D Terminal connection diagrams
D.1 Solar with storage tank
Sensor side
max. 12V
Sensor side
max. 12V
Caution
Caution
Mains side
230VAC
2
2
2
2
2
Danger
Mains side
230VAC
2
2
2
2
2
Danger
D.2 Solar + Thermostat
Caution
Relay R1: For speed control of
standard pumps, minimum load
20VA
Relay R1: For speed control of
standard pumps, minimum load
20VA
Relay R1 and R2 are both switched on in
this variant, so e.g. a pump can be con-
nected to R2.
