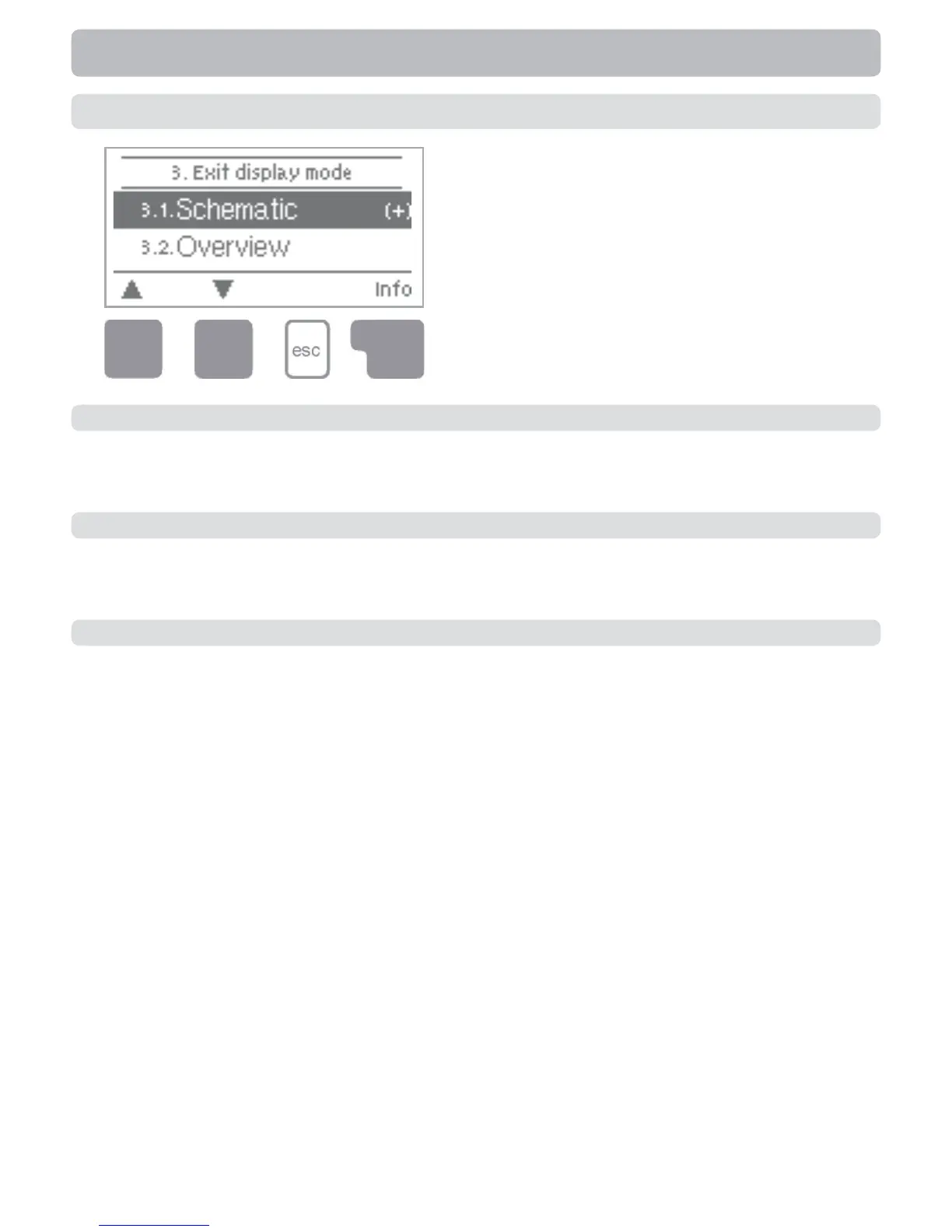

Menu “3. Display mode” is used to defi ne
the controller’s display for normal opera-
tion.
This display appears whenever two min-
utes go by without any key being pressed.
The main menu appears again when a
key is pressed.
The menu is closed by pressing “esc” or
selecting “Exit display mode”.
3.1 Schematic
In graphics mode, the selected hydraulic systems are depicted with the measured
temperatures and operating states of the connected consumers.
3.2 Overview
In overview mode, the measured temperatures and operating states of the connected
consumers are depicted in text form.
3.3 Alternating
In alternating mode the schematic mode and then the overview mode are active for 5
seconds at a time.
Display mode
3. Display mode
