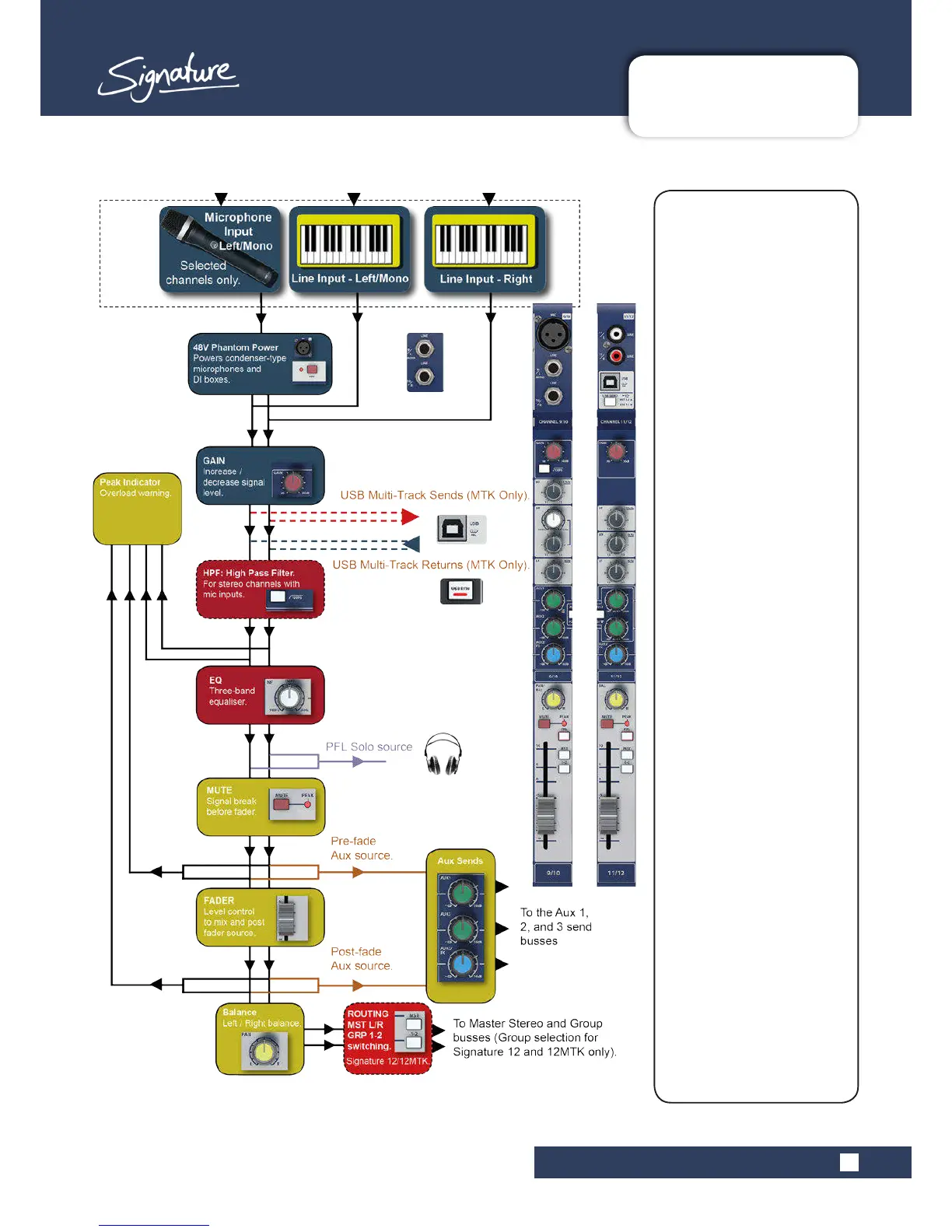

4.2: STEREO INPUT
CONSOLE ROUTING > STEREO INPUT
4.2: STEREO INPUT ROUTING
There are two types of
Stereo input channel.
The lower-numbered
stereo input channels
have microphone
inputs and Jack inputs
and can be used as
mono input channels
(odd-numbered input) if
required. On Signature
22 and 22MTK Stereo
channel 19/20 doesn’t
have a mic input.
The highest-numbered
Stereo input is a sum of
the line level R inputs
and the stereo USB
input (if present). This
is the playback channel
and works with the
INTERVAL MUTE
function for convenient
2-track playback
functionality.
Stereo input channels
have the same routing
options as mono input
channels. Aux bus
contributions from
stereo channels are
made from a sum of the
left and right signals.
Group bus contribu-
tions are balanced /
panned left and right
to the corresponding
odd-numbered and
even-numbered group
respectvely. In other
words - fully left would
be fully Group 1 or
Group 3.
