7.2: SIGNATURE 22MTK USB
USB > SIGNATURE 22MTK
7.2: SIGNATURE 22MTK USB

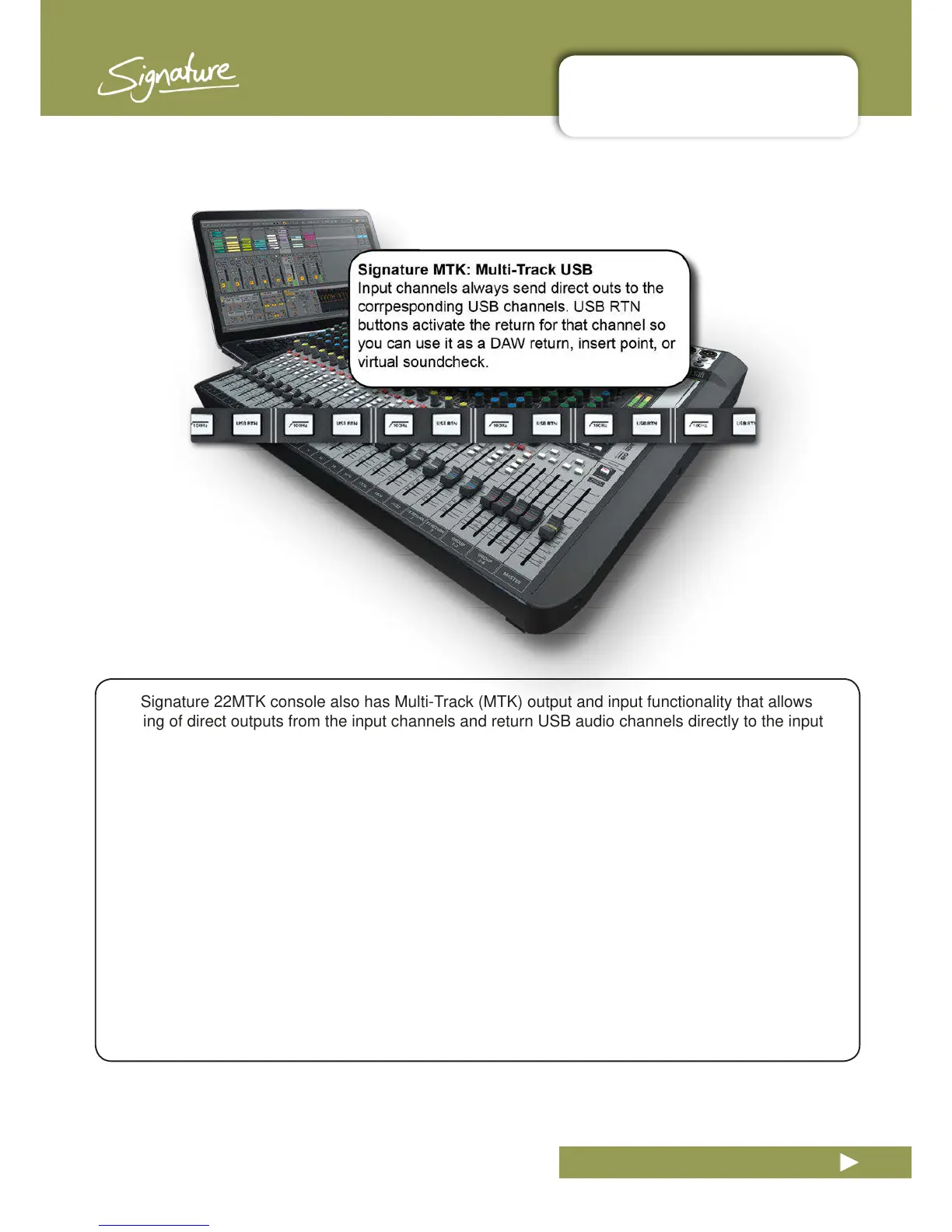

The Signature 22MTK console also has Multi-Track (MTK) output and input functionality that allows
sending of direct outputs from the input channels and return USB audio channels directly to the input
channels.
This makes it easy to set up multi-track recording and monitoring to and from a computer-based DAW,
forexample;ortorunavirtualsoundcheckfromapreviouslyrecordedshow.
Multi-Track channels are numbered according to Input Channel numbers, so Signature input channels
1-22 use USB audio channels 1-22.
The Signature 22MTK Input channels ALWAYS send their post-gain, pre-EQ signal to their respective
USB recording channel.
The 2-track (Master Left/Right) output uses USB channels 23 and 24 and is always active.
MultiTrack USB input is selectable per-channel with the USB RTN button. When pressed, the USB
input channel corresponding to the Signature channel is replaces the normal audio input for that
channel (just after the USB output tap: post-gain, pre-EQ).
