5.1: INPUT CONTROLS
CHANNEL CONTROLS > INPUT CONTROLS
5.1: INPUT CONTROLS
Input channels take sources and route/process them. The sources catered for by the Signature
consoles includes mono (single channel) sources, stereo sources, and internal sources (the FX Return
channel).

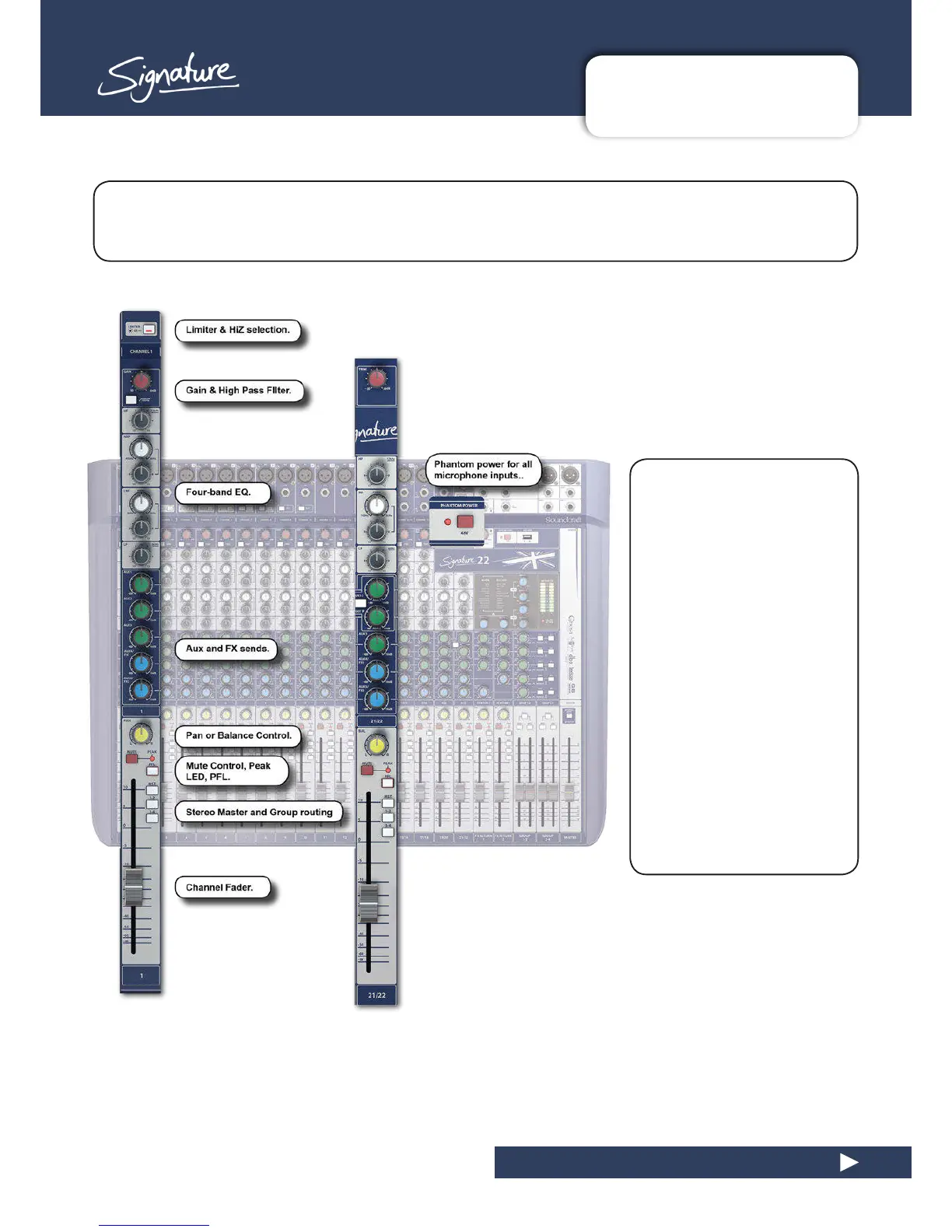

The controls are shown in
the order they appear on
the console channel
strip - from top to bottom.
This is not necessarily
signal path order. Please
refer to the relevant signal
path diagram (section 4).
Controls common to all
input channel types are
documented in the Mono
Input Channel controls
section (5.1.1). Controls
orexplanationsspecicto
Stereo input channels and
the FX Return Channels
are documented in those
sections (5.1.2 and 5.1.3
respectively).

SoundCraft Signature 22 Specifications

General

Channels	22
Faders	100mm
Type	Analog Mixer
Inputs - Mic Preamps	16 x XLR
Computer Connectivity	USB
Phantom Power	Yes
Subgroups	4
Mic Preamps	16
EQ Bands	3-band
Effects	Lexicon Effects Engine
Inputs - Line	22 x 1/4"
Inputs - Other	2 x RCA (Stereo)
Outputs - Main	2 x XLR
Outputs - Other	1 x 1/4" (Headphones)
Aux Sends	5 Aux Sends
