Soundstream Tarantula Series User Manual

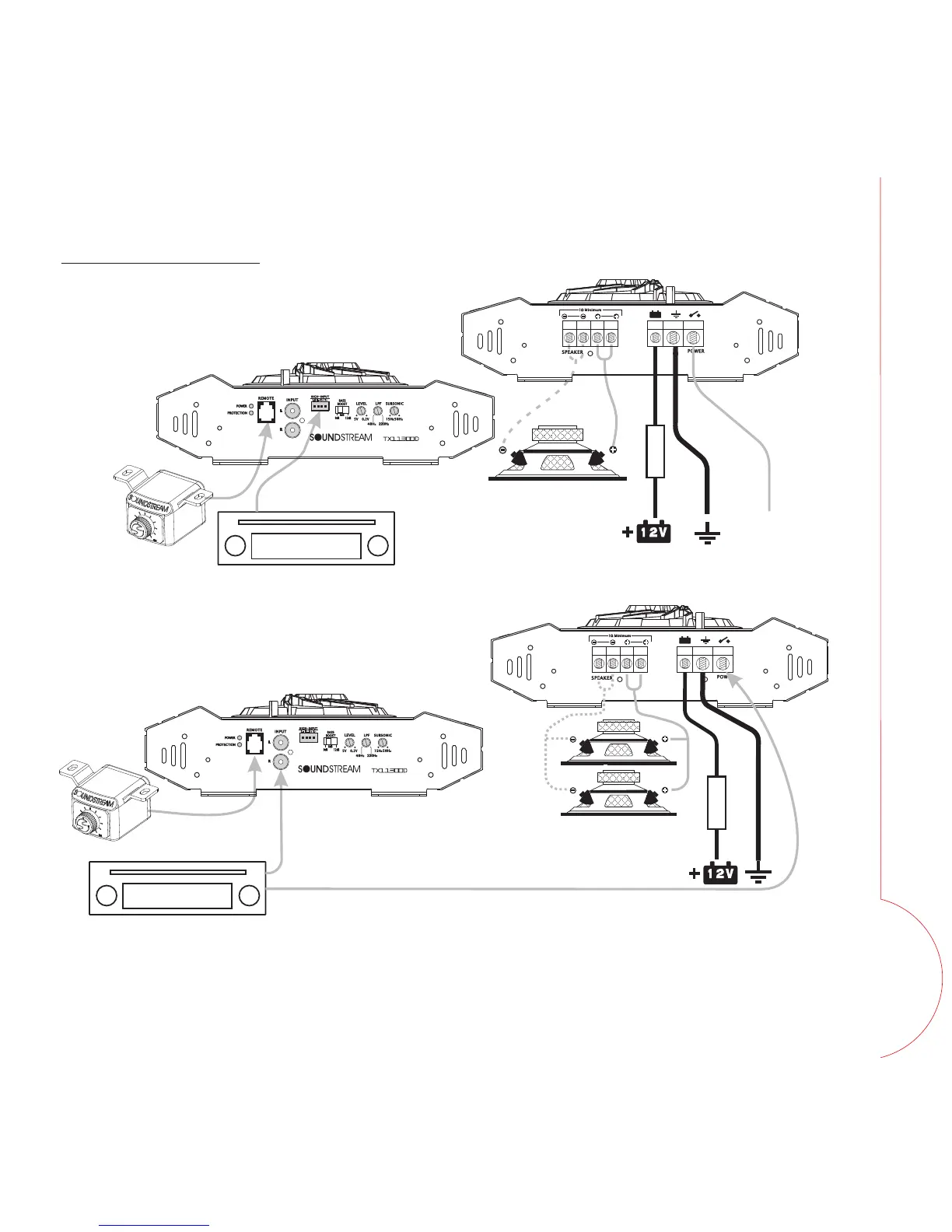

Fig 8. Mono amplifier wiring
WIRING DIAGRAM
(High level input mode)
Fig 9. Mono amplifier wiring
(multi woofers)
*Equivalent parallel woofer load cannot be
less than the minimum load rating. The 2
negative terminals are paralleled inside the
amplifiers, as are the 2 positive terminals.
These are monoblock amplifiers, not multi-
channel amplifiers.
WIRING
FUSE
Source Unit
RCA signal
ON/OFF
control signal
FUSE
Source Unit
REMOTE sign
al
RCA signal

Soundstream Tarantula Series Specifications

General

Series	Tarantula
Category	Amplifier
Crossover	Variable Low Pass
Amplifier Class	D
Input Sensitivity	0.2V - 6V
Power Output	Varies by model
RMS Power @ 4 Ohms	Varies by model
RMS Power @ 2 Ohms	Varies by model
RMS Power @ 1 Ohm	Varies by model
Bridged RMS Power	Varies by model
Fuse Rating	Varies by model
Dimensions	Varies by model
