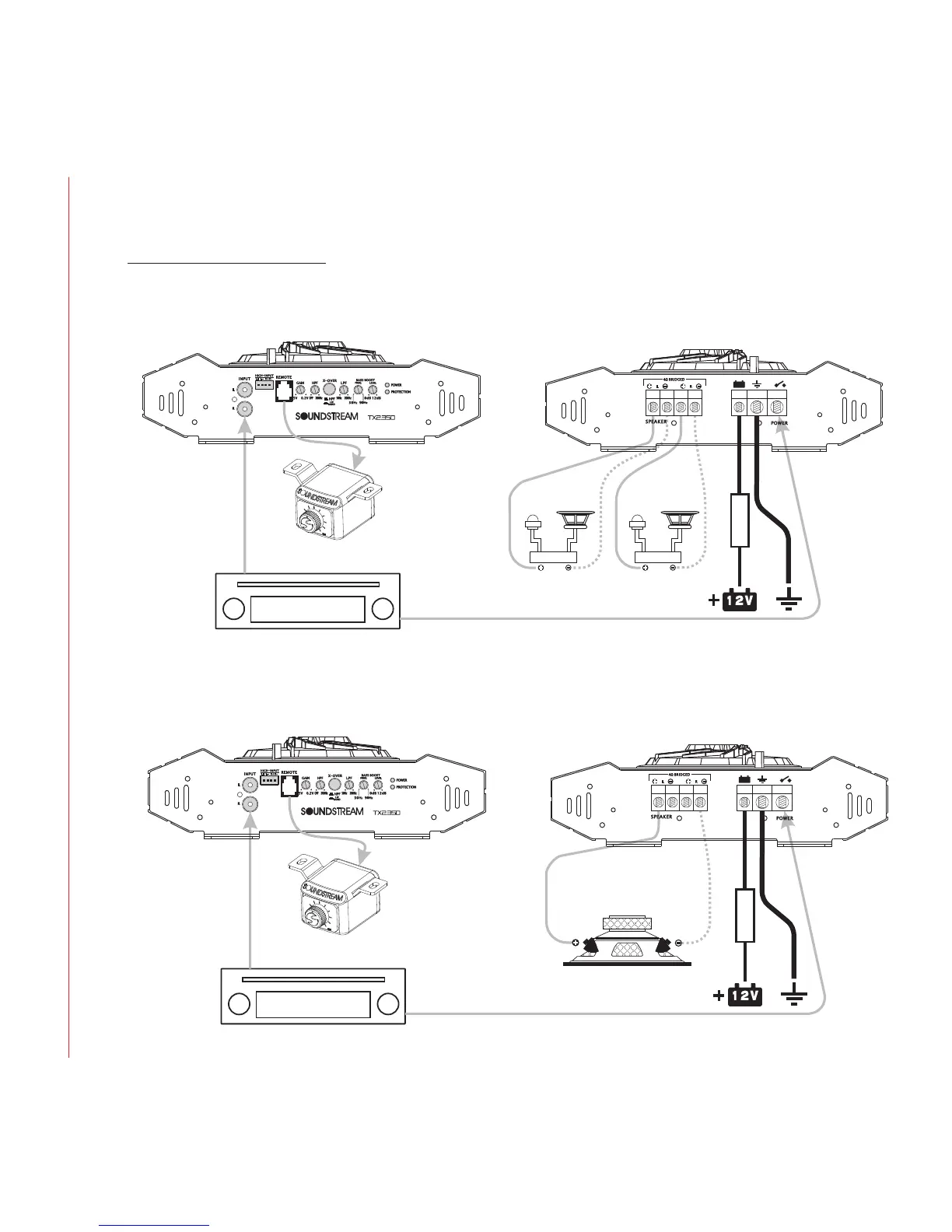

Fig 14. TX2.350 / TX2.500 wiring
(High level input & Bridged mode)
Fig 13. TX2.350 / TX2.500 wiring
WIRING DIAGRAM
(2-channel mode)
Source Unit
FUSE
RCA signals
CROS SOVER
2-Ohm to 4-Ohm
CROS SOVER
2-Ohm to 4-Ohm
REMOTE signal
Source Unit
FUSE
RCA signals
REMOTE signal
4-Ohm to 8-Ohm
