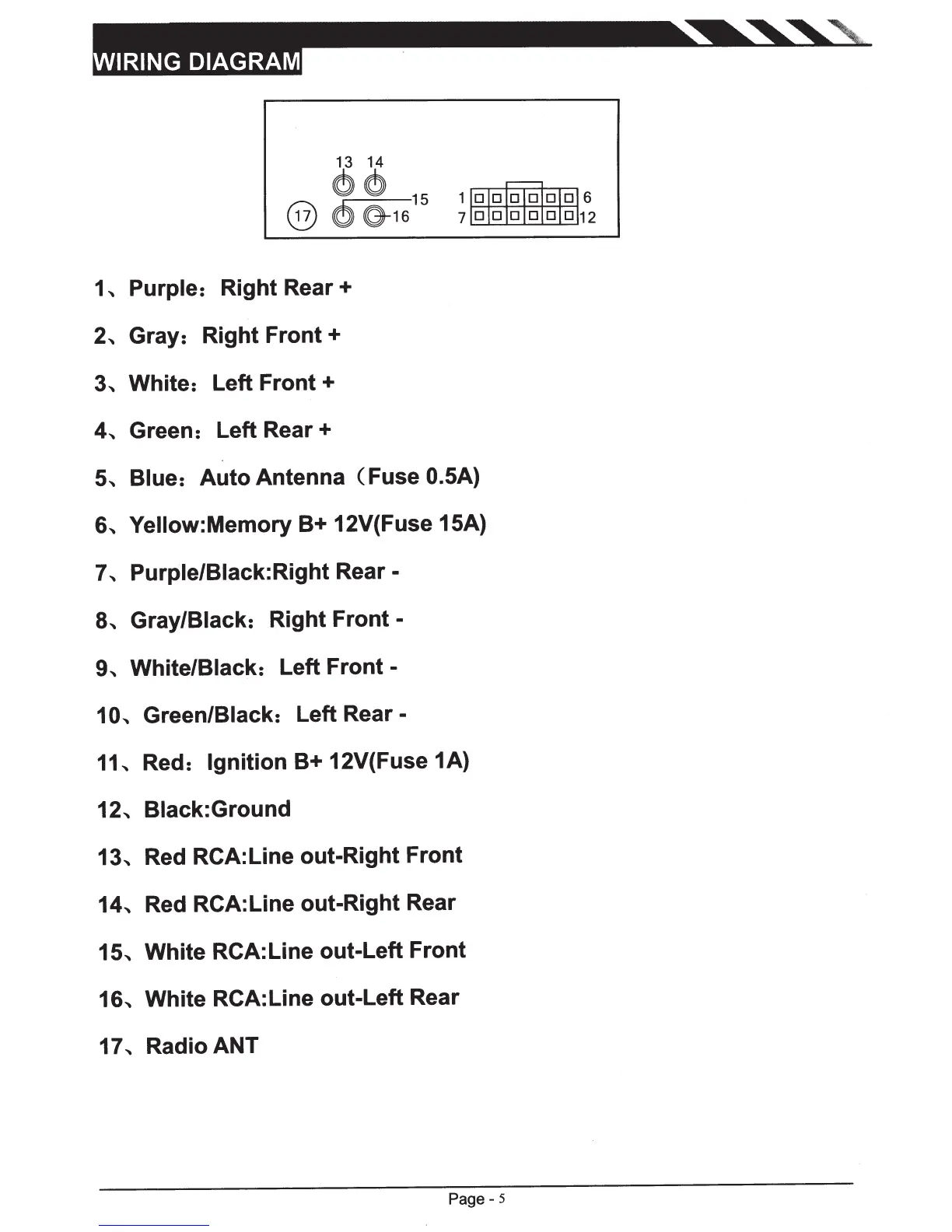

Soundstream VCD-32B User Manual

13 14
66
15
@
6
{)-16
1,
Purple: Right
Rear+
2,
Gray: Right Front +
3,
White: Left
Front+
4,
Green: Left
Rear+
5,
Blue:
Auto
Antenna (Fuse 0.5A)
6,
Yellow:Memory
B+ 12V(Fuse 15A)
7,
Purple/Black: Right Rear -
8,
Gray/Black: Right Front -
9,
White/Black: Left Front -
10,
Green/Black: Left
Rear-
11,
Red:
Ignition
B+ 12V(Fuse 1A)
12,
Black:Ground
13,
Red RCA:Line out-Right Front
14,
Red RCA:Line out-Right Rear
15,
White RCA:Line out-Left Front
16, White RCA:Line out-Left Rear
17,
Radio ANT
Page-
5

Soundstream VCD-32B Specifications

General

Brand	Soundstream
Model	VCD-32B
Category	Car Receiver
Language	English
