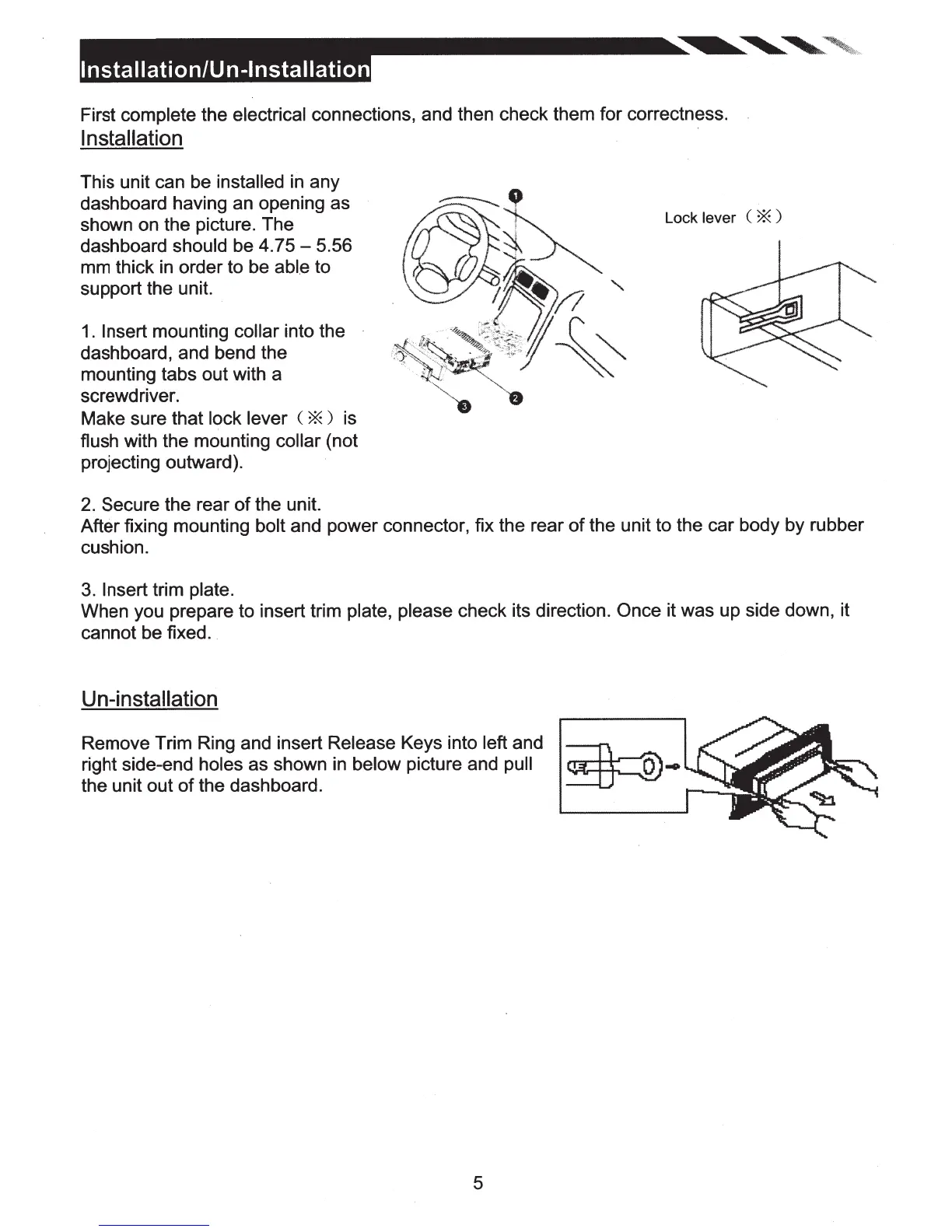

First complete the electrical connections, and then check them for correctness.
Installation
This unit can be installed
in
any
dashboard having an opening as
shown on the picture. The
dashboard should be
4.
75 - 5.56
mm thick
in
order to be
abl.e
to
support the unit.
1.
Insert
mounting
collar into the
dashboard, and bend the
mounting tabs out with a
screwdriver.
Make sure that lock lever
C
*)
is
flush with the mounting
collar
(not
projecting outward).
2.
Secure the rear
of
the unit.
Lock lever
(
*
)
After fixing mounting bolt and power connector, fix the rear
of
the unit to the car body by rubber
cushion.
3.
Insert
trim plate.
When you prepare to insert trim plate, please check its direction.
Once
it was up side down, it
cannot be fixed
. .
Un-installation
Remove Trim Ring and insert Release Keys into left and
~
right side-end holes as shown
in
below picture and
puiiQ
...
the unit out
of
the dashboard.
