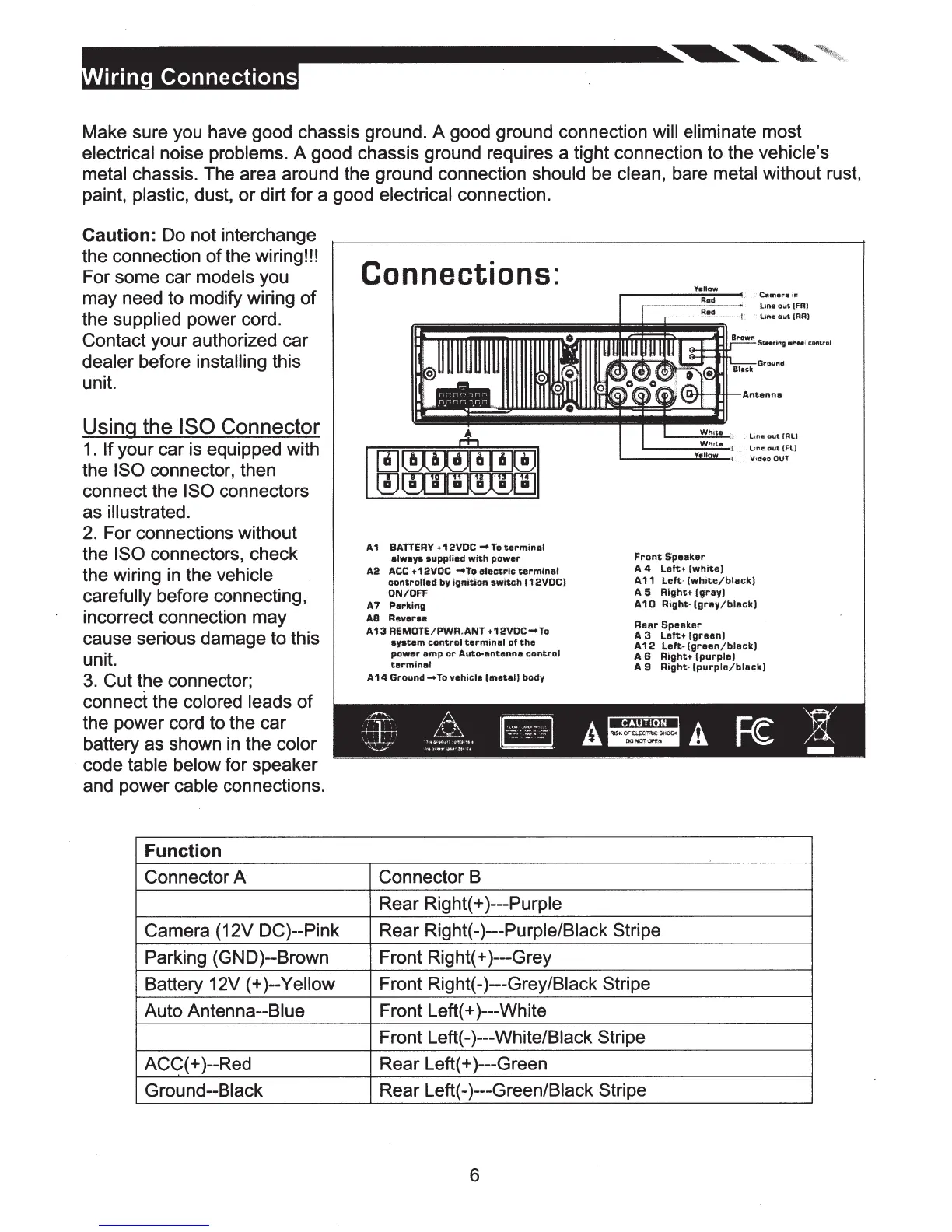

Make sure you have good chassis ground. A good ground connection will eliminate most
electrical noise problems. A good chassis ground requires a tight connection to the vehicle's
metal chassis. The area around the ground connection should be clean, bare metal without rust,
paint, plastic, dust,
or
dirt for a good electrical connection.
Caution:
Do not interchange
the connection
of
the wiring!!l
For some car models you
may need to modify wiring
of
the supplied power cord.
Contact your authorized car
dealer before installing this
unit.
Using the ISO Connector
1.
If your car is equipped with
the ISO connector, then
connect the ISO connectors
as illustrated.
2.
For connections without
the ISO connectors, check
the wiring
in
the vehicle
carefully before connecting,
incorrect connection may
cause serious damage to this
unit.
3.
Cut the connector;
Connections:
A 1
BATTERY
+ 12VDC -+To
terminal
always supplied with power
A2
ACC
+12VDC -+To
electric
terminal
controlled by ignition switch (12VDC)
ON/OFF
A7
Parking
A8
Revene
A13
REMDTE/PWR.ANT
+12VOC-To
system
control
terminal
of
the
power
amp
or
Auto-antenna
control
terminal
A14
Ground-To
vehicle (metal! body
C~tmar•
in
Lmeo1.1t (FR!
Une
out
!RAJ
L•ne
out
{All
lmi!Ot,~t{fl)
V•deo OUT
Front
Speaker
A 4
Left+
(white)
A
11
Left·
(white/black)
A 5 Right+ {gray)
A10
Right-
(gray/black)
Rear
Speaker
A 3
Left+
(green)
A12
left·
(green/black)
A 8 Right+
(purple)
A 9
Right·
(purple/black}
~-
~
--
''ey'
ffi
"'''~'''
ww..
~~~
A IIIII A
~
A
~
l"'!t~-,.~
:1hfl-
---·
-
connect the colored leads
of
the power cord to the car
battery as shown
in
the color
code table below for speaker
and power cable connections.
----------------------------------------------------
Function
Connector A
Connector B
Rear Right(+ )---Purple
Camera (12V DC)--Pink Rear Right(-)---Purple/Black Stripe
Parking (GND)--Brown
Front Right(+ )---Grey
Battery 12V (+)--Yell
ow
Front Right(-)---Grey/Black Stripe
Auto Antenna--Blue Front Left(+ )---White
Front Left(-)---White/Black Stripe
ACC( +)--Red
Rear Left(+ )---Green
Ground--Black
Rear Left(-)---Green/Black Stripe
6
