Soundstream VRCPAA-70M User Manual

1

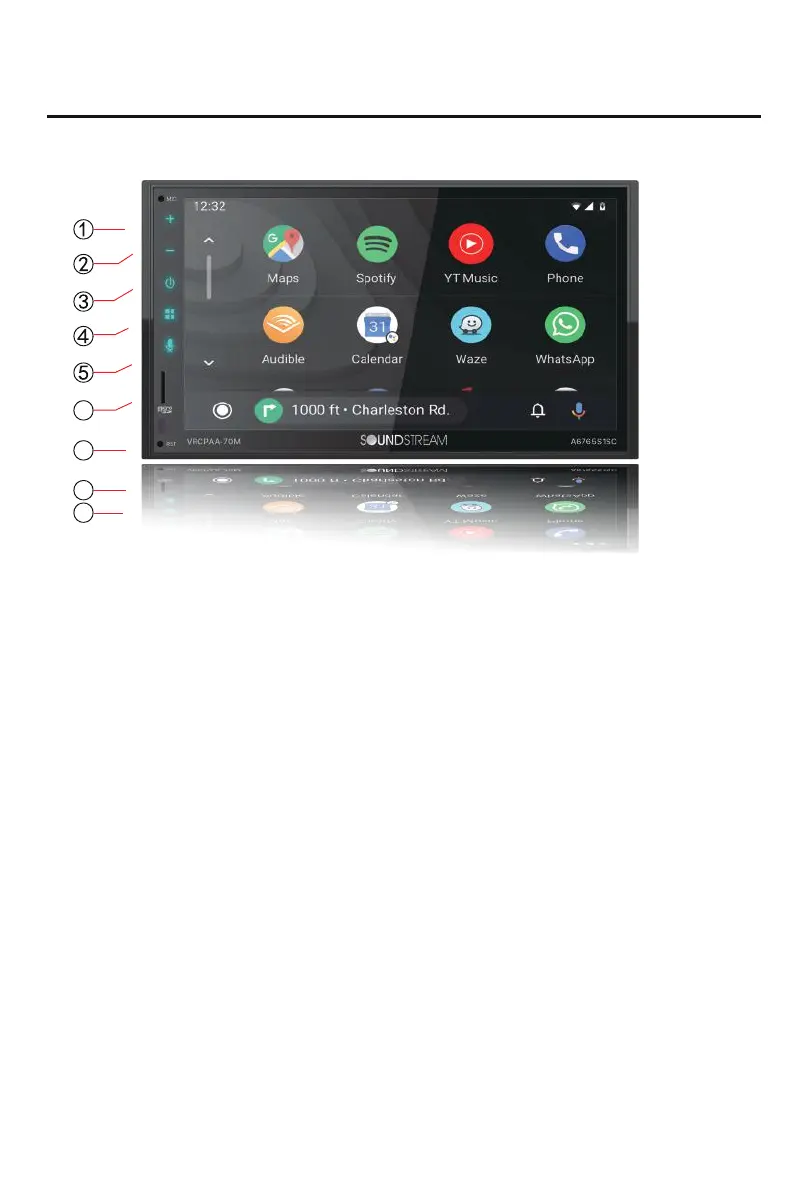

TOUCH BUTTON FUNCTION INTRODUCTION
2. Volume+: long press to increase volume continuously;
short press to increase volume by step.
1. Microphone: Built-in Microphone.
3. Volume-:
4. Power:
long press to decrease volume continuously;
short press to decrease volume by step.
5. Home: Press to enter main menu.
when the screen open, short press into mute mode,
short press once agian to unmute;long press to close
the screen; when the screen close and ACC&B+ ON,
short press to open the screen.
6. Voice Recognition: Press to active Siri/AA voice function.
7. Micro SD: Insert Micro SD for playback.
8. Remote Sensor: Receive the remote signal.
9. Reset: If the unit or the connected unit fails to operat
properly, the returns to factory settings when
this button is pressed.
6
7
8
9

Soundstream VRCPAA-70M Specifications

Power

power supply	DC10-16V
current drain	15A
grounding system	Negative Ground

Operating Environment

operating temperature	-20~+60℃

Display

tft screen size	7 inch
resolution	800x480 Pixels

FM Radio

frequency range (usa)	87.5~107.9MHz
frequency range (europe)	87.5~108.0MHz
enable sensitivity (s/n=30db)	≤15dB

AM Radio

frequency range (usa)	530~1710KHz
frequency range (europe)	522~1620KHz
enable sensitivity (s/n=20db)	≤40dB

Weight and Dimensions

dimensions	178mm(W)x168mm(D)x100mm(H)
