6. Secure the bottom flange to the wall. Failure to do so could cause damage or
bodily injury.
Warning: Secure the N
2-BLAST
®
FPS-500 to the wall at the top and bottom flanges.
Failure to do so could cause damage or bodily injury.

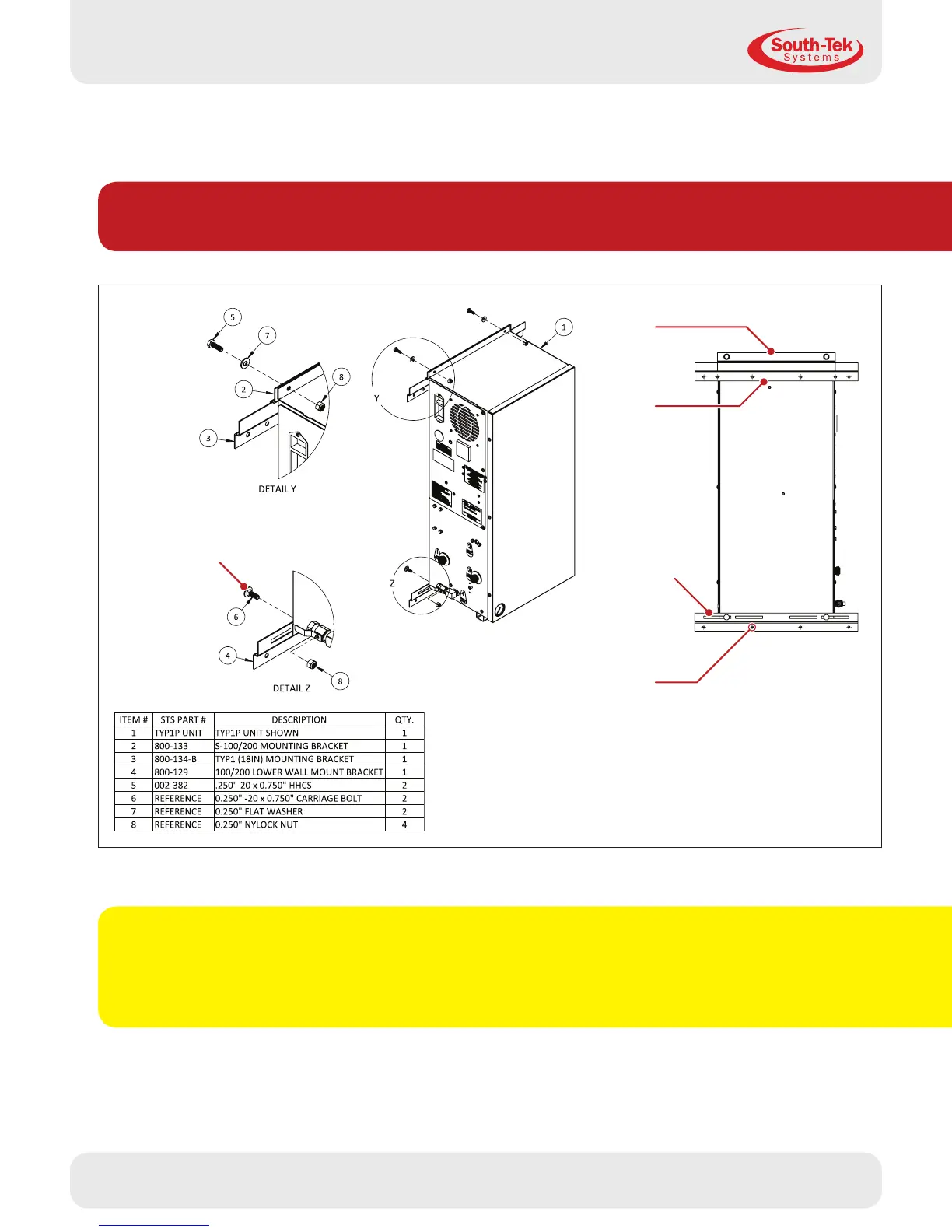

Figure 2: Wall mounting instructions
Note: Install in a location where 4” minimum clearance is available on the sides. Leave
36” minimum on the front side for maintenance access. Do not install near a heat source or
where steam or water is present. Improper installation may result in bodily harm or damage
to the system, as well as voiding the system’s warranty.
Carriage bolt must be
installed from the
back side of bracket
Fasten bracket
securely to
cabinet as in
Detail Y
Bracket
should be
secured to wall
studs with
¼” hardware
Bracket
installed with
slotted edge
against cabinet
Bracket
should be
secured to wall
studs with
¼” hardware
