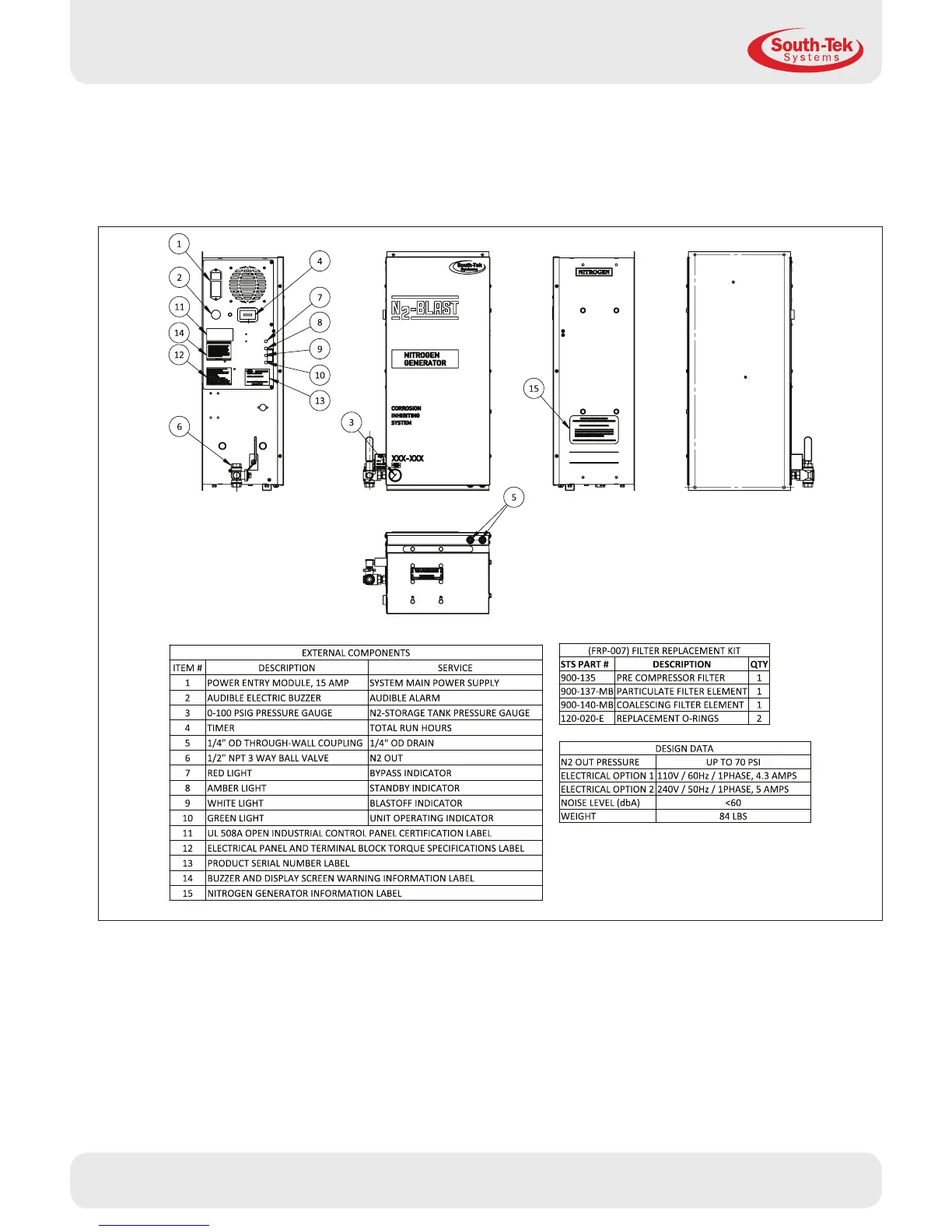

Figure 5: FPS-500 external components and connections
5.3 PANEL LAYOUT AND GAS CONNECTIONS
See gures below for panel layout and gas connections. Double-check all connection locations
before turning on the system or opening any valves. Note: All N2-BLAST
®
models are factory
equipped with ½” NPT Female connections.
