Southwire 14090T User Manual

6
Symbols Used on LCD Display
V
A
~
-
Hz
%
Ω
F
°F
°C
n
µ
m
k
M
OL
AUTO
HOLD
LOZ
MAX/MIN/AVG
Peak
REL
Volts
Amperes
Alternating current
Direct current
Minus sign
Hertz (frequency)
Percent (duty cycle)
Ohms
Continuity
Diode test
Farads (capacitance)
Degrees Fahrenheit
Degrees Celsius
nano (10
-9
)
micro (10
-6
)
milli (10
-3
)
kilo (10
3
)
mega (10
6
)
Overload
Auto Power Off
Low battery
Autoranging
Display hold
Low Z (impedance)
Maximum/Minimum/Average
Peak hold
Relative
Bluetooth
®
0 10 20 30 40 50 60
LoZ mV AnF M k
AUTO HOLD REL PEAK MAX MIN AVG
AC+DC
0 10 20 30 40 50 60
LoZ mV AnF M k
AUTO HOLD REL PEAK MAX MIN AVG
AC+DC
5

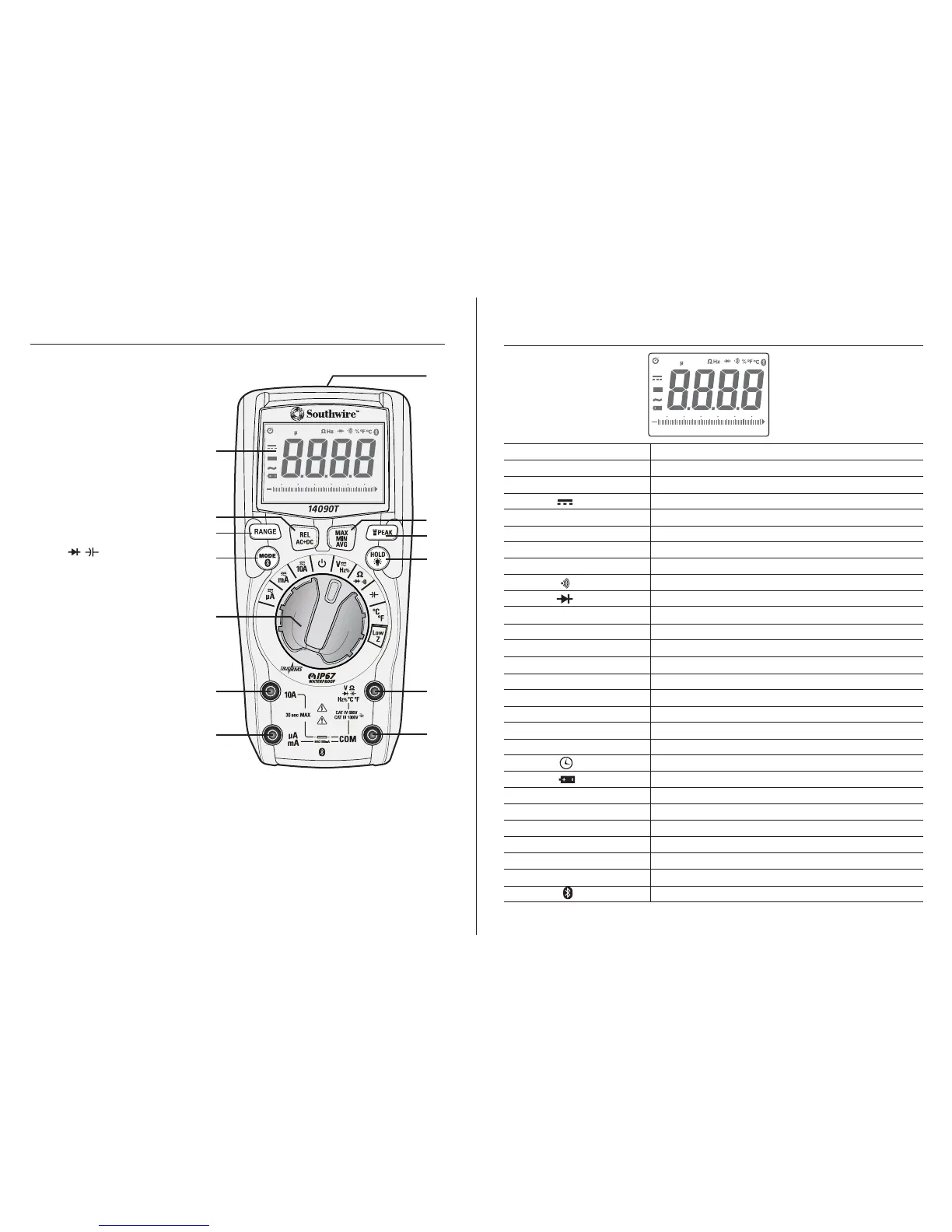

Meter Description
1.
2.
5.
6.
8.
9.
10.
12
13.
11.
7.
3.
4.
1. LCD display
2. REL/AC + DC button
3. RANGE button
4. MODE/Bluetooth
®
button
5. Rotary function switch
6. 10A input jack
7. µA, mA input jack
8. COM input jack
9. V/Ω/ / /Hz %/°C °F
input jack
10. HOLD/Backlight button
11. Flashlight/PEAK button
12. MAX/MIN/Average button
13. Flashlight

Southwire 14090T Specifications

General

Brand	Southwire
Model	14090T
Category	Measuring Instruments
Language	English
