0
10 20 30 40 50 60
LoZ mV AnF M k
AUTO HOLD REL PEAK MAX MIN AVG
AC+DC
15
Operation cont.

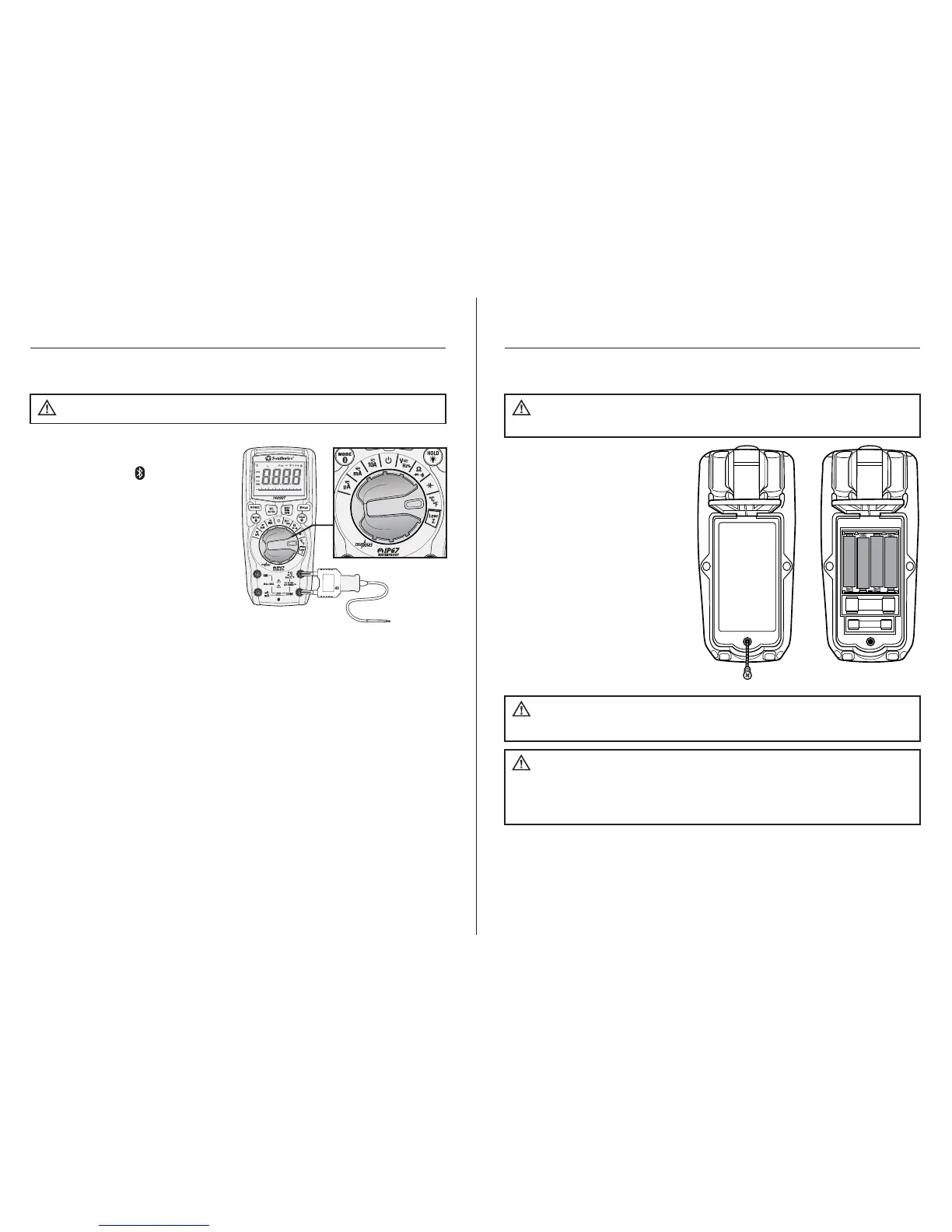

Temperature Measurements
1. Set the rotary function switch to
the °F °C position.
2. Press the MODE button to
select readings in °F or °C.
3. Connect the Temperature Probe
to the Banana Plug Adapter.
Note the – and + markings on
the adapter. Connect the adapter
to the meter, making sure the –
side goes into the COM input
jack and the + side goes into
the °C°F input jack.
4. Touch the tip of the Temperature
Probe to the object being measured.
Keep the probe touching the object
until the reading stabilizes (about
30 sec).
5. Read the temperature on the LCD display.
Do not touch the temperature probe to live circuits.
WARNINGS:
0
10 20 30 40 50 60
LoZ mV AnF M k
AUTO HOLD REL PEAK MAX MIN AVG
AC+DC
16
Operation cont.
To avoid electric shock, do not operate the meter
until the battery/fuse cover is securely fastened to the meter.
WARNING:
To avoid electric shock, remove the test leads from
the meter before removing the battery/fuse cover.
WARNINGS:
Battery Replacement
1. Lift up the tilt stand.
2. Loosen the Phillips
screw(s) on the battery/fuse
cover.
3. Remove the battery/fuse cover.
4. Replace the batteries with four
AAA batteries.
5. Observe polarity as shown
inside battery compartment.
6. Install the battery/fuse cover
and tighten the screw(s).
When replacing the battery or fuses, be sure to secure
the battery compartment door firmly to maintain the waterproof and dust
proof integrity of the meter. Loose or overtightened screws, or an improperly
seated o-ring may compromise the meter's water and dust ingress protection.
WARNING:
