17
Operation cont.
To avoid electric shock, remove the test leads from
the meter before removing the battery/fuse cover.
WARNINGS:

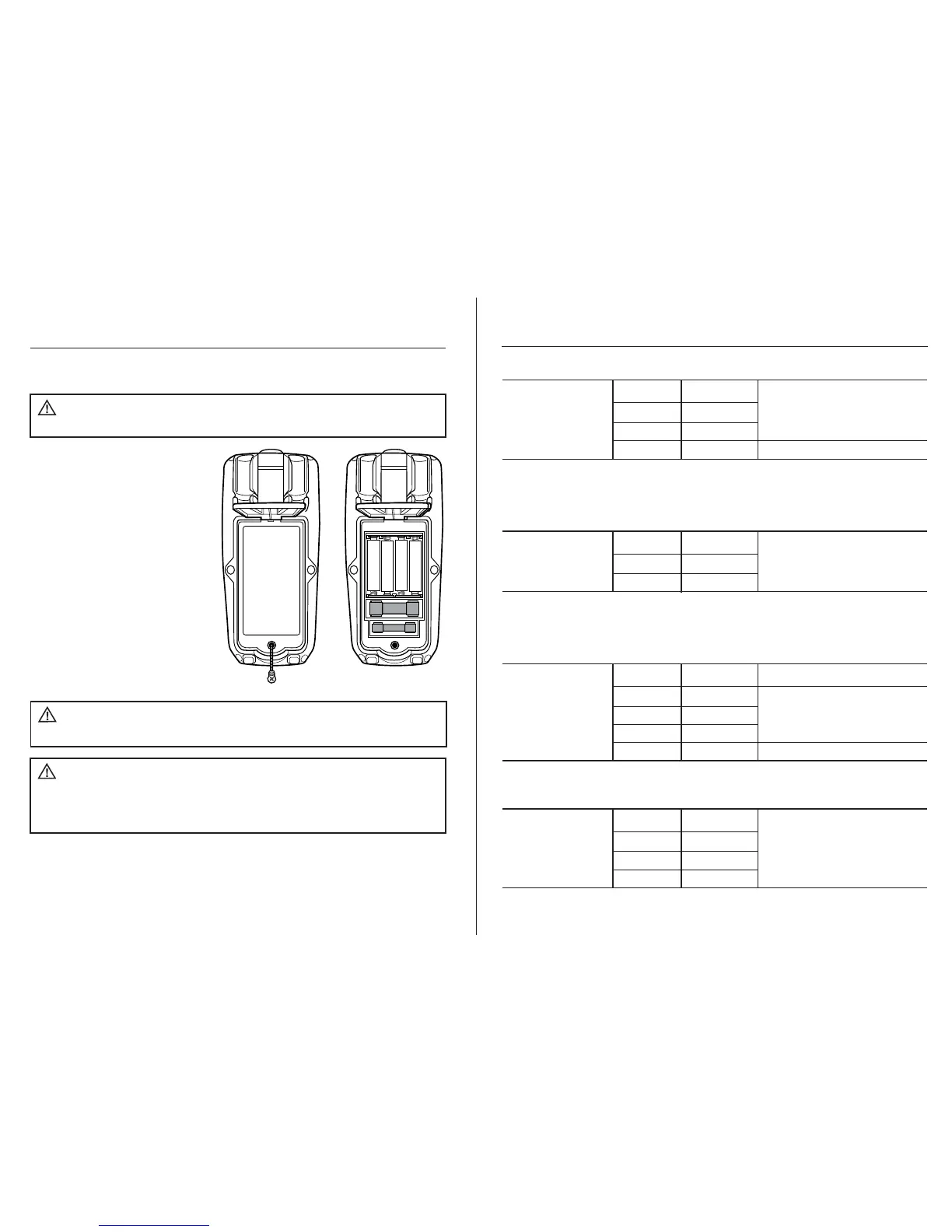

Fuse Replacement
To avoid electric shock, do not operate meter until
the battery/fuse cover is securely fastened to the meter.
WARNING:
1. Lift up the tilt stand.
2. Loosen the Phillips screw(s)
on the battery/fuse cover.
3. Remove the battery/fuse cover.
4. Gently remove fuse and install
new fuse into the holder.
5. Always use a UL recognized
fuse of the proper size and
value: 800mA/1000V (6.3 x
32mm) fast blow for the
µA/mA ranges and 10A/1000V
(10 x 38mm) fast blow for the
10A range.
6. Install the battery/fuse cover
and tighten the screw(s).
When replacing the battery or fuses, be sure to secure
the battery compartment door firmly to maintain the waterproof and dust
proof integrity of the meter. Loose or overtightened screws, or an improperly
seated o-ring may compromise the meter's water and dust ingress protection.
WARNING:
18
Specifications
6.000V
60.00V
600.0V
1000V
All AC voltage ranges are specified from 5% to 100% of range
Input Protection: 1000V AC RMS or 1000V DC
Input Impedance: 10MΩ
AC voltage bandwidth: 50 to 1kHz
1mV
10mV
0.1V
1V
±(1.0% +5 digits)
±(1.2% +5 digits)
AC Voltage
Function Range Resolution Accuracy
± (% of reading + digits)
600.0mV
6.000V
60.00V
600.0V
1000V
Input Protection: 1000V AC RMS or 1000V DC
Input Impedance: 10MΩ
0.1mV
1mV
10mV
0.1V
1V
±(0.9% + 8 digits)
±(0.9% + 5 digits)
±(1.0% + 3 digits)
DC Voltage
Function Range Resolution Accuracy
± (% of reading + digits)
600.0mV
6.000V
60.00V
600.0V
Input Protection: 600V AC RMS or 600V DC
Input Impedance: Approx. 3kΩ
0.1mV
1mV
10mV
0.1V
±(3.0% + 40 digits)
Low Z
DC Voltage
Function Range Resolution Accuracy
± (% of reading + digits)
Accuracy is stated at 65°F to 83°F (18°C to 28°C), less than 70% relative humidity
6.000V
60.00V
600.0V
All AC voltage ranges are specified from 5% to 100% of range
Input Protection: 600V AC RMS or 600V DC
Input Impedance: Approx. 3kΩ
AC voltage bandwidth: 50 to 1kHz
1mV
10mV
0.1V
±(3.0% +40 digits)
Low Z
AC Voltage
Function Range Resolution Accuracy
± (% of reading + digits)
