SQUEEZE ADJUSTMENT
Refer to the “Identification” section of this manual.
1. When bending 1
1
/2", or 2" EMT or IMC, the amount of squeeze
applied to the conduit can be adjusted to compensate for conduit
variations. The squeeze is adjustable by turning the squeeze
adjustment knob (12) to increase or decrease the amount of tension
needed to properly seat the conduit as shown in (Fig 11).
OPERATION cont.
Note: Test bend should be performed to ensure proper squeeze is set.
Minor adjustments may be required.

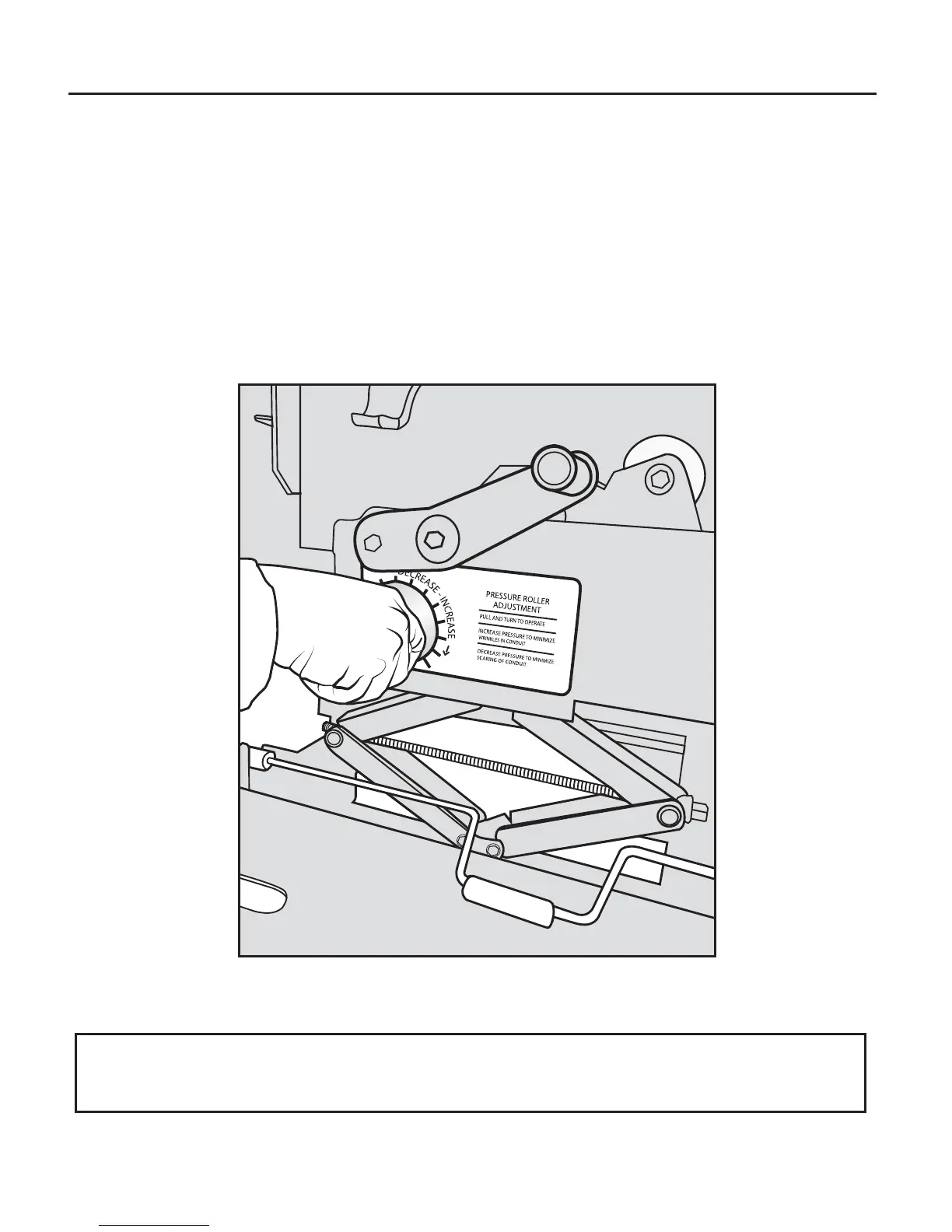

Fig. 11
