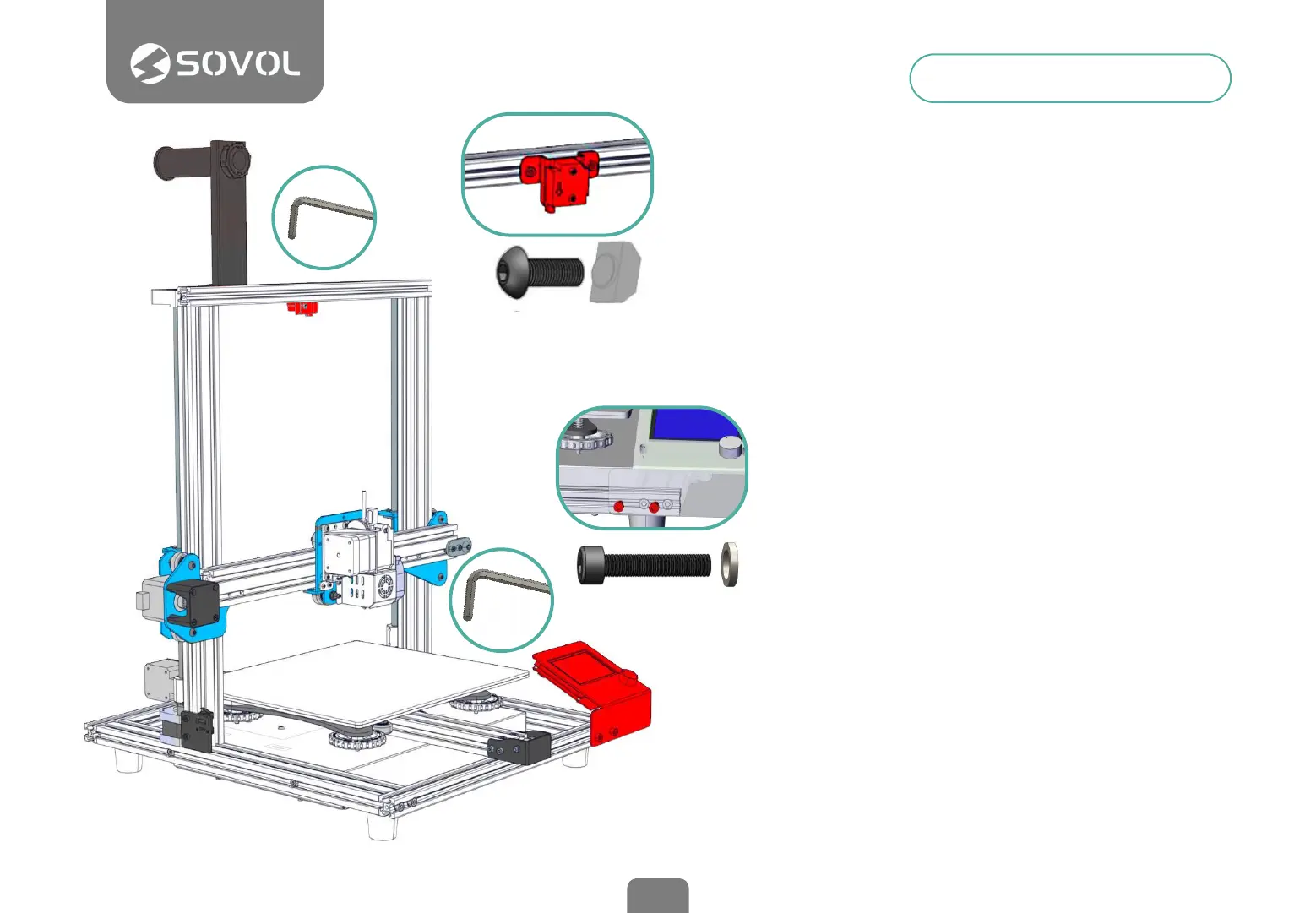

Install the lament sensor.
The plate with the lament sensor is
installed in the upper rear part of the
frame. The correct direction is indicated by
an arrow on the sensor housing. Fixing to
the frame is similar to the method used
previously. Use the M4x8 (2) screws with
M4 T-Nut (2). Loosen the T-nuts by hand,
when you tighten the screws, the nut will
rotate 90° and grab onto the inside of the
groove.
Install the Lcd screen.
The screen is mounted on the right front of
the base frame. Use the M5x20 (2) screws
provided with their washers. Install the
screws throught the Screen plate into the
threaded holes in the bottom frame.
In another step, we will explain how to
make screen connections
5
06
M5x20 + WASHERS
(2 Units)
M4x8 + T-NUTS (2
Units)
Assembly - Steps 4-5
2.4mm
4mm
