3. Wall Flush Mounting

ThePixiePromaybeflushmountedintoawallusingeitherastandardfour-gangbackboxandcon-

duit,orusingafour-gangmudring.

Back Box:Cutafour-gangholeinthewallandinstallastandardfour-gangwallbox.Securethe

PixieProintothewallboxusingtheincludedmountingscrews.CoverthePixieProfacewiththe

includedfaceplateandsecurewiththeincludedscrews.

Mud Ring:Cutafour-gangholeinthewallandinstallastandardfour-gangmudring.Securethe

PixieProintothemudring(notincluded)usingtheincludedscrews.CoverthePixieProfacewiththe

includedfaceplateandsecurewiththeincludedscrews.

Note:SPControlsstronglyrecommendsuseofamudringformountingthePixieProinsheetrock

toensureasecurefit.

4-Gang

BackBox

(notincluded)

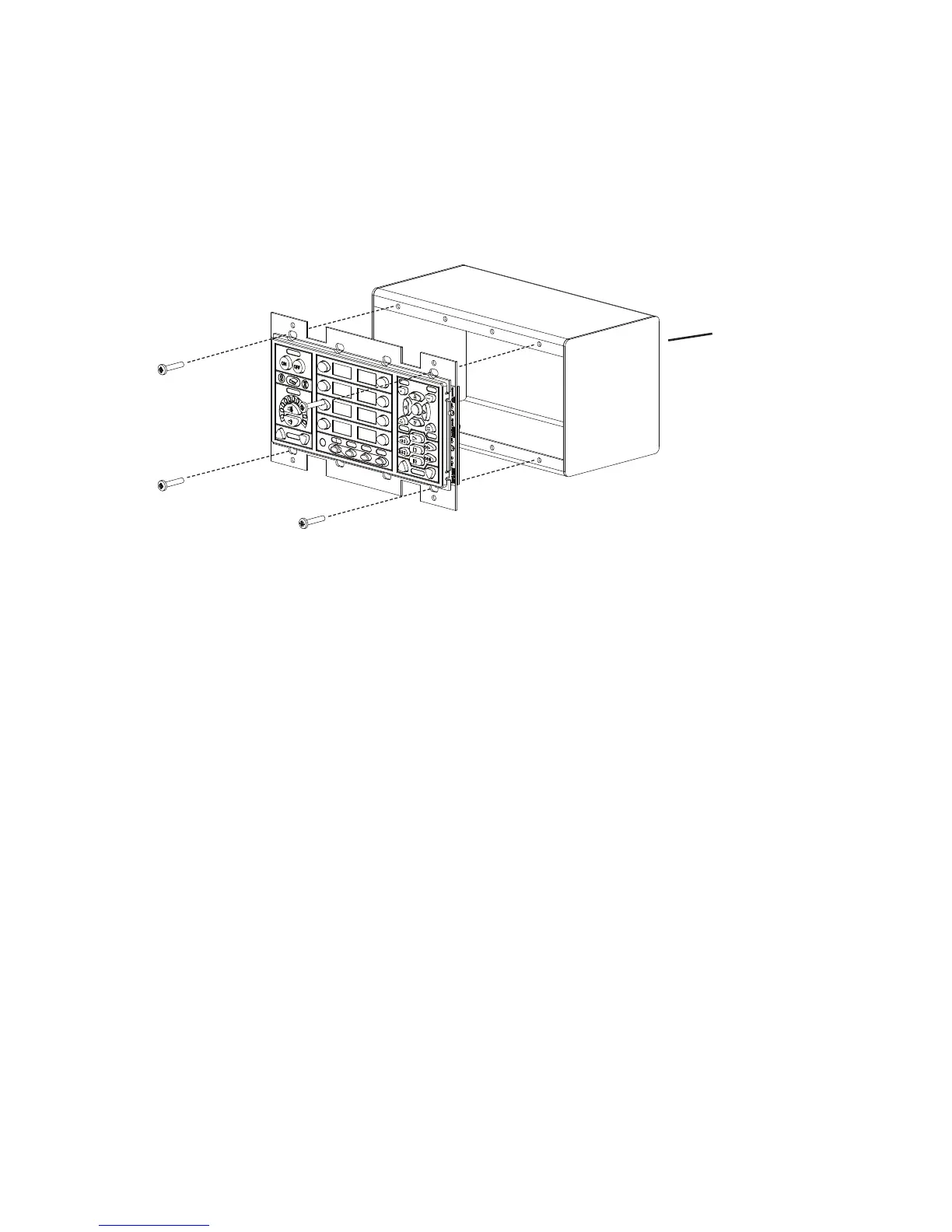

Figure 5: MountingthePixieProinabackbox(notincluded)
