Spa-Quip SP400P User Manual

Push 3 (Auto Mode)
Push 1 (Pump on)
Push 2 (Pump off)
3 Pump Operation
Page 3
There are four possible variations of pump 1 that may have been fitted to your spa, this user guide covers all
variations of pump 1 that could have been fitted. Please read sections 3.1 through to 3.4 then follow the section
which matches your spa operation.
Note: Even if a 24hr circulation pump is fitted there is no button to control it. The 24hr circulation pump operation is
completely automatic, It only turns off in sleep mode (if optional time clock is fitted) or in an error condition.
Push 1 (Manual Mode)
Push 2 (Standby Mode)
HEATHEAT PUMP AUTO AIR PUMP AUTO AIR PUMP AUTO AIR PUMP AUTO AIR
HEATHEAT PUMP AUTO AIR PUMP AUTO AIR PUMP AUTO AIR PUMP AUTO AIR
HEATHEAT PUMP AUTO AIR PUMP AUTO AIR PUMP AUTO AIR PUMP AUTO AIR

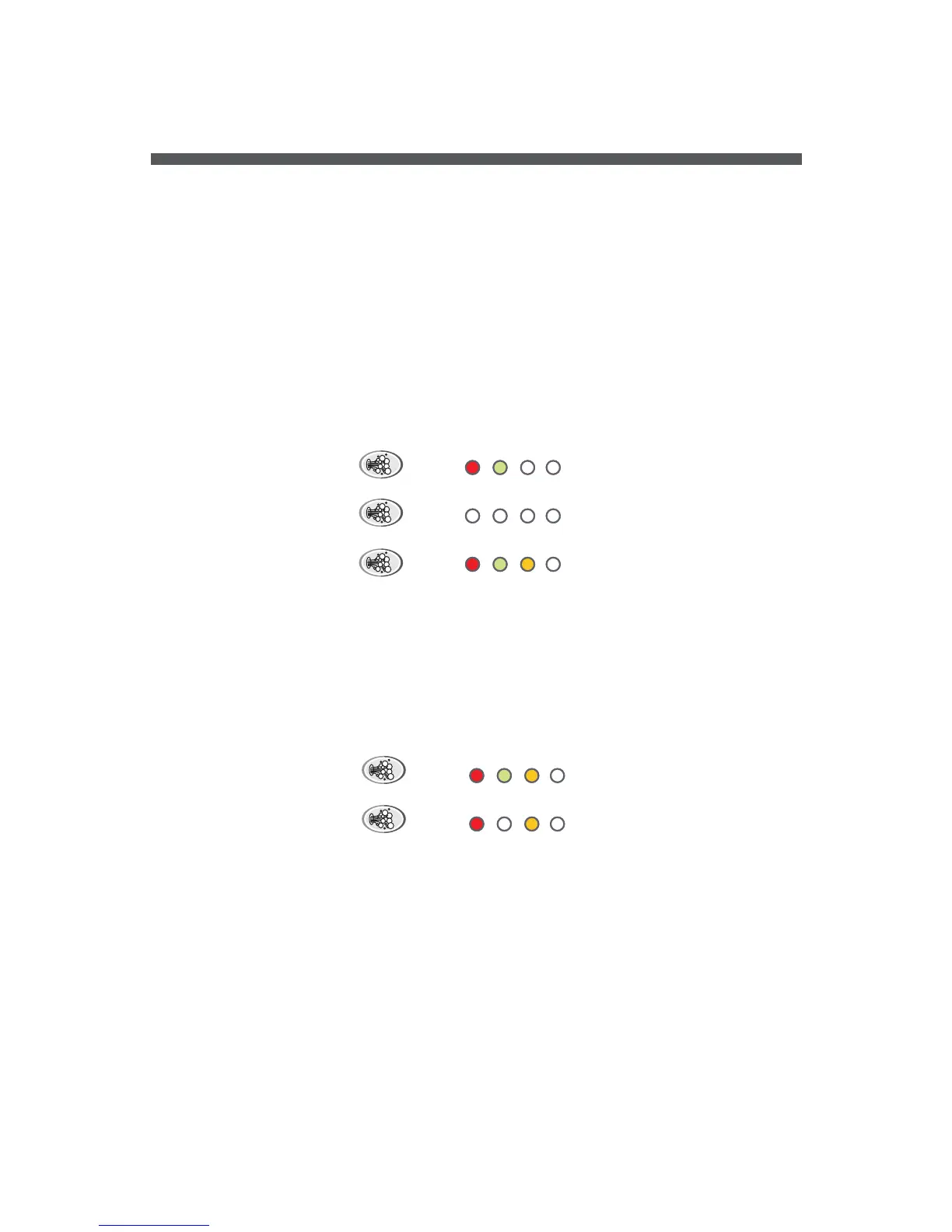

Pump 1 is controlled by just one touch pad button pushing the pump button three times cycles its operation through
three modes Automatic, Manual and Standby. When the spa is running in automatic mode, pressing the pump
button will deactivate auto mode and set the pump running in Manual Mode. The auto LED is orange when auto
mode is enabled and off when in Manual Mode. When the pump is in standby mode all indicator LED's are off.
Pushing the pump button two times turns the pump on and then off. The pump LED is green when the pump is running and off
when the pump is off.
Notes:
1) If Pump 1 is left on, it will automatically switch off after 20minutes.
2) There is no direct user control over the heater. The heater may come on automatically whenever the 24hr
circulation pump is on.
3) If the heater element is on, running the pump may cause the heater to load shed and switch off. If this occurs the
heater will come back on approximately 5 seconds after the pump is deselected.
Notes:
1) If Pump 1 is left in ”Manual or “Standby” modes it will automatically revert to “Auto” mode after 90 minutes.
2) There is no direct user control over the heater. The heater may come on automatically whenever Pump 1 is on.
HEATHEAT PUMP AUTO AIR PUMP AUTO AIR PUMP AUTO AIR PUMP
H20
AIR
HEATHEAT PUMP AUTO AIR PUMP AUTO AIR PUMP AUTO AIR PUMP
H20
AIR
3.2 Pump 1 (Single speed pump, 24hr circulation pump fitted)
3.1 Pump 1 (Single speed pump, no 24hr circulation pump fitted)
