SPVSB This socket is always powered (except for error conditions) and so can only be
used for a Spa Power Variable Speed Blower (SPVSB).
Circ A small circulation pump can be installed which will circulate water through the
heater, filter and ozonator. This will be used instead of Pump 1 to automatically heat
and filter the pool water. This is typically run for 24 hours a day but a sleep timer can
limit this time to increase pump life and reduce running costs. If this pump is installed,
the circ pump DIP switch must be set to yes (fitted).
Ozone (Circ Pump) Use this socket to connect an ozonator if a circ pump is installed,
regardless of Pump 1 type.
Ozone (1spd Pump) If a 1spd pump is installed as Pump 1 and there is no circ pump
installed, the ozonator should be connected to this socket.
Use the table to see where the
ozonator should be installed.
Installation Guide
Refer to “SP601 Setup Guide” in the appendix for complete instructions.

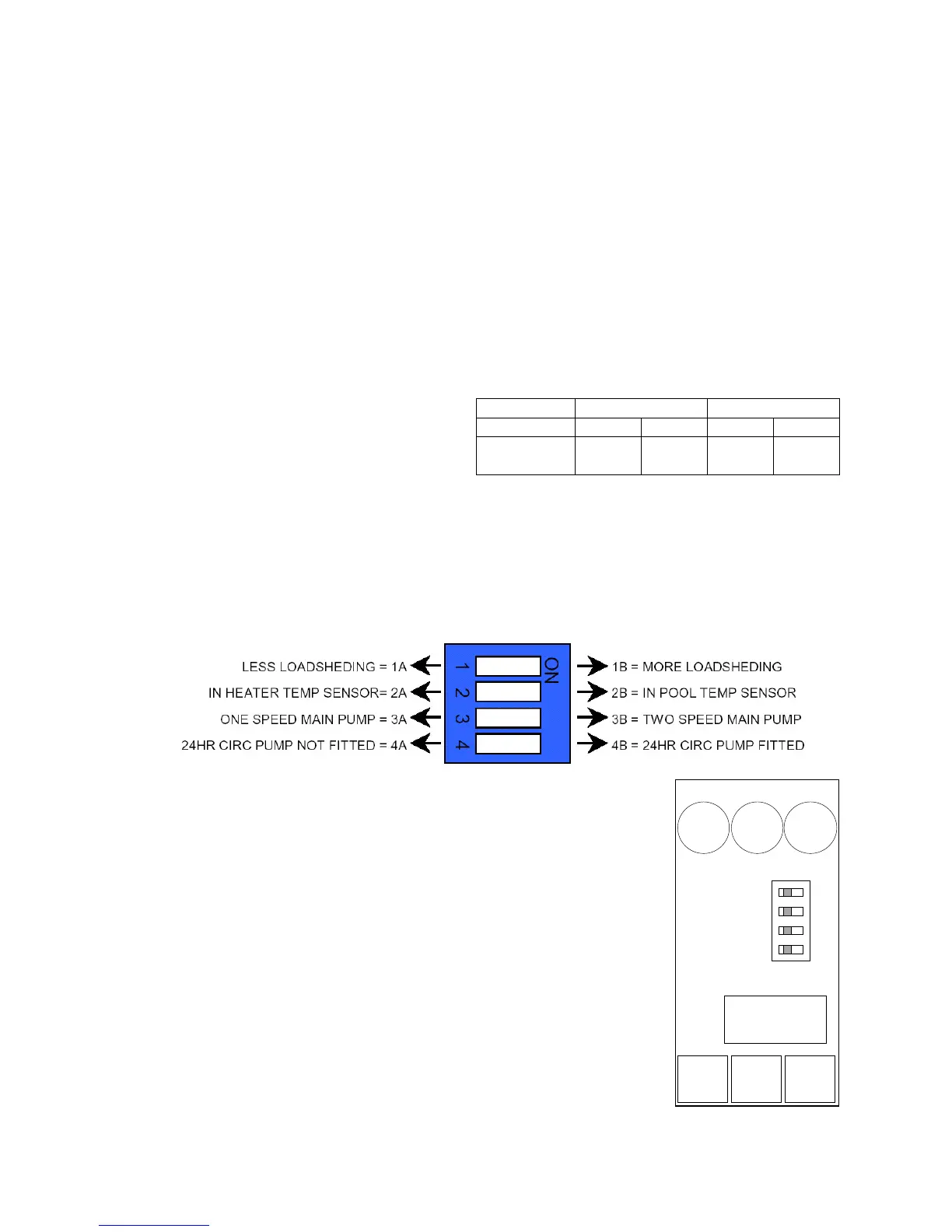

Dip Switch Settings
PCB Sockets
There are three round “mini-din” connectors situated at the top
right of the SP601 PCB. They are provided so that optional
equipment (SPVCL, temp sensor, SPVSB) may be connected to
the system during installation or at a later date. It is important
that the power to the SP601 be disconnected when connecting
or disconnecting any peripheral equipment to reduce ESD or
transient damage to the equipment and also to reduce the risk of
electrocution.
Note that only one temperature sensor should be connected at
any time. Either an ‘in-heater’ temp sensor or an ‘in-pool’ temp
sensor but not both at the same time.
Pump 1 One Speed Two Speed
Circ None Fitted None Fitted
Fit Ozonator to
this socket
Ozone
(1spd)
Ozone
(circ)
Aux
Ozone
(circ)
LED
LIGHT
POOL
TEMP
SENSOR
BLOWER
CONTROL
LOAD SHED -
TEMP SENSE -
MAIN PUMP -
CIRC PUMP -
LESS
HTR
1 SPD
NO
MORE
POOL
2 SPD
YES
POOLSIDE
CONTROL PANEL
(SWITCH)
HEATER
WATER
SENSOR
SLEEP
CONTROL
CLOCK
HEATER
TEMP
SENSOR
DIP SWITCH
SPVCL TEMP SPVSB
