SP601 Specifications and Outlet Loading
Specifications
SP601 dimensions 360mm x 220mm x 95mm
Heater tube pipe diameter 50mm
Heater pressure, max (head of water) 300kPa (30m)
Temp – max controlled 41.5°C
Temp – thermal cut out 50°C +/- 3°C
Temp – max ambient 40°C
Mains cord length 5m
Rectangular Pool side touchpad – face 118mm x 65mm x 6mm
Rectangular Pool side touchpad – body 92mm x 40mm x 17mm

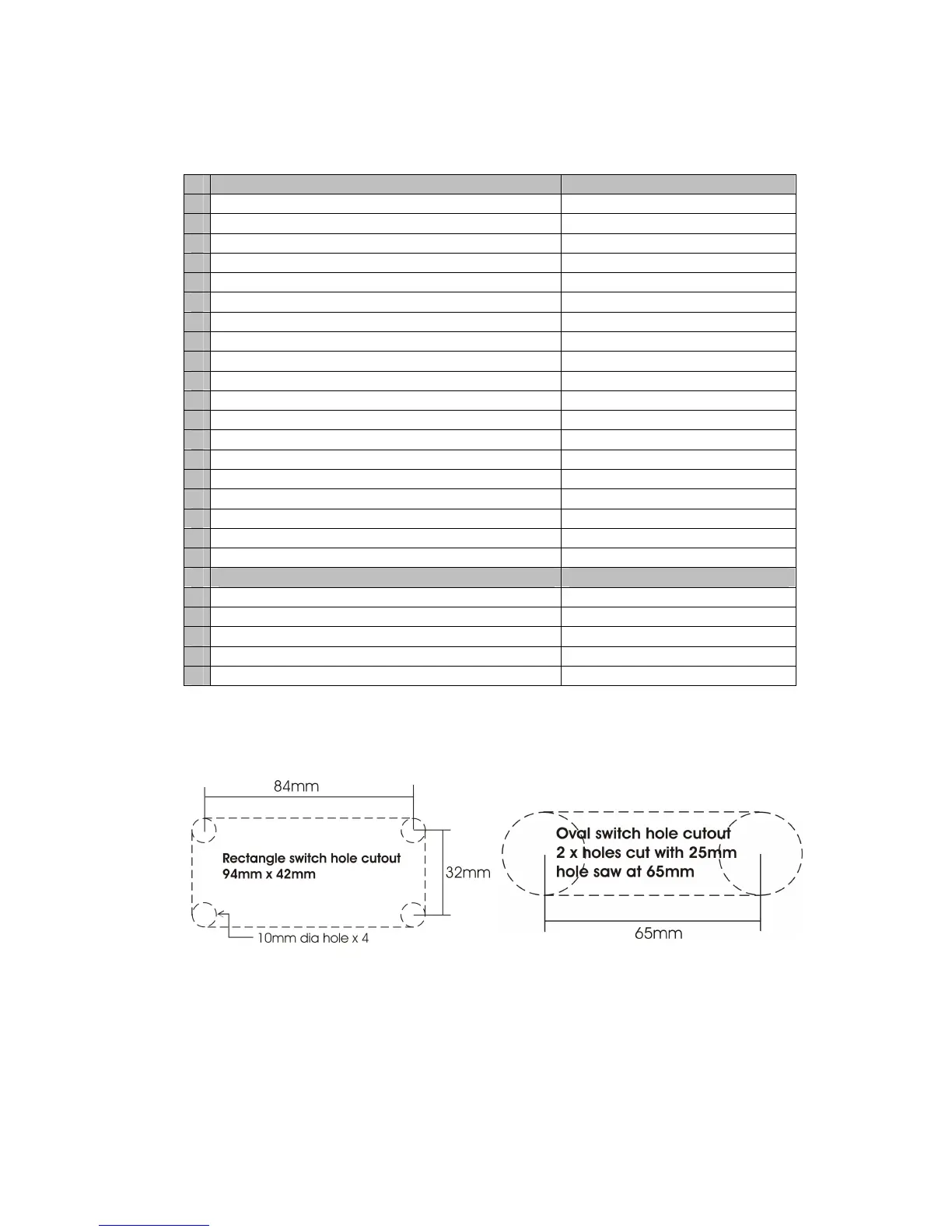

Rectangular Recommended switch hole See diagram
Oval Pool side touchpad - face 112mm x 49mm x 4mm
Oval Pool side touchpad - body 88mm x 22.5mm x 19mm
Oval Recommended switch hole See diagram
Switch lead length 3m
Supply requirements (Max total loading)
1.5kW models 220-240V, AC, 50-60Hz, 10A
2.0kW models 220-240V, AC, 50-60Hz, 15A
3.0kW models 220-240V, AC, 50-60Hz, 15A
Max Outlet Loading 1.5kW, 2.0kW & 3.0kW
Pump socket 220-240V, AC, 50-60Hz, 10A
Aux socket 220-240V, AC, 50-60Hz, 10A
SPVSB 220-240V, AC, 50-60Hz, 7.5A
Circ 220-240V, AC, 50-60Hz, 2.5A
Ozone 220-240V, AC, 50-60Hz, 2.0A
To prevent early system failure the sum of the outlet loadings and heater at any
time should not exceed the ‘Max total load’. Use the loading calculator to check the
system in question.
