Assemble the Backboard
19
F

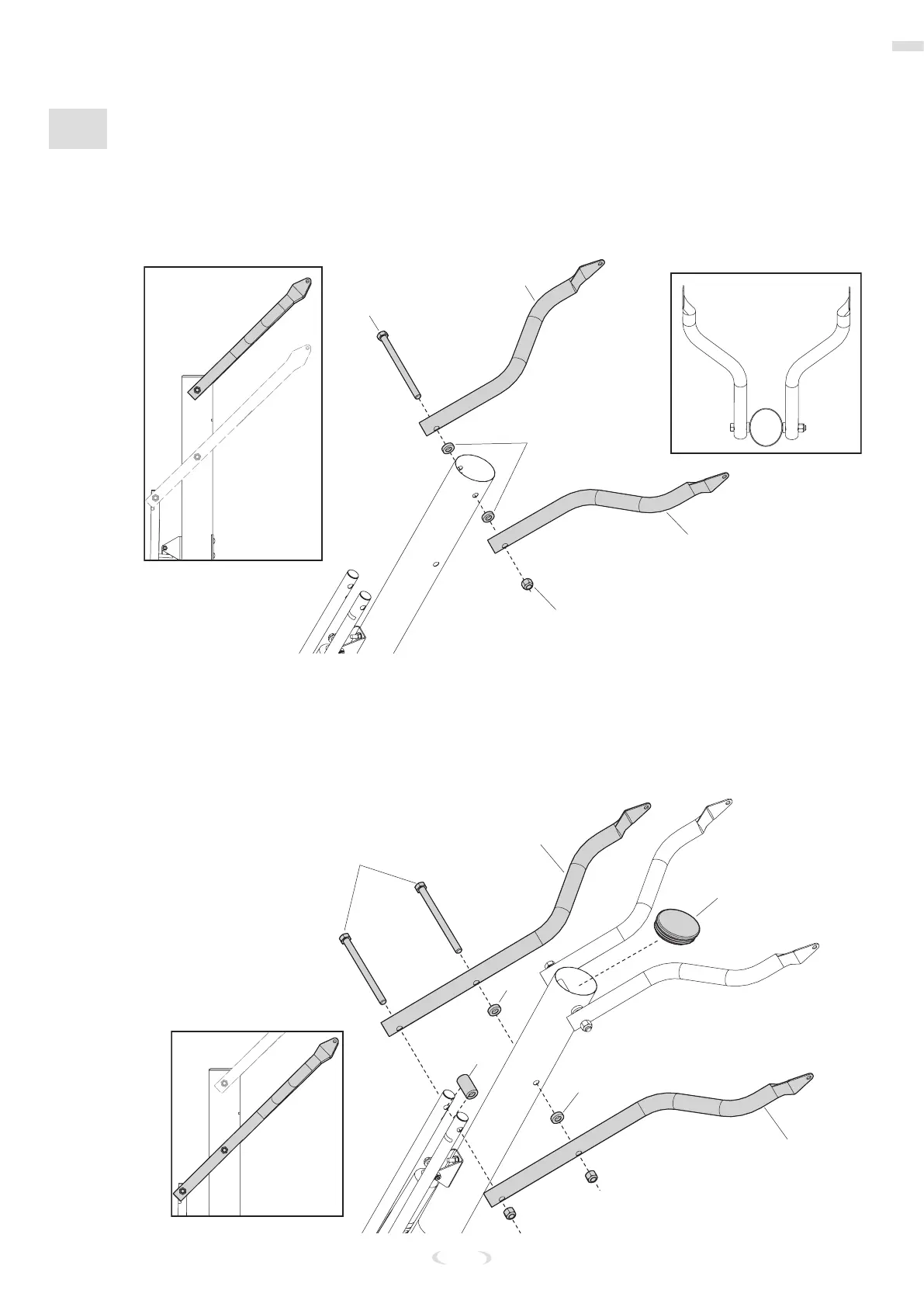

ASSEMBLE THE BACKBOARD
3. Attach the upper elevator tubes (42) to the upper pole section (4) using the bolt (43), spacer (20),
and nut (40).
4. Tighten by hand.
#20
#40
#42
Elevator Tube
Orientation
#43
#42
5. Attach the lower elevator tubes (41) to the upper pole section (4) using the bolt (43), spacer (20),
and nut (40). Tighten by hand.
6. Attach the lower elevator tubes (41) to the gas strut vertical elevator tubes (52) using the bolts
(43), spacers (29), and nuts (40). Tighten by hand.
7. Attach the pole cap (22).
#22
#43
#41
#41
#29
#20
#20
