OPTIONAL ACCESSORIES

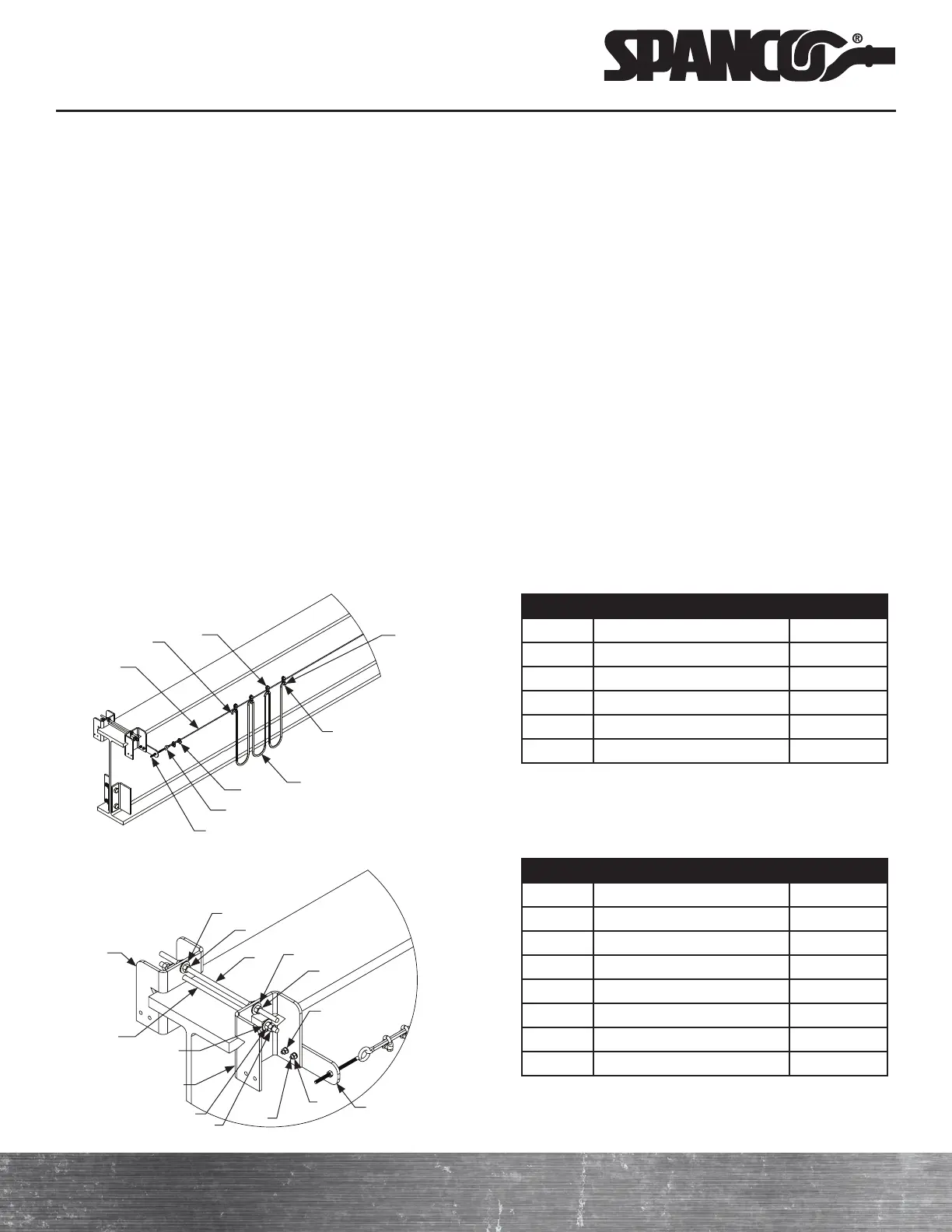

1. Tagline Assembly
Spanco clamp-on tagline assemblies are designed for universal installation. Clamp-on tagline assemblies include universal
weldments, applicable hardware, tagline cable, cable clamps, eyebolts, and pulleys with cable ties. One pulley and cable
tie is provided for every five feet of tagline length. Power conductor is supplied by others.
Installation
a ) Trim excess rod length to fit socket (if desired).
NOTE: Align each rod so only one end requires trimming.
b ) Torque the inner lower rod nuts (9) to 33 foot-pounds. Adjust the inner upper rod nuts (9) to keep the weldments
plumb.
c ) Holding the inner lower rod nuts in place with a wrench, torque the outer lower rod nuts (9) to 33 foot-pounds.
d ) Holding the inner upper rod nuts in place with a wrench, torque the outer upper rod nuts (9) to 33 foot-pounds.
e ) Align the correct holes in the arm plate (11) with the holes in the tagline weldment (7) and insert two hex head bolts
(13) through the holes. Align the arm plate to keep the tagline approximately 10 inches from the face of the beam.
f ) Place a lock washer (12) and nut (14) on each bolt (13). Torque the nuts (14) to 10 foot-pounds.
ITEM DESCRIPTION QUANTITY
1 Cable Clamp 2
2 Tagline Cable 1
3 Eye Bolt 2
4 1/4-Inch Hex Nut 4
5 Pulley X
6 Cable Tie X
1
2
3
4
5
6
Power Conductor
Figure 1
From Supply
To Equipment
ITEM DESCRIPTION QUANTITY
7 Tagline Weldment 2
8 3/8-Inch Threaded Rod 2
9 3/8-Inch Hex Nut 8
10 3/8-Inch Flat Washer 6
11 Arm Plate 1
12 1/4-Inch Lock Washer 2
13 1/4-Inch Hex Head Bolt 2
14 1/4-Inch Hex Nut 2
Note: Only one end of the beam is shown. Total
quantities are doubled.
Figure 2
7
7
8
8
9
10
9
10
10
9
11
12
13
14
9
