A-Series Aluminum Gantry Crane 15
Promise to Perform Industries, Inc.
ITEM DESCRIPTION
3 A-Frame Assembly
4 Caster
7 Lock Washer
8 Flat Washer
9 Hex Nut
10 Hex Bolt

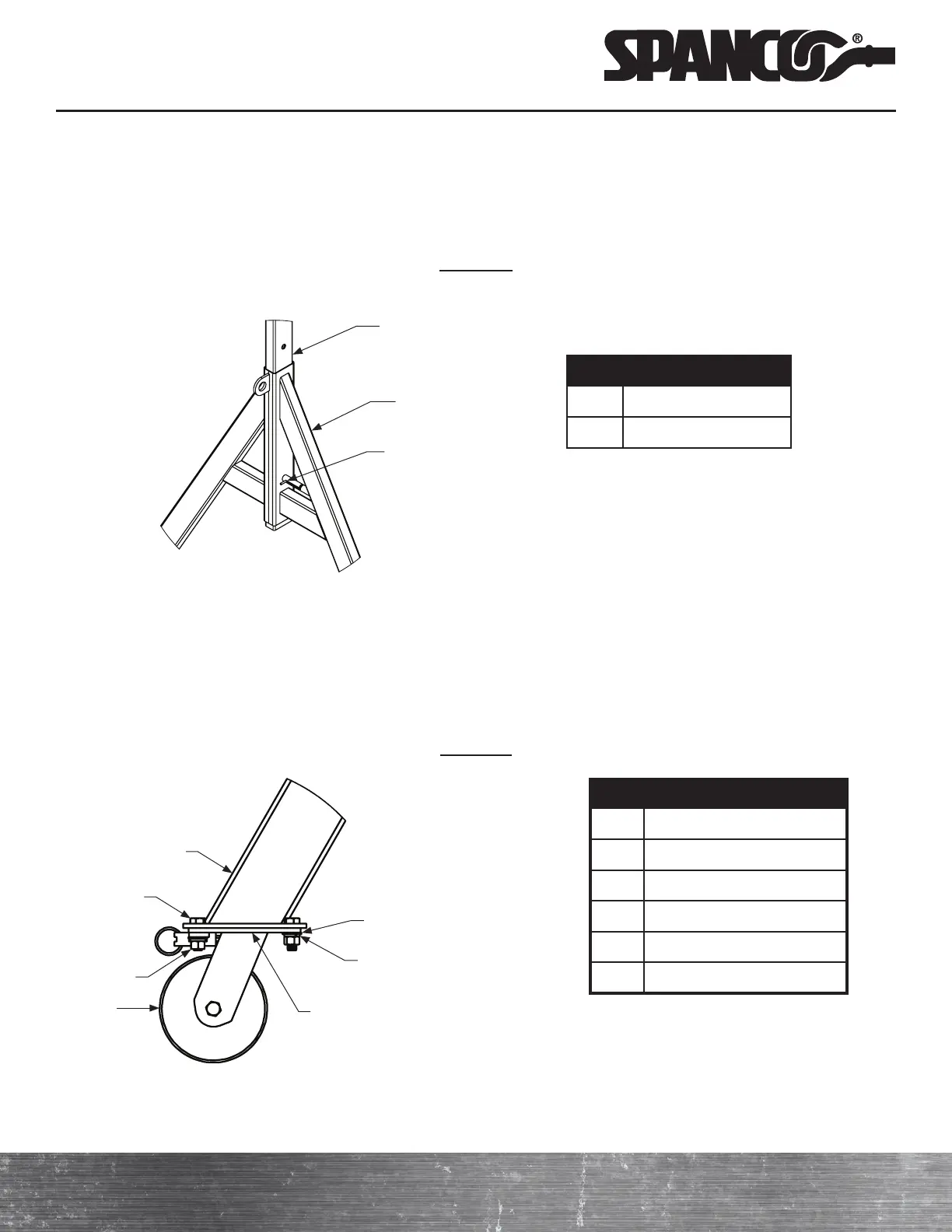

3. Removing the Caster Assemblies from the A-Frame Assemblies
Refer to Detail “B” for Steps A Through C
a ) The casters may be removed from the A-frames if desired. To remove the casters, lay each A-frame on the ground.
b ) Remove the hex nut (9), lock washer (7), and flat washer (8) from each bolt (10) and remove the bolts from the
caster assembly’s top plate and the aligned holes in the A-frame assembly.
Detail “B”
2. A-Frame Disassembly
Refer to A-Series Gantry Crane Assembly Drawing Steps A through B
a ) Disengage the load pin in the A-frame assembly from the upright tube of each A-frame.
b ) Slide the upright tube out of the center tube of each A-frame.
Detail “A”
Caster Assembly's
Top Plate
10
9
8
7
4
3
ITEM DESCRIPTION
2 Upright Tube
3 A-Frame
2
3
Load Pin
