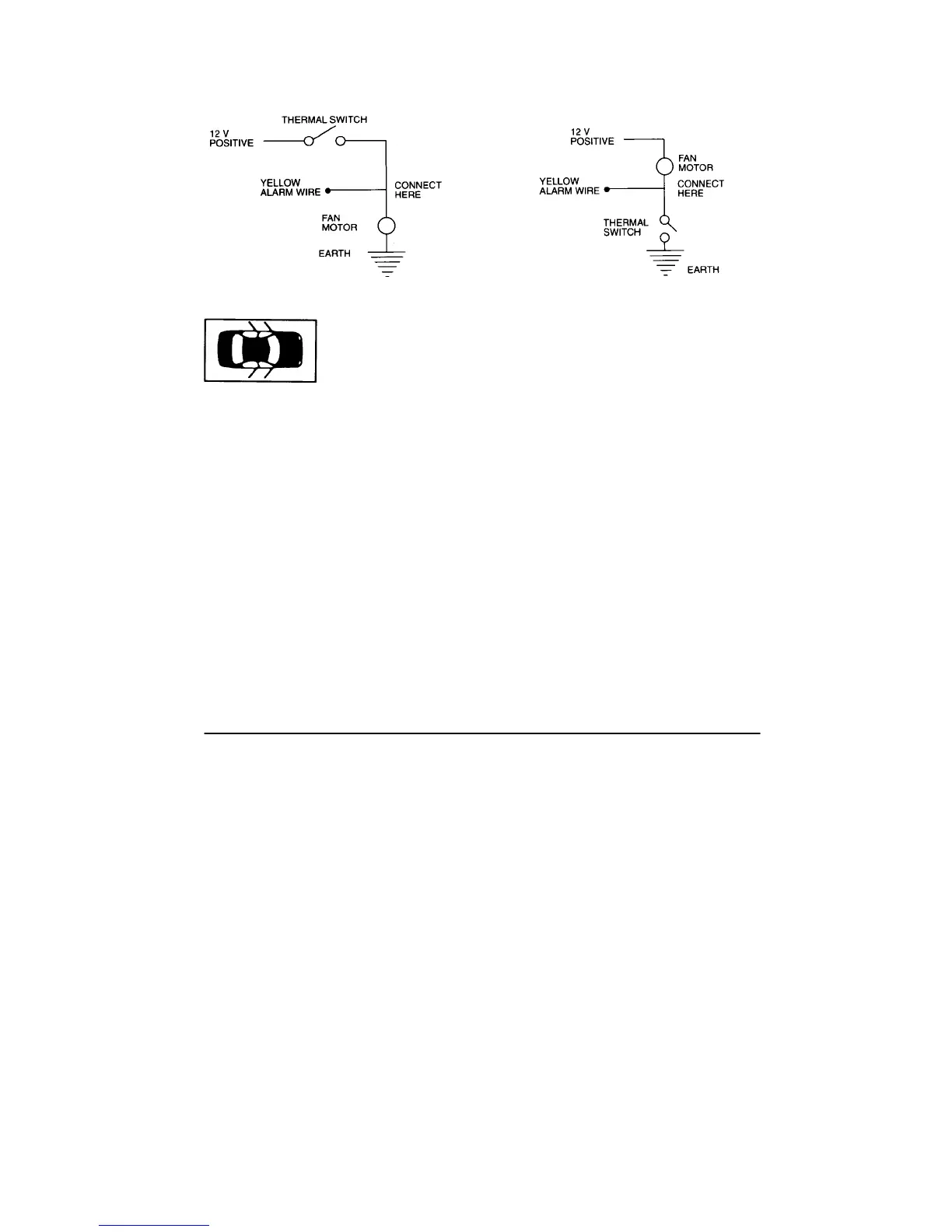

Fig 4
Fig 5
BLUE WIRE-DOOR SWITCH
NOTE: To ensure correct operation of your alarm, the
BLUE wire must be connected prior to
connecting BLACK earth wire or RED main
alarm supply w ire.
Most four door cars operate the courte sy lig ht from all four
doors so connecting the alarm to one door switch will
connect all of the do ors.
The BLUE alarm wire should be connected to the existing
door switches provided they are of the switched earth type.
To determine this, close all doors except the drivers door.
The courtesy light should be on. Remove the retaining
screw from the do or switch and carefully pull out the switch.
If the interior light goes out when the door switch is
removed your existing courtesy light switches are suitable
for direct connection to the BLUE alarm wire.
