SpeakerCraft CS3 User Manual

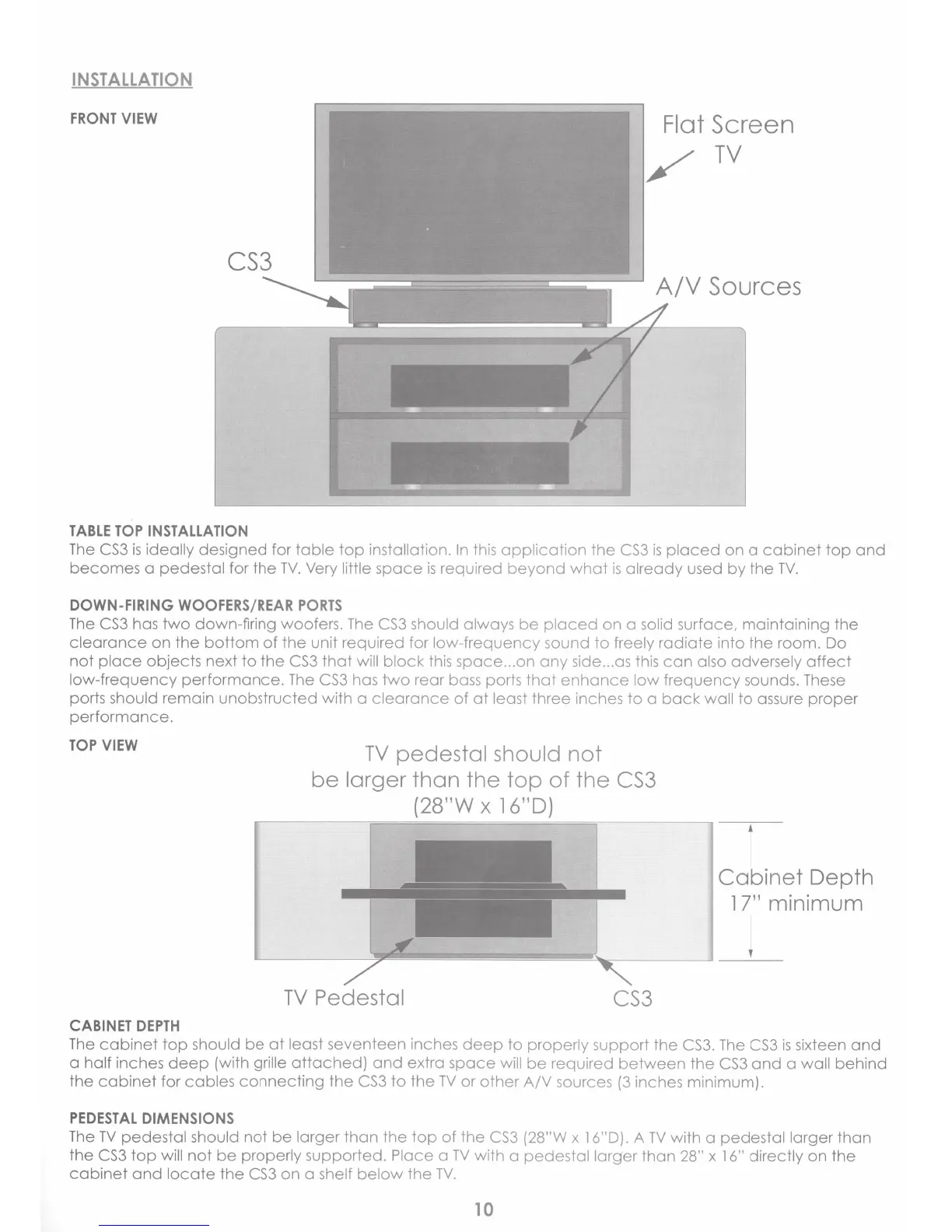

INSTALLATION
FRONT VIEW
Flat Screen
TV
TABLE TOP INSTALLATION
The CS3 is ideally designed for table top installation. In this application the CS3 is placed on a cabinet top and
becomes a pedestal for the TV. Very little space is required beyond what is already used by the TV.
DOWN-FIRING WOOFERS/REAR PORTS
The CS3 has two down-firing woofers. The CS3 should always be placed on a solid surface, maintaining the
clearance on the bottom of the unit required for low-frequency sound to freely radiate into the room. Do
not place objects next to the CS3 that will block this space ... on any side ... as this can also adversely affect
low-frequency performance. The CS3 has two rear bass ports that enhance low frequency sounds. These
ports shouid remain
unobstructed with a clearance of at least three inches to a back wall to assure proper
performa nee.
TOP VIEW
CABINET DEPTH
TV pedestal should not
be larger than the top of the CS3
(28"W X 16"0)
TV Pedestal
CS3
T
Cabinet Depth
1
7" minimum
j
The cabinet top should be at least seventeen inches deep to properly support the CS3. The CS3 is sixteen and
a half inches deep (with grille attached) and extra space will be required between the CS3 and a wall behind
the cabinet for cables connecting the CS3 to the TV or other A/V sources (3 inches minimum).
PEDESTAL DIMENSIONS
The TV pedestal should not be larger than the top of the CS3 (28"W x 16"0). A TV with a pedestal larger than
the CS3 top will not be properly supported. Place a TV with a pedestallarg ·er than 28" x 16" directly on the
cabinet and locate the CS3 on a shelf below the TV.
10
