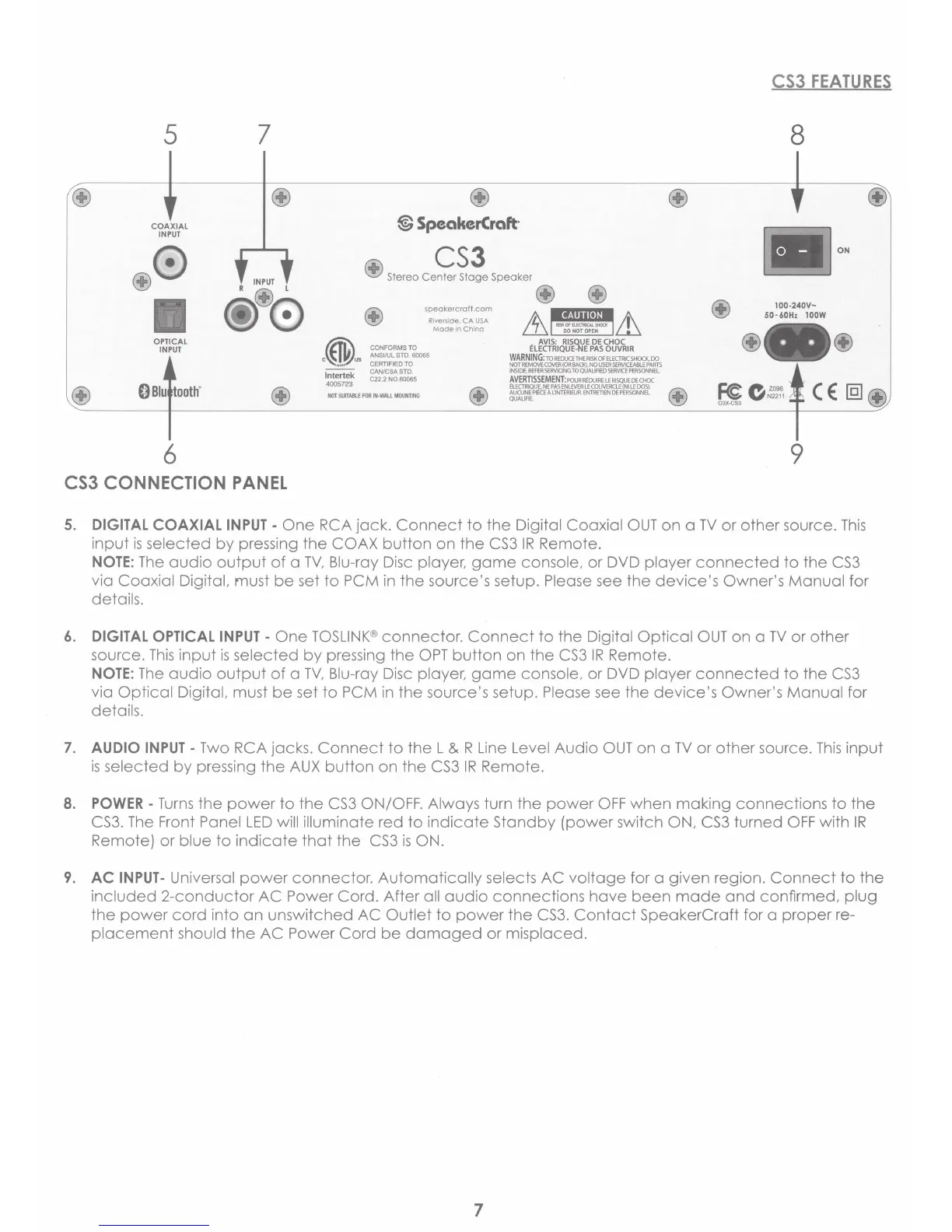

CS3 FEATURES
8
100-240V-
50-60Hz
lOOW
~ ~.ZD96
~ VN2211
03X·CS3
9
ON
CS3 CONNECTION PANEL
5. DIGITAL COAXIAL INPUT- One RCA jock. Connect to the Digital Coaxial OUT on a TV or other source. This
input is selected by pressing the COAX button on the CS3 IR Remote.
NOTE: The audio output of a TV, Blu-roy Disc player, game console, or DVD player connected to the CS3
via Coaxial Digital, must be set to PCM in the source's setup. Please see the device's Owner's Manual for
details.
6. DIGITAL OPTICAL INPUT - One TOSLINK® connector. Connect to the Digital Optical OUT on a TV or other
source. This input is selected by pressing the OPT button on the CS3 IR Remote.
NOTE: The audio output of a TV, Blu-roy Disc player, game console, or DVD player connected to the CS3
via Optical Digital, must be set to PCM in the source's setup. Please see the device's Owner's Manual for
details.
7. AUDIO INPUT- Two RCA jacks. Connect to the L & R Line Level Audio OUT on a TV or other source. This input
is selected by pressing the AUX button on the CS3 IR Remote.
8. POWER - Turns the power to the CS3 ON/OFF. Always turn the power OFF when making connections to the
CS3. The Front Panel LED will illuminate red to indicate Standby (power switch ON, CS3 turned OFF with IR
Remote) or blue to indicate that the CS3 is ON.
9. AC INPUT- Universal power connector. Automatically selects AC voltage for a given region. Connect to the
included 2-conductor AC Power Cord. After all audio connections hove been made and confirmed, plug
the power cord into an unswitched AC Outlet to power the CS3. Contact SpeokerCraft for a proper re-
placement should the AC Power Cord be damaged or misplaced.
