SpeakerCraft CS3 User Manual

CS3

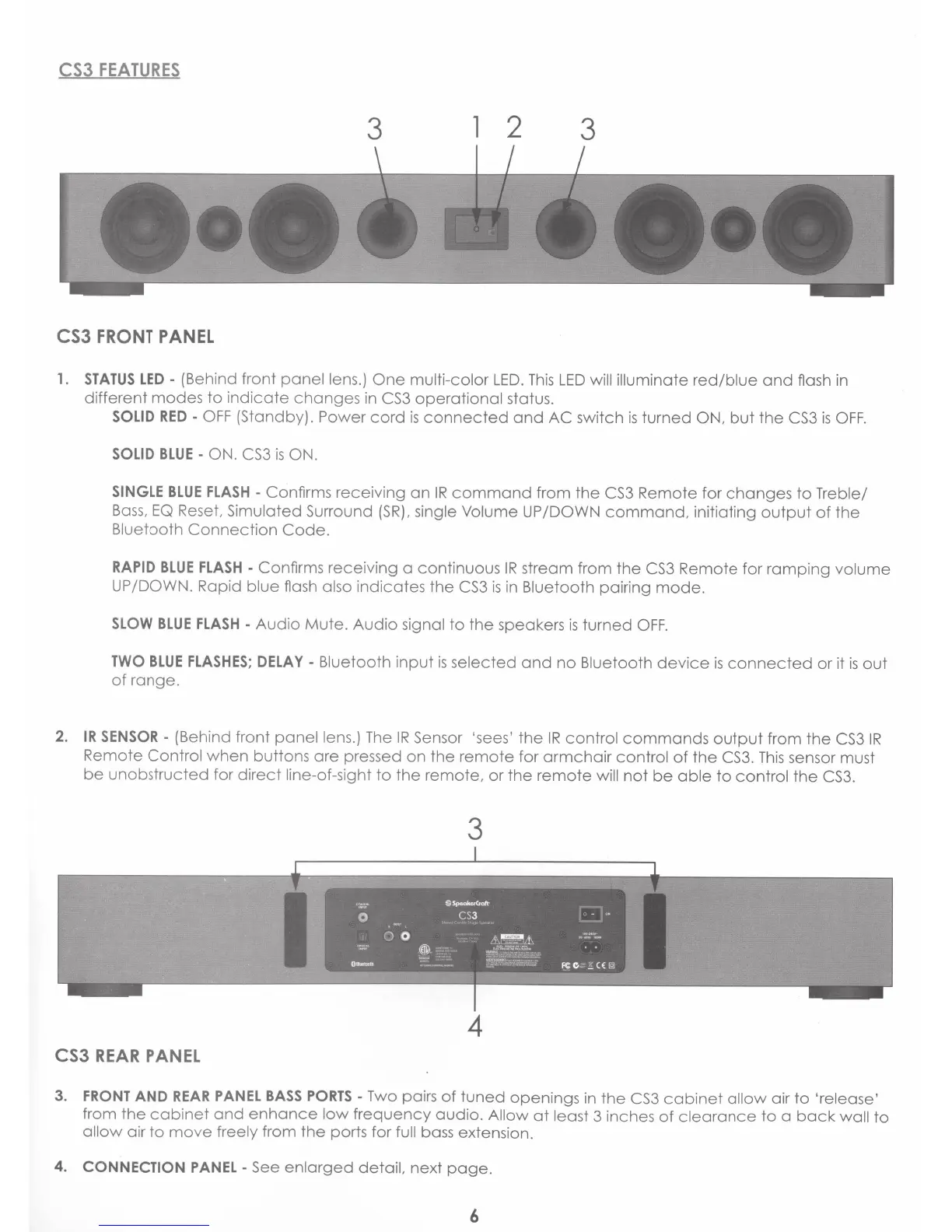

FEATURES
3
1 2
3
CS3
FRONT
PANEL
1.
STATUS
LED
-
(Behind front
panel
lens.)
One
multi-color
LED.
This
LED
will illuminate
red/blue
and
flash
in
different
modes
to
indicate
changes
in
CS3
operational
status.
SOLID
RED
-
OFF
(Standby).
Power
cord
is
connected
and
AC
switch
is
turned
ON,
but
the
CS3
is
OFF.
SOLID
BLUE
-
ON.
CS3
is
ON.
SINGLE
BLUE
FLASH
- Confirms
receiving
an
IR
command
from
the
CS3
Remote for
changes
to
Treble/
Bass,
EQ
Reset,
Simulated
Surround
(SR),
single Volume UP/DOWN
command,
initiating
output
of
the
Bluetooth
Connection
Code.
RAPID
BLUE
FLASH
-
Confirms
receiving
a continuous
IR
stream from
the
CS3
Remote
for
ramping
volume
UP/DOWN.
Rapid
blue
flash
also
indicates
the
CS3
is
in
Bluetooth
pairing
mode.
SLOW
BLUE
FLASH-
Audio
Mute.
Audio
signal
to
the
speakers
is
turned
OFF.
TWO
BLUE
FLASHES;
DELAY
-
Bluetooth
input
is
selected
and
no
Bluetooth
device
is
connected
or it
is
out
of
range.
2.
IR
SENSOR-
(Behind front
panel
lens.) TheIR
Sensor 'sees'
theIR
control
commands
output
from
the
CS3
IR
Remote
Control
when
buttons are pressed on
the
remote
for
armchair
control
of
the
CS3.
This
sensor must
be
unobstructed
for
direct
line-of-sight
to
the
remote,
or
the
remote
will
not
be
able
to
control
the
CS3.
3
4
CS3
REAR
PANEL
3.
FRONT
AND
REAR
PANEL
BASS
PORTS
-Two
pairs
of
tuned
openings
in
the
CS3
cabinet
allow
air
to
'release'
from
the
cabinet
and
enhance
low
frequency
audio.
Allow
at
least
3 inches
of
clearance
to
a
back
wall
to
allow
air
to
move
freely
from
the
ports for
full
bass extension.
4.
CONNECTION
PANEL-
See
enlarged
detail,
next
page.
6

SpeakerCraft CS3 Specifications

General

Brand	SpeakerCraft
Model	CS3
Category	Speakers
Language	English
