SpeakerCraft CS3 User Manual

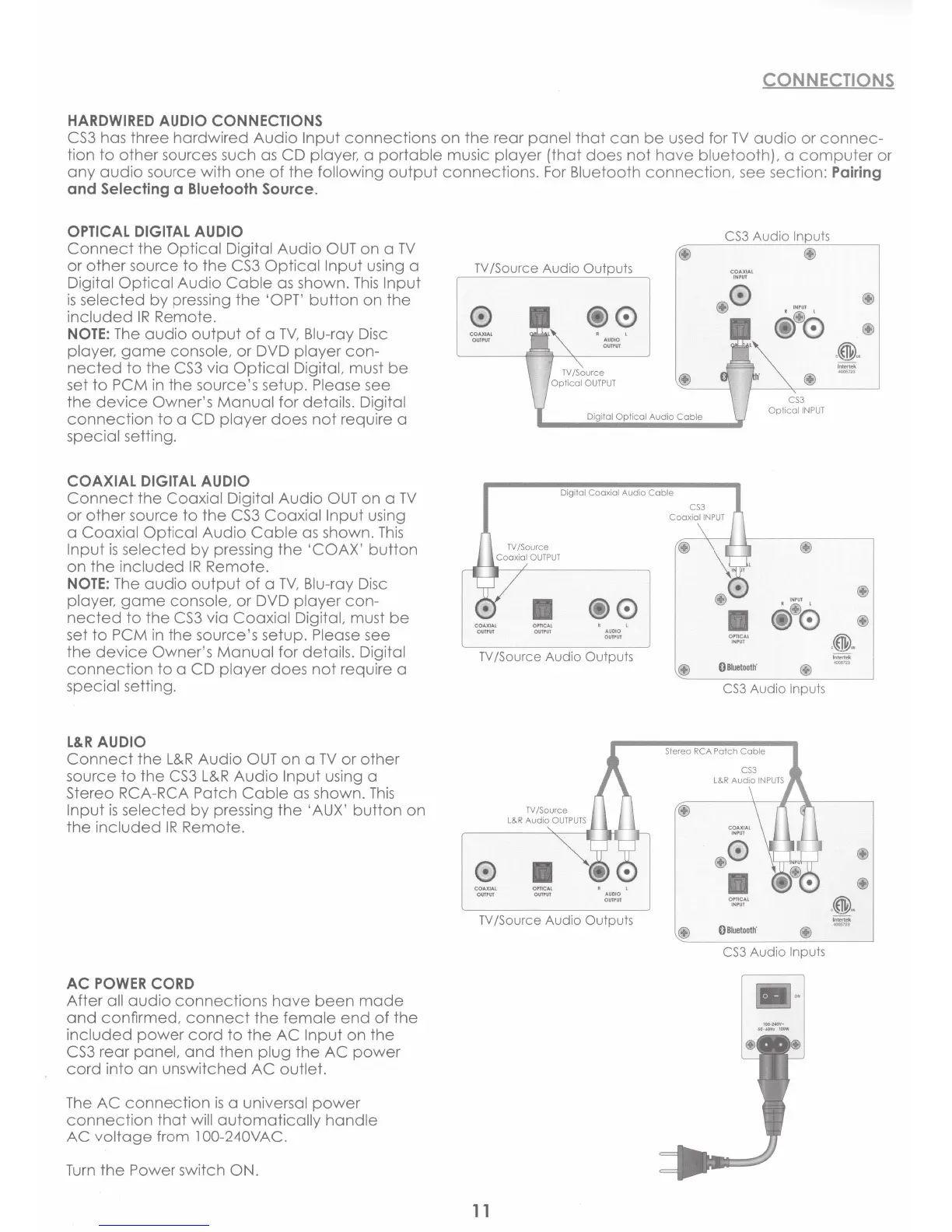

CONNECTIONS
HARDWIRED AUDIO CONNECTIONS
CS3 has three hardwired Audio Input connections on the rear panel that can be used for TV audio or connec-
tion to other sources such as CD player, a portable music player (that does not have bluetooth), a computer or
any audio source with one of the following output connections. For Bluetooth connection, see section: Pairing
and Selecting a Bluetooth Source.
OPTICAL DIGITAL AUDIO
Connect the Optical Digital Audio OUT on a TV
or other source to the CS3 Optical Input using a
Digital
Optical Audio Cable as shown. This Input
is selected by pressing the 'OPT' button on the
included IR Remote.
NOTE: The audio output of a TV, Blu-ray Disc
player,
game console, or DVD player con-
nected to the CS3 via Optical Digital, must be
set to PCM in the source's setup. Please see
the device Owner's Manual for details. Digital
connection to a CD player does not require a
special setting.
COAXIAL DIGITAL AUDIO
Connect the Coaxial Digital Audio OUT on a TV
or other source to the CS3 Coaxial Input using
a Coaxial
Optical Audio Cable as shown. This
Input is selected by pressing the 'COAX' button
on the included IR Remote.
NOTE: The audio output of a TV, Blu-ray Disc
player,
game console, or DVD player con-
nected to the CS3 via Coaxial Digital, must be
set to PCM in the source's setup. Please see
the device Owner's Manual for details. Digital
connection to a CD player does not require a
special setting.
L&R AUDIO
Connect the L&R Audio OUT on a TV or other
source to the CS3 L&R Audio Input using a
Stereo RCA-RCA Patch
Cable as shown. This
Input is selected by pressing the 'AUX' button on
the included IR Remote.
AC POWER CORD
After all audio connections have been made
and confirmed, connect the female end of the
included power cord to the AC Input on the
CS3 rear panel, and then plug the AC power
cord into an unswitched AC outlet.
The AC connection is a universal power
connection that will automatically handle
AC voltage from 1 00-240VAC.
Turn the Power switch ON.
TV /Source Audio
0
COAXIAl
OUTPUT
@0
AUDIO
OUTPUT
CS3 Audio In uts
COAXIAL
I NPUT
O pt ic al Audio Cable
Digi ta l Coaxial Audio Cable
CS3
@
@
@
II
@0
II
@@0
COAXIAL Ol'llCAL
OUTPUT OUTPUT
AUDIO
OUTPUT
OPTICAL
INPUT
TV /Source Audio Outputs
0 Bluetooth '
@ @
CS3 Audio Inputs
Stereo RCA Patch Cable
0 II
COAXIAL
OUTPUT
OPTICAL
OUTPUT
AUDIO
O UTPUT
TV /Source Audio Outputs
11
COA XI Al
INPUT
@0
II
OPTICA L
IN PUT
@ 0 Bluetooth '
CS3 Aud io Inputs
, <@ ~
' =r;:
, (@ w
=e:
@
@
@
@
