Specim FX17 User Manual

| Installation Guide | 12

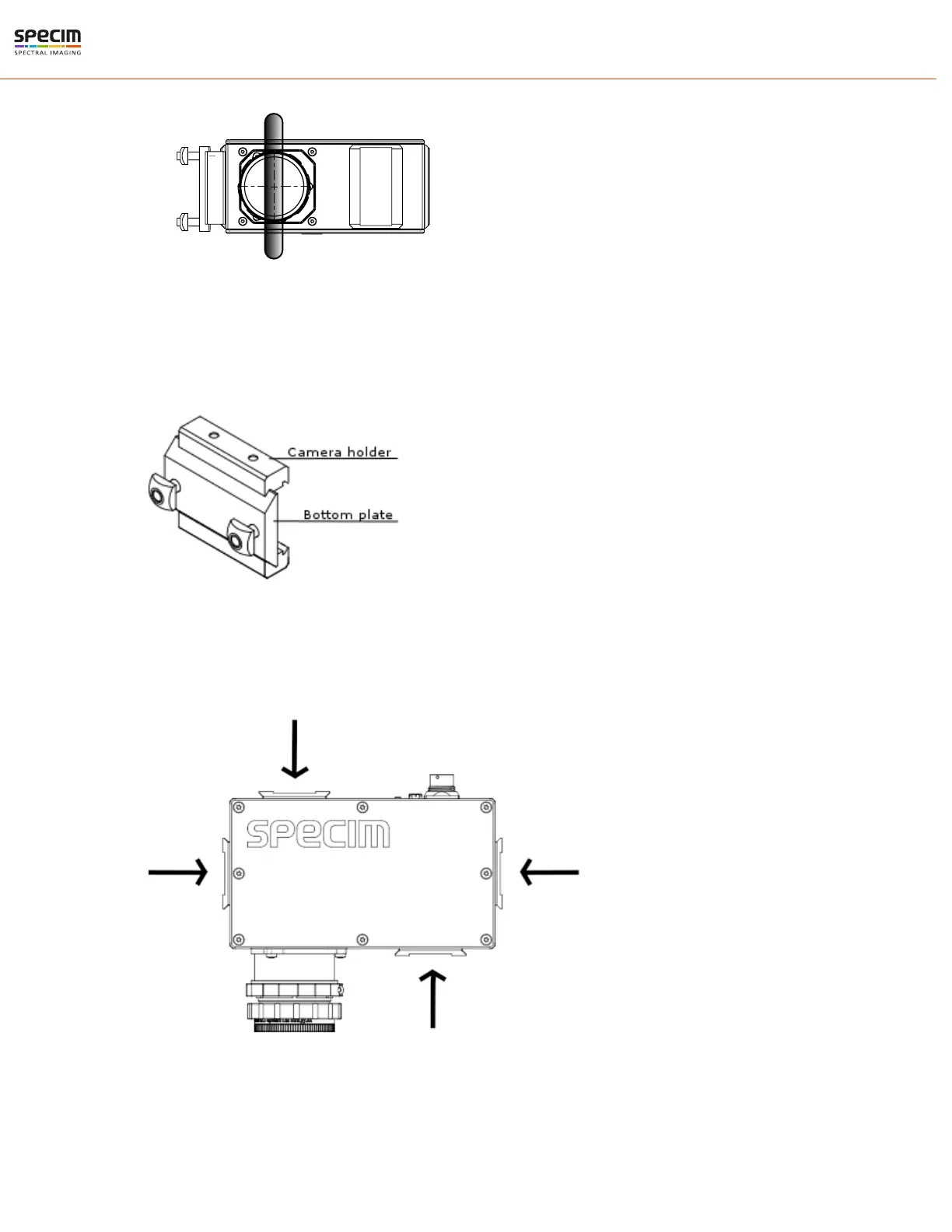

Figure 4: Slit orientation
1.
Attach the mounting kit bottom plate.
2.
Slide the camera holder part to the mounting kit bottom plate.
Figure 5: Mounting Kit parts
3.
Slide the camera dovetails to the camera holder.
Figure 6: Dovetail joints for the Mounting Kit
