| Functionality | 22

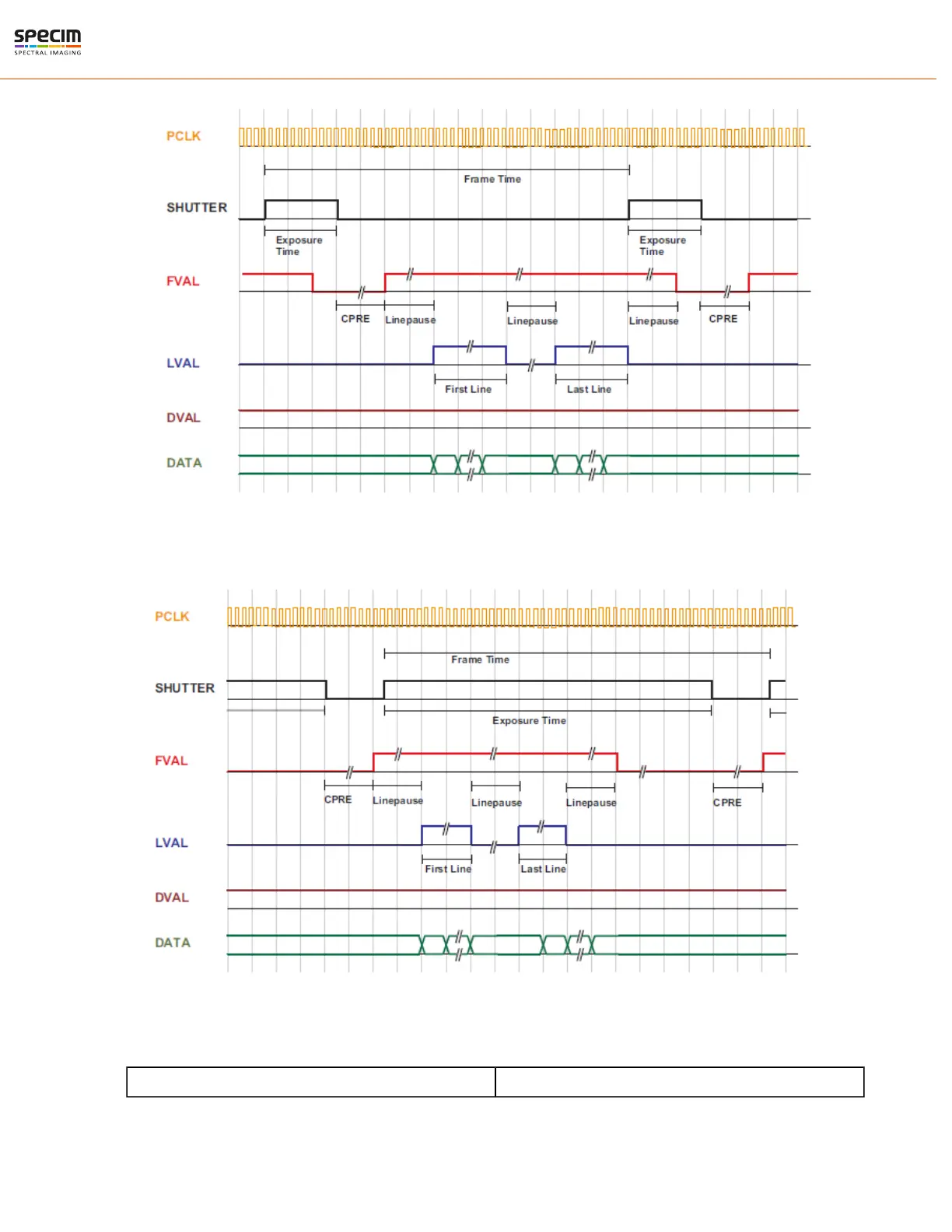

Figure 20: Timing diagram of simultaneous readout mode (readout time is greater than exposure
time)
Figure 21: Timing diagram simultaneous readout mode (readout time is less than exposure time)
Table 4: Explanation of control and data signals used in the timing diagram
Frame time Frame time is the inverse of the frame rate.
