COVERT
Enable/disable display of the specified video channel in live display.
VIDEO OUTPUT
(VGA)
D4RS/D4WRS

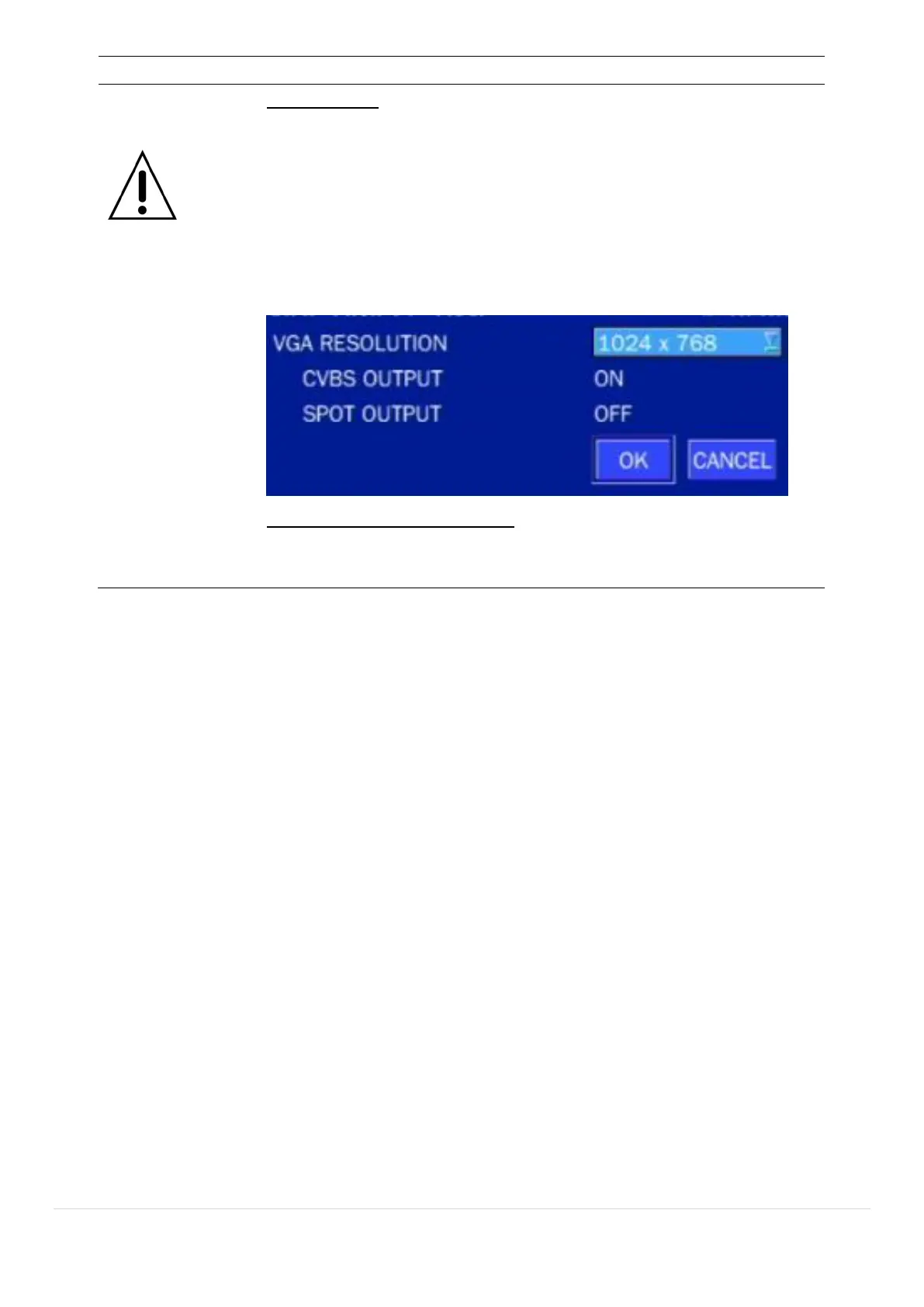

When VGA REOSLUTION is set at 1024 x 768,
 CVBS OUTPUT(Simultaneous Video Output): ON
 SPOT OUTPUT: OFF
When VGA RESOLUTION is set as 1280 x1024,
 CVBS OUTPUT(Simultaneous Video Output): OFF
 SPOT OUTPUT: ON
D8RS/D16RS/D8WRS/D16WRS
CVBS1: Composite Video Output
CVBS2: Spot-Out port
