Spectra Precision QuickMark Layout QML800 User Manual

BuildView Office
Create Control Lines
Control Line Offset Distance
Create Reference Lines.
Useful to create control points locations
Reference Line Offset Distance
Create Points
These functions can be used to create control lines, control points and other points to be
laid out
38

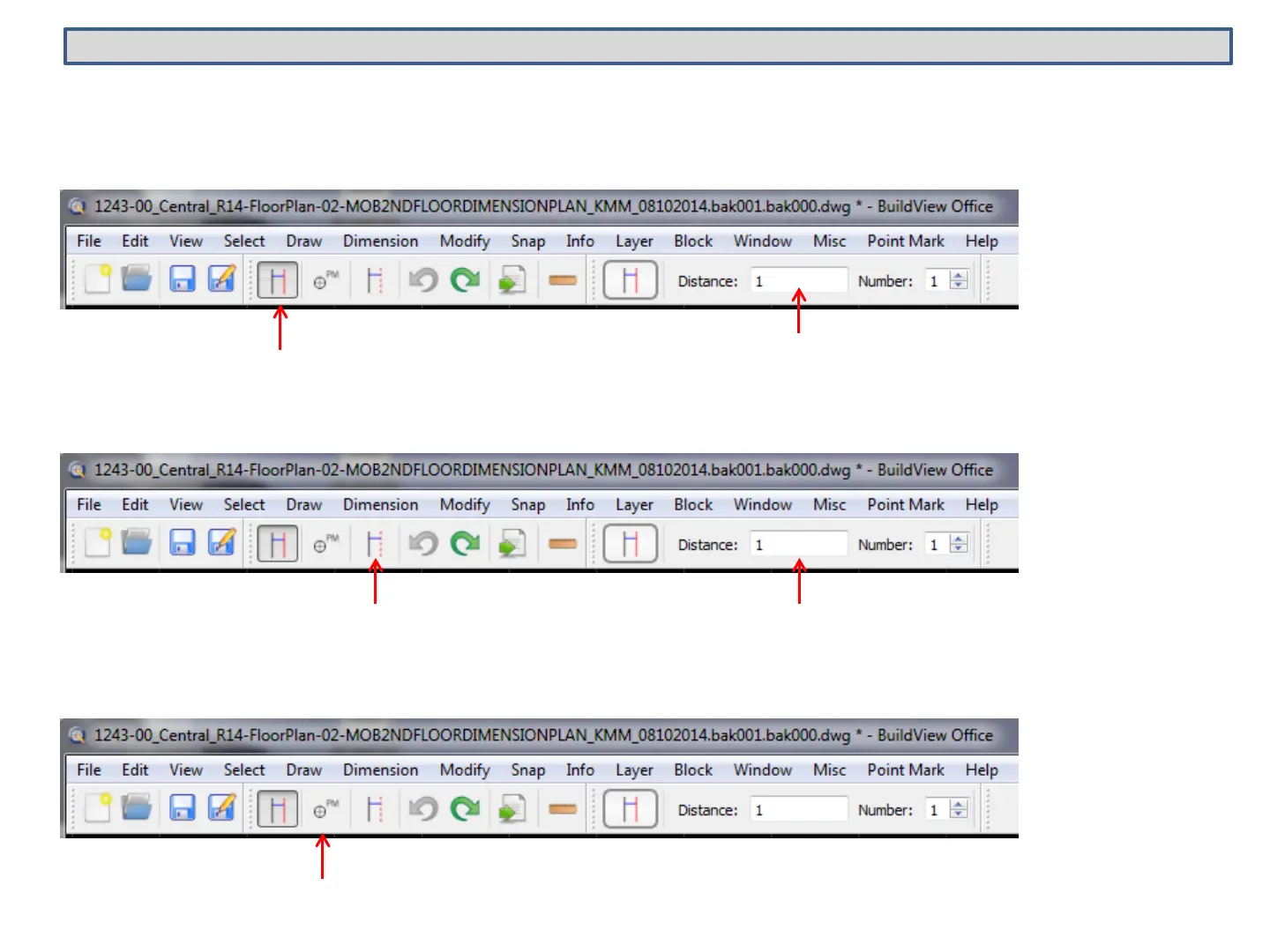

Control Lines: tap “Control line”, input offset distance, tap on entity to offset, select which side to offset
Reference Lines: tap “Reference line”, input offset distance, tap on entity to offset, select which side to offset
Points: tap “Point Mark”, zoom in, tap on intersection or location to place a point
