The TSync-PCIe board is shipped with the 1/2 height backplane pre-installed. Follow the pro
cedure outlined below to install a full height backplane, if so required.

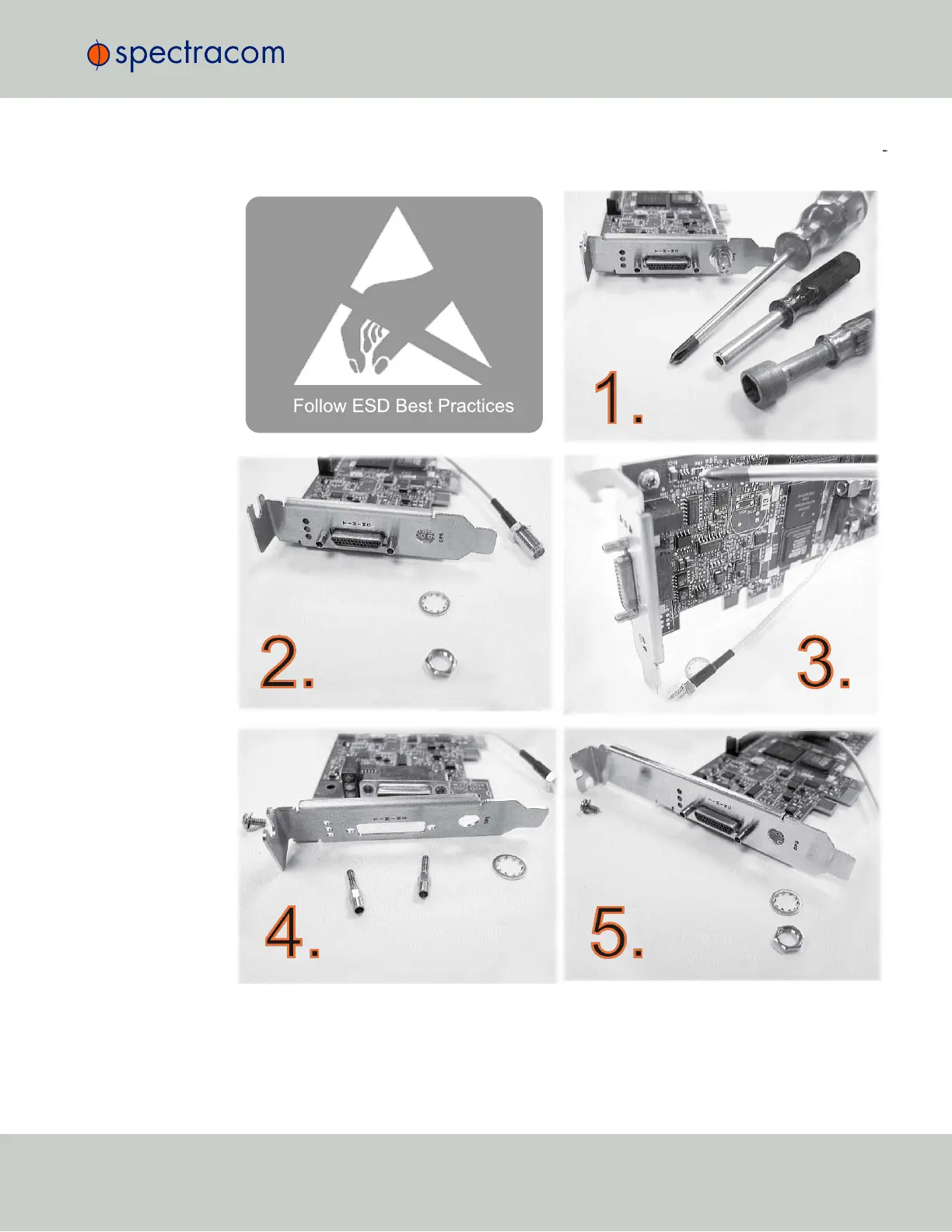

Figure 5-1: Changing the board bracket
5.2 Changing the Board Bracket
CHAPTER 5 • Instruction Manual XYZ Rev. R
23
