Base Station Synchronization Status

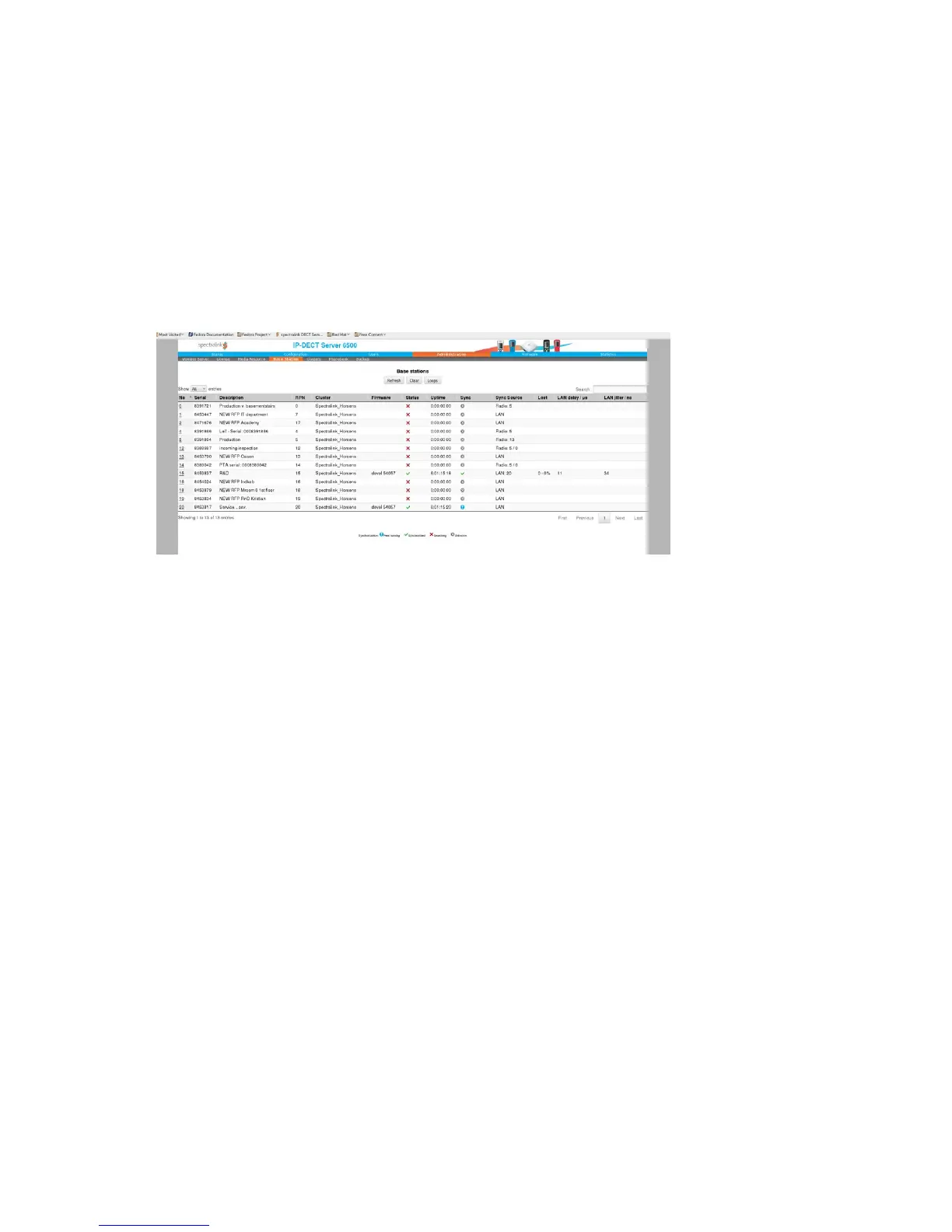

The synchronization status is displayed on the Spectralink server'sweb based Administration Page
under Administration > Base Stations.
The Sync column displays a green icon for base stations that are currently running as slaves and a
blue one for the current master.
The Lost column displays the number of times the synchronization has been lost and a percentage
which is the ratio of time the base station has been without synchronization. The lost counter must be
low but is expected to grow slowly over time. The percentage will start high and must be zero after
some time.
Spectralink IP-DECT Server 400/6500 and DECT Server 2500/8000 Synchronization and Deployment Guide
