RECEIVER COMPATIBILITY
The DX4S transmitter is compatible with Spektrum DSMR, DSM
®
, DSM2
®
, and Marine surface receivers. The SR410 DSMR
receiver is only compatible with DSMR transmitters.
Install the receiver in your vehicle using double-sided foam servo tape. Foam servo tape holds the receiver in place and
protects the receiver from vibration. Position the antenna vertically and away from the vehicle in an antenna tube. The SR410
has a coax style antenna. The last 31mm of the antenna is the portion that receives the signal from the transmitter.
NOTICE: Do not cut or bend the antenna or it could become damaged.
Battery
To Motor
Electronic
Speed Control
Receiver
Steering Servo
Receiver
Steering Servo
Throttle Servo
Battery

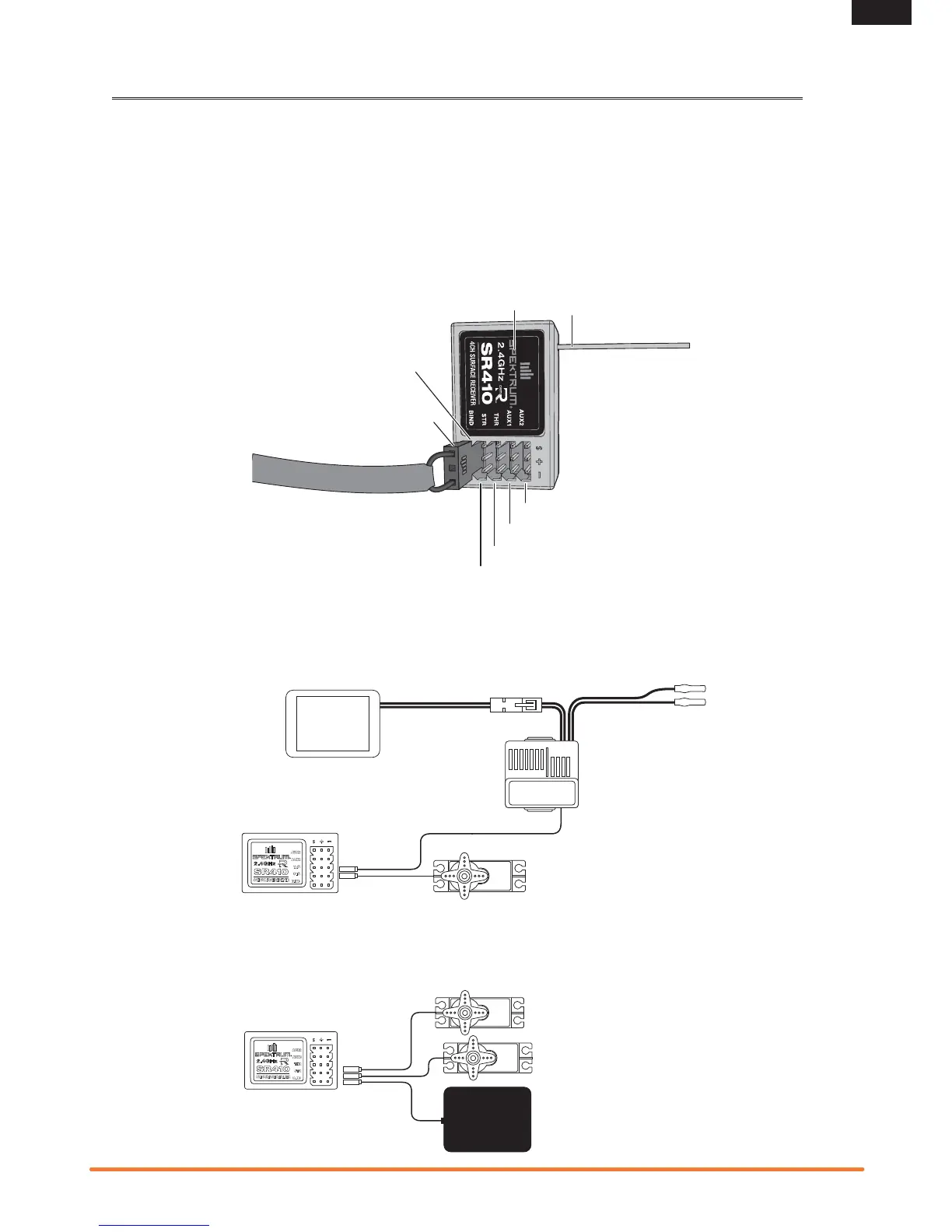

Electric Vehicle Installation
Typical Nitro Vehicle Installation
Aux 1 Port
Aux 2 Port
Antenna
LED
Bind Plug
Bind/Battery Port
Steering Port
Throttle Port
