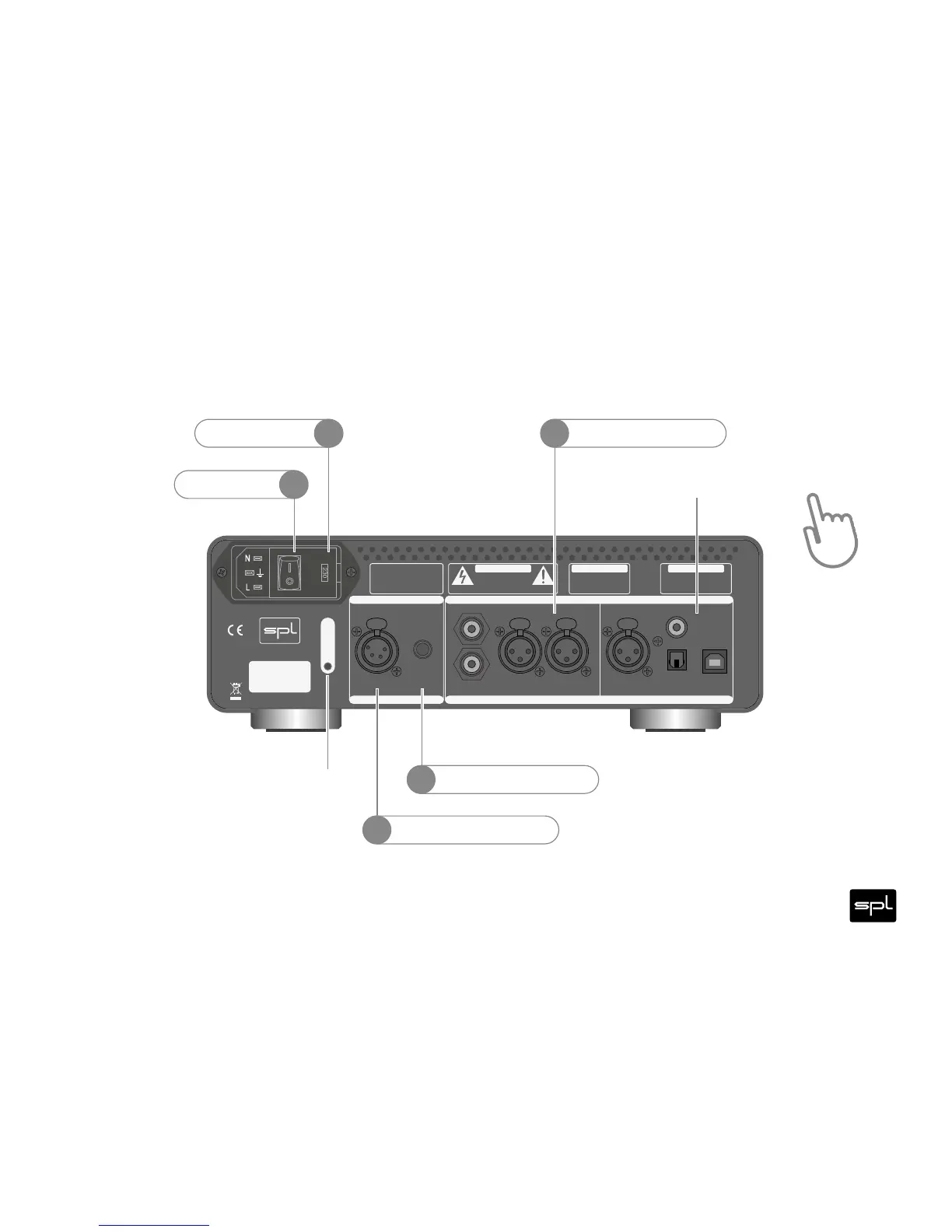

SPL Phonitor xe - Rear View

6
Rear view
Rear view
optional
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 45 W
RL
LR
USBOPTICAL
COAX
Phonitor xe
Serial
Number
Made in Germany
PGM
VOLUME
Refer to
Manual
IR
AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Fuses:
Voltage Selection:
230V AC: T 500 mA L 250 V
115V AC: T 1 A L 250 V
1. Remove Fuse Holder
2. Exchange Fuses
3. Flip Over 4. Reinstall
XLRs: balanced, Pin 2 = Hot (+)
For unbalanced operation
bridge Pin 3 to GND.
RCAs: Unbalanced, Tip = Hot (+)
WIRING
ON BOTTOM SIDE:
DIP SWITCHES
1 ON: HP Out +22dB
2 ON: RCA -10dBV to 0dBu
ANALOG SOURCES DIGITAL SOURCES
ANALOG SOURCES DIGITAL SOURCES
HEADPHONES OUTPUTS
HEADPHONES OUTPUTS
AES
R
L
StandardBalanced
Mains Switch
14
Mains Voltage
15
Analog Audio Inputs
16
Balanced Headphone
19
Standard Headphone
20
